OEM Parts Can-Am Amplifier Box / Cdi
Can-Am

Can-Am - Amplifier Box / Cdi - 420664285

Check if this part fits your Can-Am model

Manufacturer

Brand New, Genuine Can-Am Part

Manufacturer Part#

420664285

Item Number

OEM614432

Note

409012100, 710000402, 710000503 SOLD SEPARATELY

This Part Replaces

711664280, 420664280

Adept Powersports currently does not sell Can-Am parts.

Information is available for reference only at this time.

Special order item

This item is a non-returnable special order item that has to be ordered from the manufacturer warehouse. Once ordered, the order for this item cannot be canceled, and all sales are final.

Please note that this item is not returnable. It cannot be returned for a refund or store credit. It cannot be exchanged for another item.

I understand, add to cart

Product Details

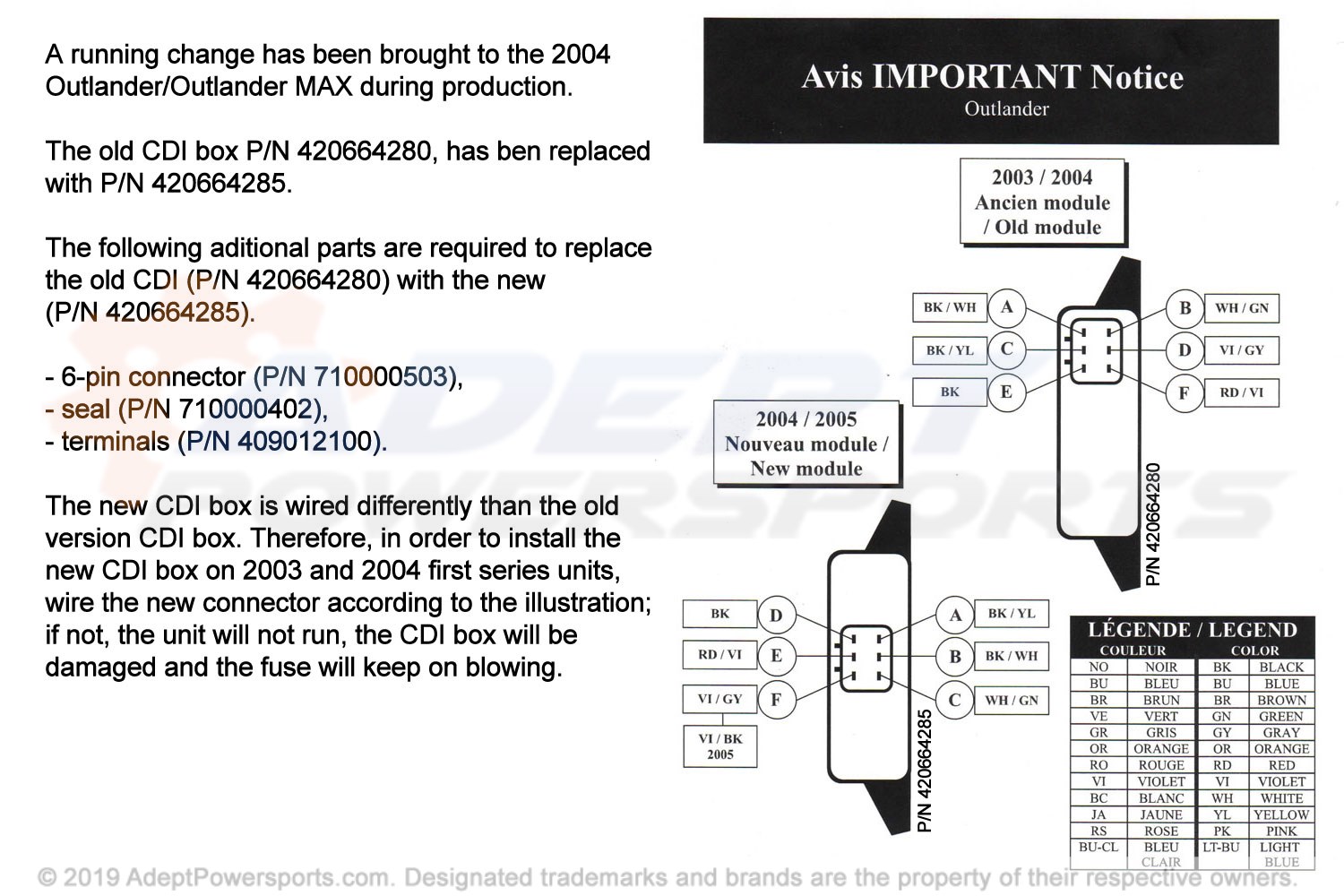

A running change has been brought to the 2004 Outlander/Outlander MAX during production.

The old CDI box P/N 420664280, has ben replaced with P/N 420664285.

The following aditional parts (sold separately) are required to replace the old CDI (P/N 420664280) with the new (P/N 420664285).
- 6-pin connector (P/N 710000503),
- seal (P/N 710000402),
- terminals (P/N 409012100) (6).

The new CDI box is wired differently than the old version CDI box. Therefore, in order to install the new CDI box on 2003 and 2004 first series units, wire the new connector according to the illustration above; if not, the unit will not run, the CDI box will be damaged and the fuse will keep on blowing.

This part is utilized in 30 assemblies

2003 Can Am Outlander 400 STD

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2004 Can Am Outlander 330/400 STD 2 X 4

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2004 Can Am Outlander 330/400 STD 4 X 4

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2004 Can Am Outlander 400 STD

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2004 Can Am Outlander MAX 400 STD & XT

01 - Engine

This part is number 3 on this diagram
Quantity required per assembly: 1

2004 Can Am Outlander MAX 400 STD & XT

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2005 Can Am Outlander 330/400 STD 2 X 4

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2005 Can Am Outlander 330/400 STD 4 X 4

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2005 Can Am Outlander 400 STD

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2005 Can Am Outlander MAX 400 STD & XT

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2006 Can Am Outlander 400 STD

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2006 Can Am Outlander MAX 400 STD & XT

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2007 Can Am Outlander 400 STD

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2007 Can Am Outlander MAX 400 STD & XT

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2008 Can Am Outlander 400 STD

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1

2008 Can Am Outlander MAX 400 STD & XT

03 - Magneto

This part is number 17 on this diagram
Quantity required per assembly: 1
