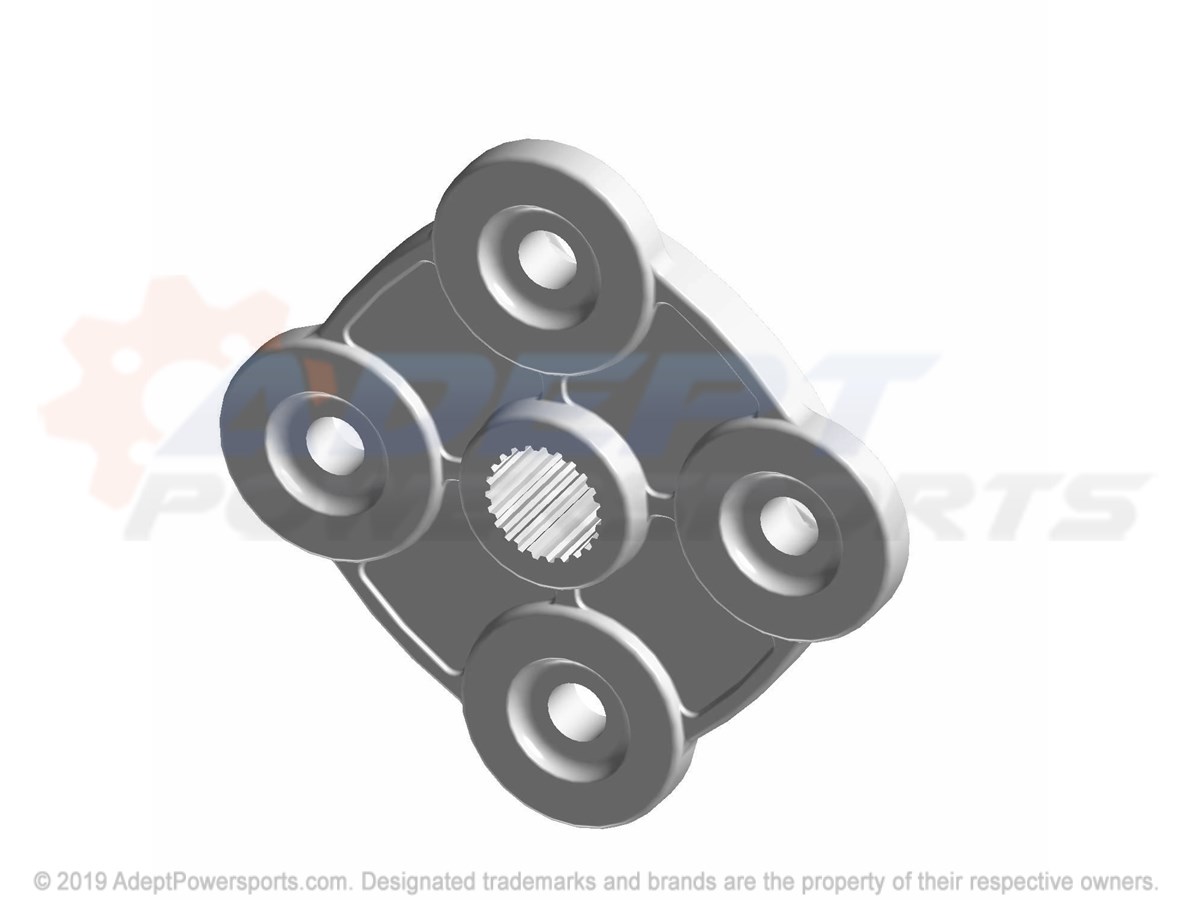

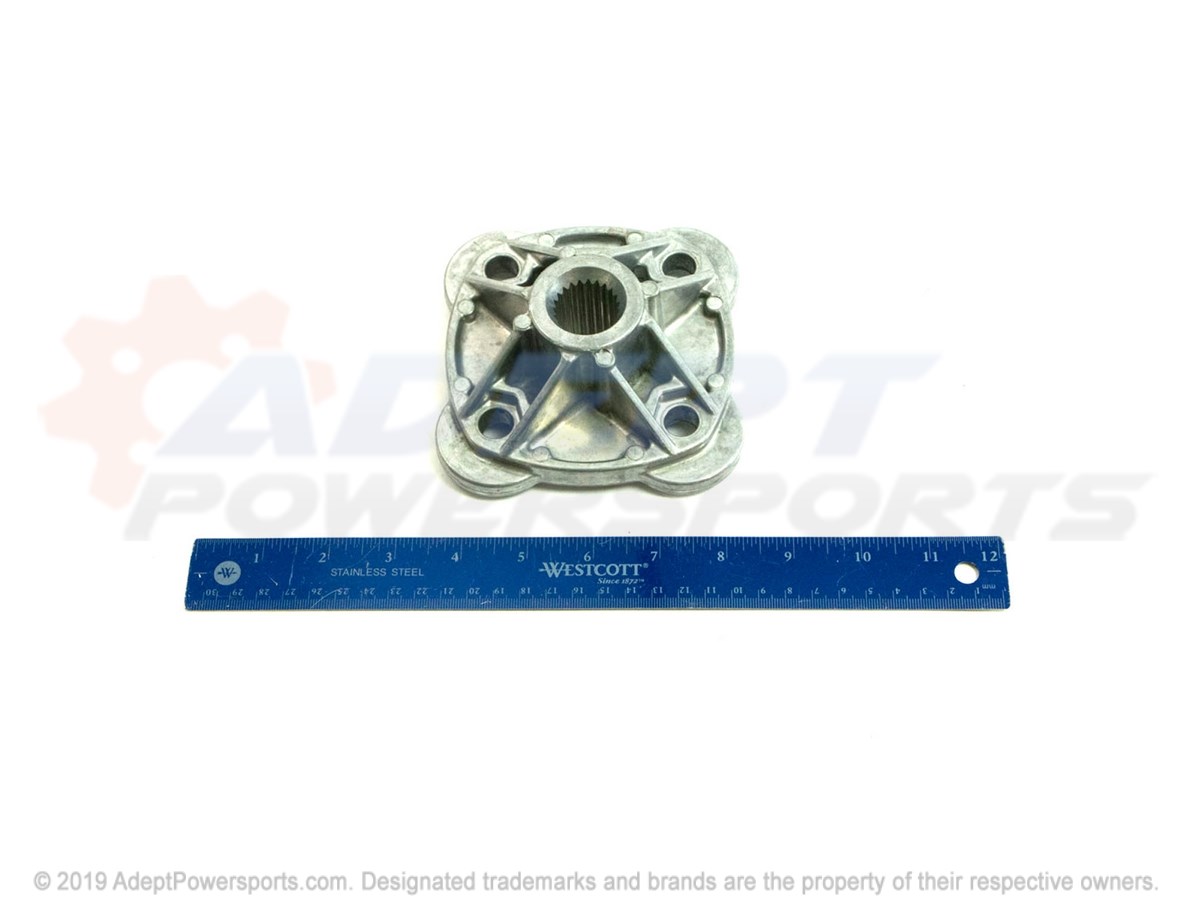

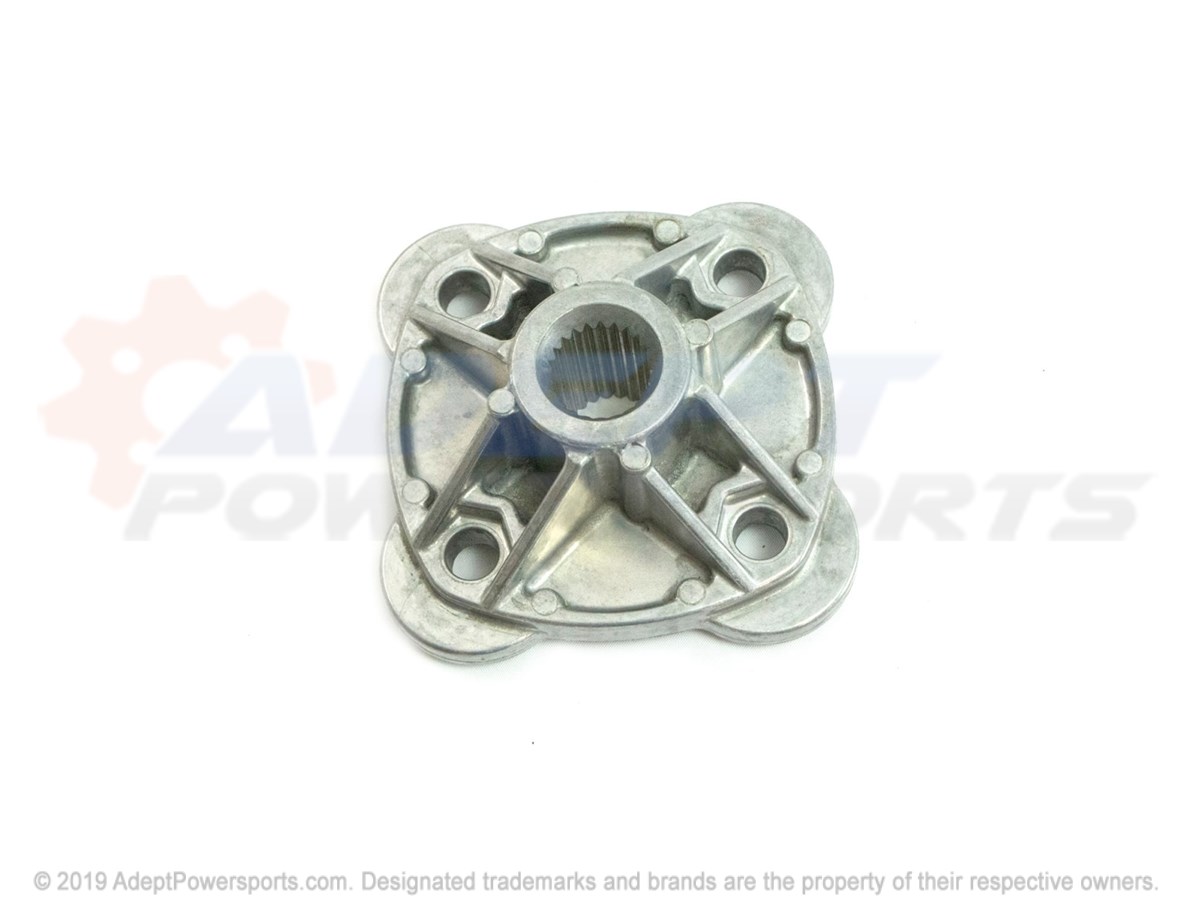

OEM Parts Polaris Hub-Rear, Wheel, Lg, Flange, (Mach)
Polaris

Polaris - Hub-Rear, Wheel, Lg, Flange, (Mach) - 5144192

Check if this part fits your Polaris model

Manufacturer

Brand New, Genuine Polaris Part

Manufacturer Part#

5144192

Item Number

OEM2280879

Note

Replaces p/n 5131777. For kit, see p/n 2200341

Adept Powersports currently does not sell Polaris parts.

Information is available for reference only at this time.

Special order item

This item is a non-returnable special order item that has to be ordered from the manufacturer warehouse. Once ordered, the order for this item cannot be canceled, and all sales are final.

Please note that this item is not returnable. It cannot be returned for a refund or store credit. It cannot be exchanged for another item.

I understand, add to cart

Product Details



INSTALLATION INSTRUCTIONS
  1. With engine off, place machine in gear and set parking brake.
  2. Loosen rear wheel nuts slightly.
  3. Elevate and support machine under footrest/frame area.
  4. Remove wheel nuts. Remove wheel.
  5. Remove hub cap, cotter pin, castle nut, cone washer, and flat washer. Remove hub.
  6. Clean axle spline and taper with a wire brush and grease lightly.
  7. Install hub (PN 5131777) from kit onto axle spline.
    NOTE: Match the taper in the wheel hub to the cone on the axle.
  8. Reinstall flat washer removed during disassembly.
  9. Install spring washer (PN 7555796) from kit with raised center out. See illustration.
  10. Reinstall castle nut and torque to 80 ft. lbs. (11.04 kg/m). Install cotter pin, bending one leg of cotter pin inward and one outward against end of axle.
    NOTE: If the hole for the cotter pin does not line up properly, tighten the nut until the hole aligns, then install cotter pin.
  11. Reinstall hub cap.
  12. Reinstall wheel. Install wheel nuts with tapered side facing in. Torque to 50 ft. lbs.



This part is utilized in 223 assemblies

1990 Polaris Trail Boss 350L 4X4 (W908139)

Rear Wheel Drive Assembly

This part is number 3 on this diagram
Quantity required per assembly: 2
