OEM Parts Polaris Seal, Exhaust

Polaris

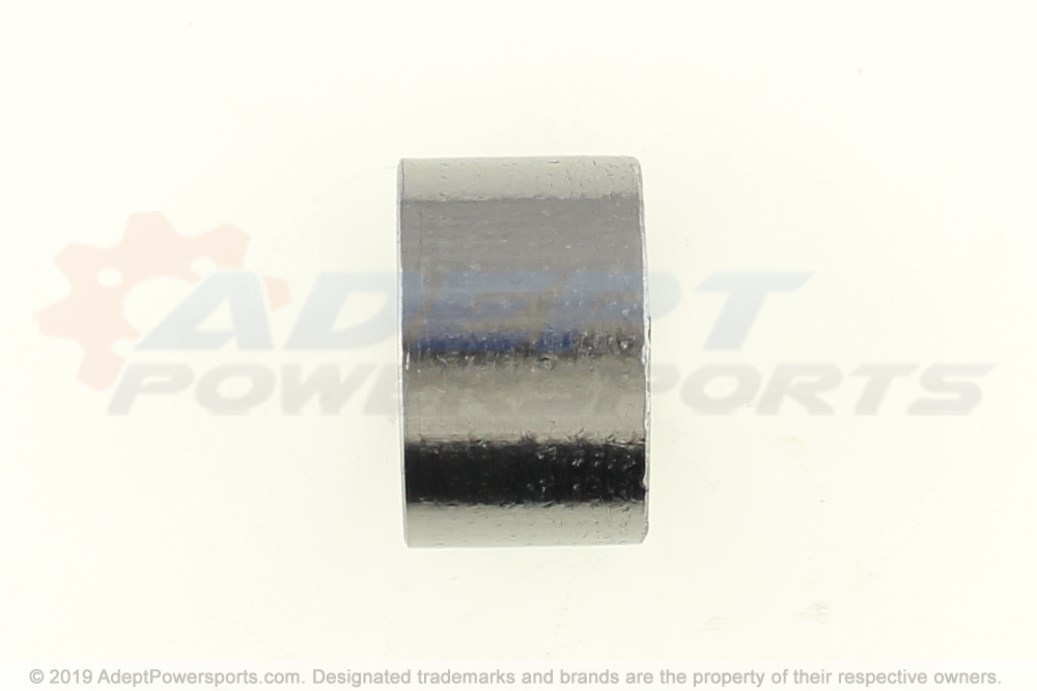

Polaris - Seal, Exhaust - 5257254

Check if this part fits your Polaris model

Manufacturer

Brand New, Genuine Polaris Part

Manufacturer Part#

5257254

Item Number

OEM791618

This Part Replaces

5250091

Adept Powersports currently does not sell Polaris parts.

Information is available for reference only at this time.

Frequently Bought Together

Polaris 7041789 Spring-Exhaust

+

Polaris 7041687 Spring, Exhaust

+

Polaris 7515197 Screw

+

Polaris 7517386 Screw

+

Polaris 1262132 Arrestor, Spark

Total price: $42.83

Polaris SPRING-EXHAUST (7041789) $4.03

Polaris Spring, Exhaust (7041687) $2.30

Polaris SCREW (7515197) $1.15

Polaris SCREW (7517386) $1.73

Polaris Arrestor, Spark (1262132) $33.62

Provided by Adept Powersports customers like you

Installation Instructions and Repair Stories

James from Atlanta, GA Wednesday, April 24, 2013

I was in the process of putting an aftermarket slip on exhaust on my 2009 polaris rzr 800, most have stated that the seal for the muffler to the header pipe will need to be replaced upon changing the muffler.....well like most will do, I tried using the existing seal and it fell apart on me... So in order to take off a muffler from this vehicle, the whole header pipe along with the actual short header had to be removed.. I used vice grips to pull off the exhaust springs which was not fun, then had to adjust the exhaust using the adjusting rubber-footed posts....after adjusting all the way down then it would slide out far enough to pull out the pipe from existing muffler....after all was off the vehicle, I then put short header back on , then put the long header pipe back into place somewhat losely......with this new exhaust seal from 2wheelpros, I then put the seal on the header pipe and then very slowly and carefully slid the muffler onto the header pipe with new seal already in place (on male end of muffler/header connection).......was a very snug fit which is what you want.....then I tightened the muffler in place and after that I readjusted the angle of the long header pipe, thus making sure all gaskets were in place........fired her up and the seals that I had moved around and the new seal were smoking a little bit, the seals are made of super soft lead and I am assuming that some of the lead particulate was burning off....everything is good and no exhaust leaks.....thanks 2wheelpros....

Difficulty level: Average

Were these instructions helpful?

Parts used in this repair

This part is utilized in 25 assemblies

2008 Polaris RANGER RZR 800 EFI (R08VH76AD/AG)

EXHAUST SYSTEM - R08VH76AD/AG

This part is number 2 on this diagram
Quantity required per assembly: 1

2009 Polaris MILITARY RANGER RZR "S" - M09VH76MD/MX

Exhaust System - M09VH76MD/MX

This part is number 2 on this diagram
Quantity required per assembly: 1

2009 Polaris RANGER RZR 800 EFI ALL OPTIONS (R09VH76)

ENGINE, EXHAUST SYSTEM - R09VH76 ALL OPTIONS

This part is number 2 on this diagram
Quantity required per assembly: 1

2009 Polaris RANGER RZR S 800 EFI (R09VH76AX)

ENGINE, EXHAUST SYSTEM - R09VH76AX

This part is number 2 on this diagram
Quantity required per assembly: 1

2010 Polaris RANGER RZR 800 EFI (R10VH76AD/AG/AJ/AK/AT)

ENGINE, EXHAUST SYSTEM - R10VH76AD/AG/AJ/AK/AT

This part is number 2 on this diagram
Quantity required per assembly: 1

2010 Polaris RANGER RZR S 800 EFI (R10VH76AW/AO/AB)

ENGINE, EXHAUST SYSTEM - R10VH76AW/AO/AB

This part is number 2 on this diagram
Quantity required per assembly: 1

2011 Polaris MILITARY RZR SW 800 EFI - M11VE76AA

Exhaust System - M11VE76AA

This part is number 2 on this diagram
Quantity required per assembly: 1

2011 Polaris RANGER RZR 4 4/EPS RGE (R11XH76AW/AZ/XY76AA)

ENGINE, EXHAUST SYSTEM

This part is number 2 on this diagram
Quantity required per assembly: 1

2011 Polaris RANGER RZR 4 INTL (R11XY76FX)

ENGINE, EXHAUST SYSTEM

This part is number 2 on this diagram
Quantity required per assembly: 1

2011 Polaris RANGER RZR 800 EFI/EPS (R11VH76/VY76)

ENGINE, EXHAUST SYSTEM

This part is number 2 on this diagram
Quantity required per assembly: 1

2011 Polaris RANGER RZR 800 S EFI (R11VE76AC/AD/AT/AW/AZ)

ENGINE, EXHAUST SYSTEM

This part is number 2 on this diagram
Quantity required per assembly: 1

2011 Polaris RANGER RZR 800 S EPS INTL (R11VM76FX)

ENGINE, EXHAUST SYSTEM

This part is number 2 on this diagram
Quantity required per assembly: 1

2012 Polaris MILITARY RANGER RZR SW - M12VE76AA/AD

Exhaust System - M12VE76AA/AD

This part is number 2 on this diagram
Quantity required per assembly: 1

2012 Polaris RZR 4 800 EFI

R12XE76AD/7EAB/EAO

EXHAUST SYSTEM

This part is number 2 on this diagram
Quantity required per assembly: 1

2012 Polaris RZR 4 800 EFI EPS INTL

R12XE7EFX

ENGINE, EXHAUST SYSTEM

This part is number 2 on this diagram
Quantity required per assembly: 1

2012 Polaris RZR 800 EFI/EPS

R12VH76AB/AD/AF/AH/AI/AJ/AM/EAB/EAS

EXHAUST SYSTEM

This part is number 2 on this diagram
Quantity required per assembly: 1

2012 Polaris RZR 800 S INTL/ISRAEL

R12VE76FX/FI

ENGINE, EXHAUST SYSTEM

This part is number 2 on this diagram
Quantity required per assembly: 1

2012 Polaris RZR S 800 EFI

R12VE76AB/AD/AE/AJ/AO

EXHAUST SYSTEM

This part is number 2 on this diagram
Quantity required per assembly: 1

2013 Polaris RANGER RZR 4 800 EFI - R13XE76AD/EAI

Exhaust System - R13XE76AD/EAI

This part is number 2 on this diagram
Quantity required per assembly: 1

2013 Polaris RANGER RZR 800 EFI - R13VH76AC/AD/AN/AS/EAI

Exhaust System - R13VH76AC/AD/AN/AS/EAI

This part is number 2 on this diagram
Quantity required per assembly: 1

2013 Polaris RANGER RZR S 800 EFI - R13VE76AD/AI/AS/AW

Exhaust System - R13VE76AD/AI/AS/AW

This part is number 2 on this diagram
Quantity required per assembly: 1

2014 Polaris RZR 4 800

Z14XE7EAL

Exhaust System - Z14XE7EAL

This part is number 2 on this diagram
Quantity required per assembly: 1

2014 Polaris RZR 800

Z14VH76AC/AD/EAI/EAK/EAJ

Exhaust System - Z14VH76AC/AD/EAI/EAK/EAJ

This part is number 2 on this diagram
Quantity required per assembly: 1

2014 Polaris RZR S 800

Z14VE76AD/7EAL/7EAW

Exhaust System - Z14VE76AD/7EAL/7EAW

This part is number 2 on this diagram
Quantity required per assembly: 1

2014 Polaris RZR S 800 INTL EFI/ISRAEL

Z14VE76FX/FI

Exhaust System - Z14VE76FX/FI

This part is number 2 on this diagram
Quantity required per assembly: 1
