Feuling Oil Pump Corp Beehive Valve Spring Kit

$218.70 - $559.00 You save up to $50.95
Free Shipping!Free Shipping!

Product Details

Manufacturer: Feuling Oil Pump Corp

Item Number: AD3005057

  • Made from premium stress-relieved conical ovate wire
  • Features extremely high-level of fatigue life
  • Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
  • Designed to handle the demands of performance engines with 0.585 and smaller lift camshafts

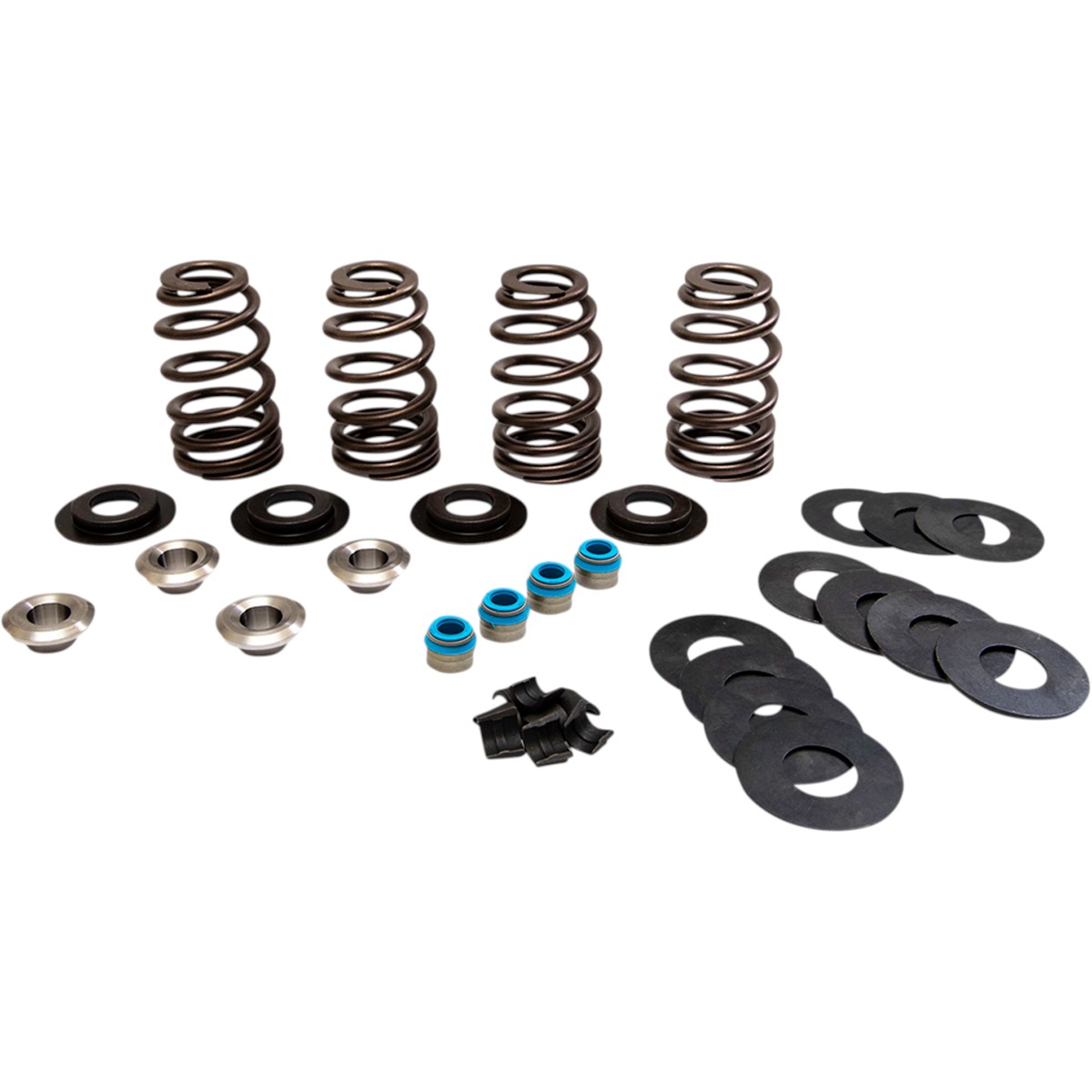

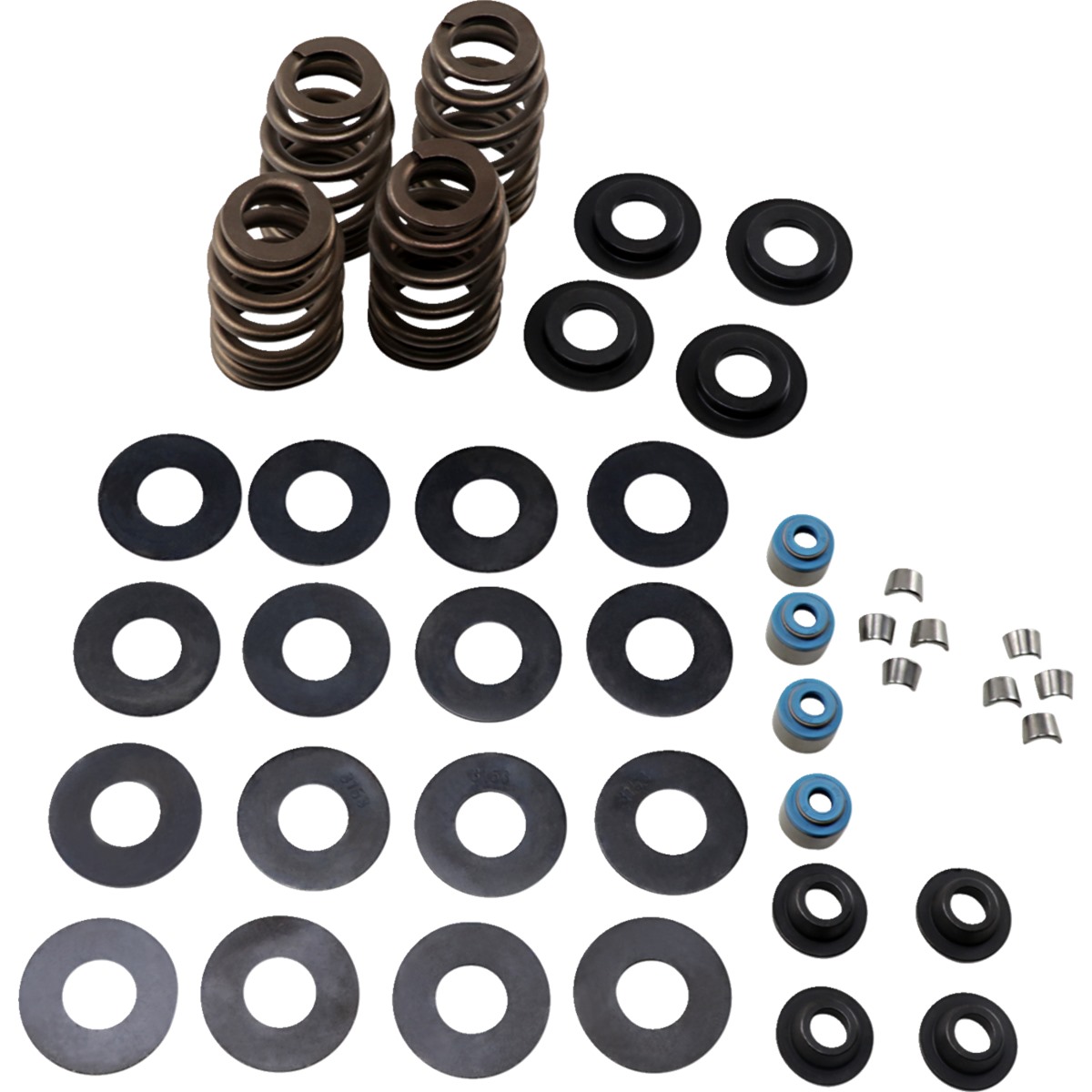

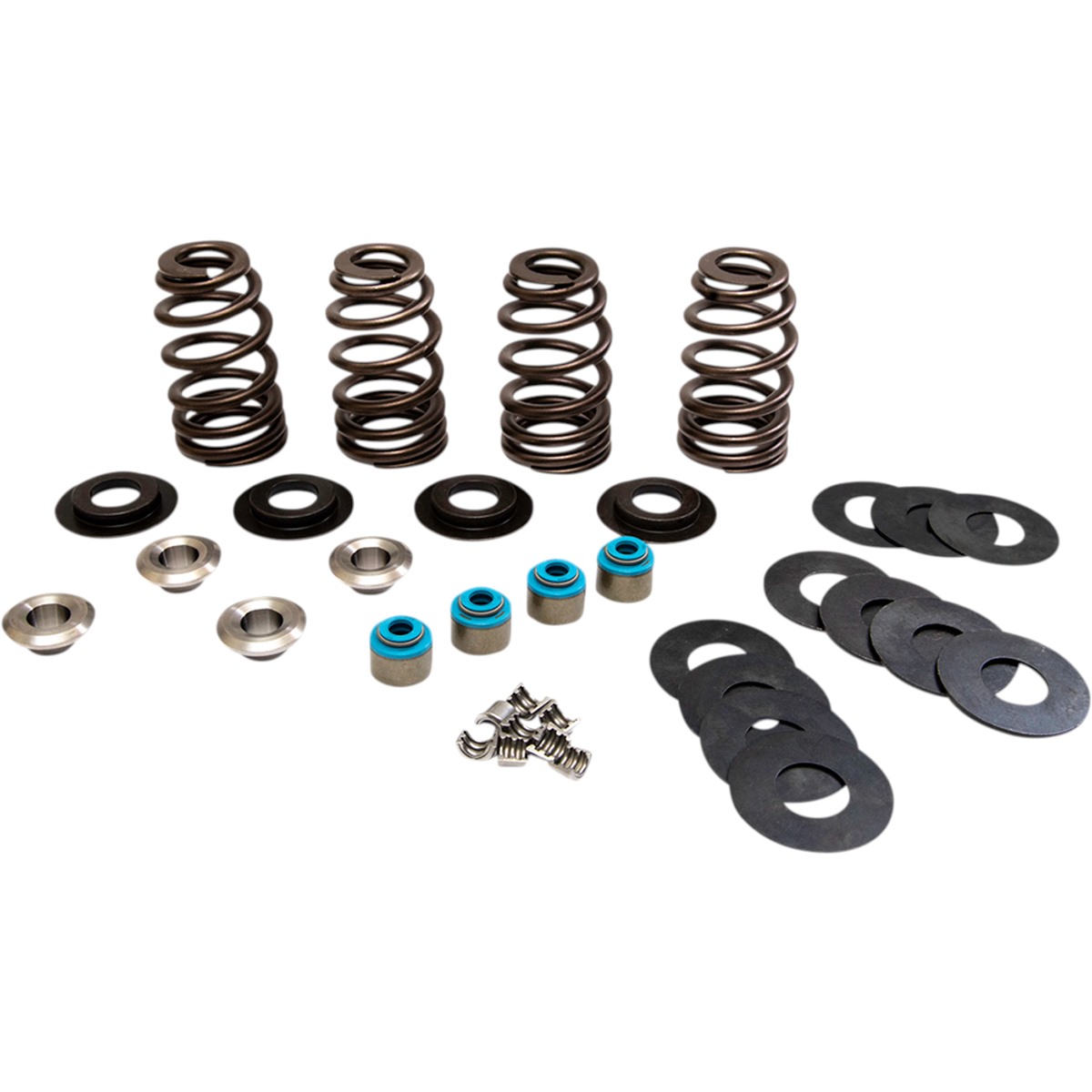

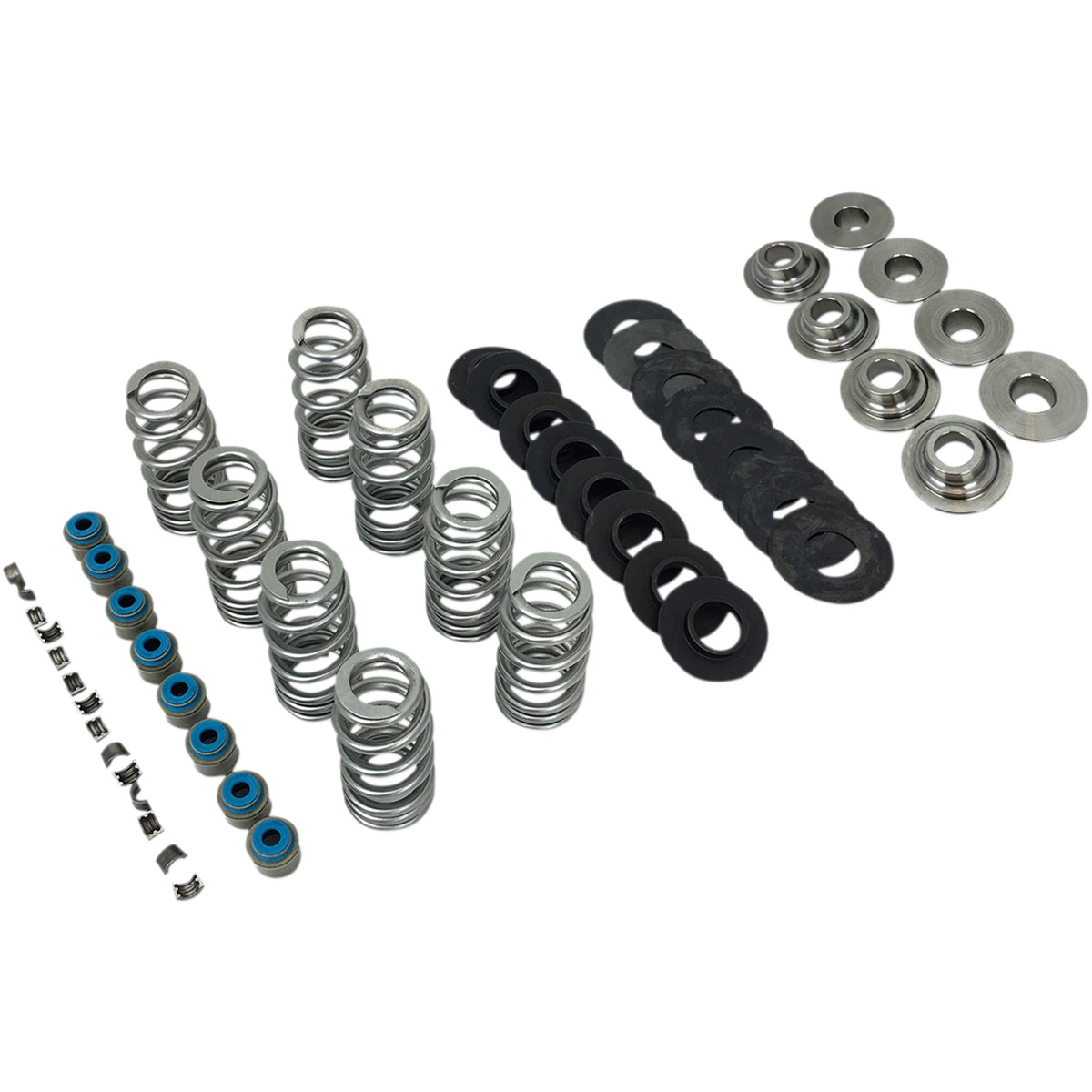

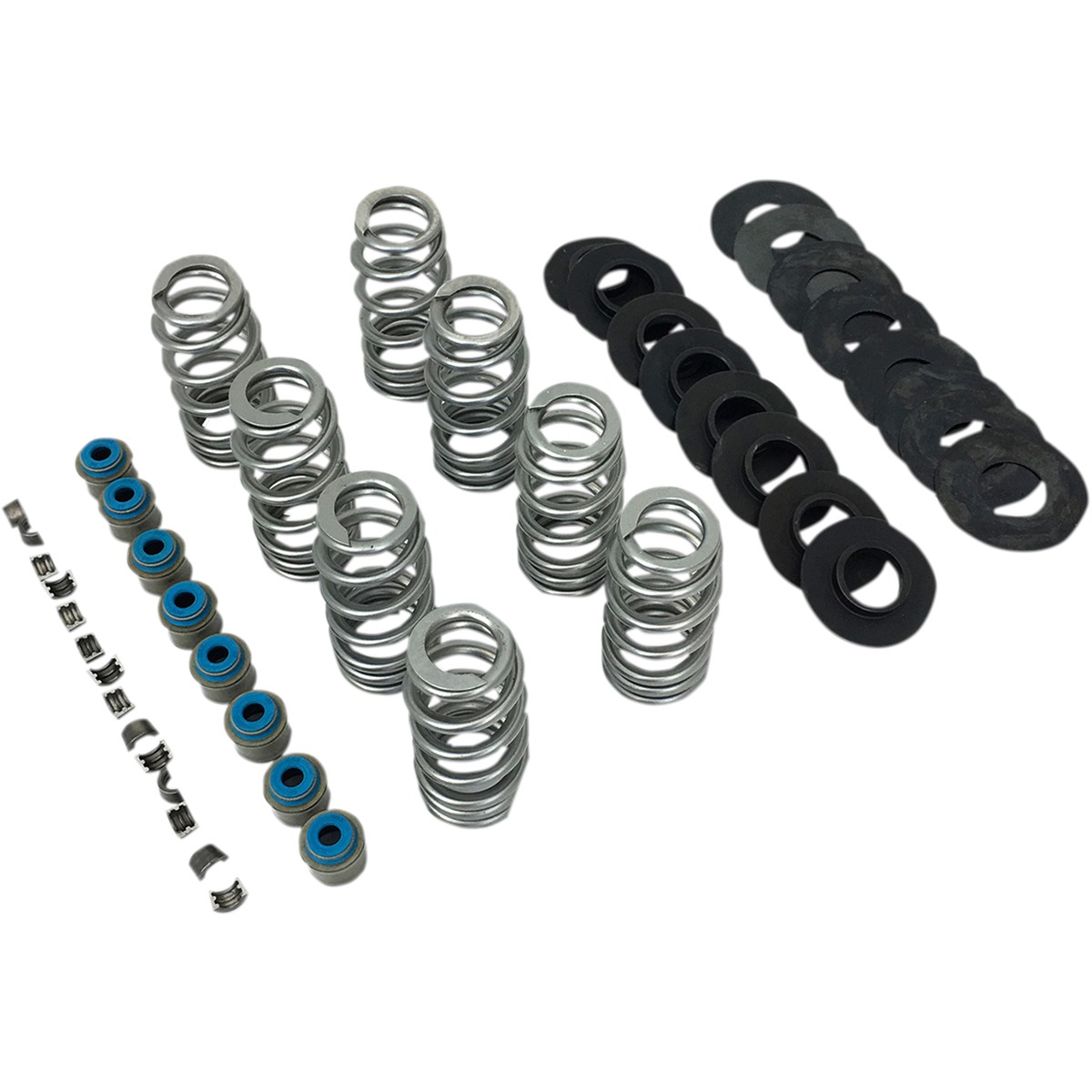

  • Kit includes: Econo BeeHive valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton valve seals equipped with spring-loaded valve stem wiper system
  • Seat lb/installed height; 183 lb at 1.770 (0.510 lift)
  • 175 lb at 1.795 (0.535 lift)
  • 172 lb at 1.813 (0.553 lift)
  • 165 lb at 1.835 (0.574 lift)
  • 160 lb at 1.845 (0.585 lift)
  • 380 lb at 1.260 open height coil bind at 1.190
  • Dyno proven and track tested
  • Feuling BeeHive valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
  • Made in the USA
  • Econo BeeHive kit is direct replacement with no machining or rocker box clearance required for cams up to 0.574 lift for '84-'04 Big Twin and '86-'03 XL and up to .585 lift for '05-'17 Twin Cam.

Fitment

Buell Models
Harley-Davidson Models
