OEM Parts Honda Power Equipment Honda Power Equipment E900 Control Box

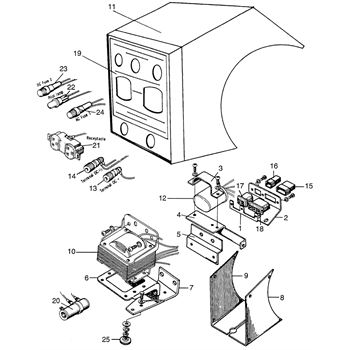

Honda Power Equipment E900 - Control Box

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
01

WASHER, CONNECTOR

Part #: 31107-846-621 Required per assembly: 1 Note: (Honda Code 0239400)
Not Available
01

WASHER, CONNECTOR

Part #: 31203-846-158 Required per assembly: 1 Note: (Honda Code 1199363)
Not Available
02

STAY, CONNECTOR

Part #: 31202-846-620 Required per assembly: 1 Note: (Honda Code 0239418)
Not Available
03

BAND, CONDENSER

Part #: 31203-846-620 Required per assembly: 1 Note: (Honda Code 0239426)
Not Available
04

STAY, CONDENSER

Part #: 31204-846-620 Required per assembly: 1 Note: (Honda Code 0239434)
Not Available
05

STAY, A, TRANSFORMER

Part #: 31206-846-620 Required per assembly: 1 Note: (Honda Code 0239442)
Not Available
06

STAY, B, TRANSFORMER

Part #: 31207-846-620 Required per assembly: 1 Note: (Honda Code 0239459)
Not Available
07

STAY, RESISTOR

Part #: 31208-846-620 Required per assembly: 1 Note: (Honda Code 0239467)
Not Available
08

COVER B *NH31*

Part #: 31402-846-621XC Note: (LOWER) (Honda Code 0239475) (MCKINLEY WHITE)
(MCKINLEY WHITE)
Not Available
09

COVER A *NH31*

Part #: 31403-846-621XC Note: (LOWER) (Honda Code 0239483) (MCKINLEY WHITE)
(MCKINLEY WHITE)
Not Available
10

TRANSFORMER

Part #: 31404-846-621 Required per assembly: 1 Note: (Honda Code 0239715)
Not Available
11

CVR, CONTROL, *NH31*

Part #: 31406-846-621XC Note: (UPPER) (Honda Code 0239707) (MCKINLEY WHITE)
(MCKINLEY WHITE)
Not Available
12

CONDENSER

Part #: 31426-846-178 Required per assembly: 1 Note: (Honda Code 1389386)
Not Available
17

CONNECTOR (4PCT)

Part #: 31432-846-621 Required per assembly: 1 Note: (4PCT) (Honda Code 0239517)
Not Available
20

RESISTOR SET

Part #: 31455-846-168 Required per assembly: 1 Note: (Honda Code 0263798)
Not Available
21

RECEPTACLE

Part #: 32333-880-680 Required per assembly: 1 Note: (15A-125V) (Honda Code 0475533)
$78.86
$58.03
-
+
Add to cart
22

BULB, DASH, (24V-2W)

Part #: 34909-880-000 Required per assembly: 1 Note: (24V2W) (Honda Code 0356600) (Optional)
Not Available
22

SOCKET, PILOT, LAMP

Part #: 37561-846-621 Required per assembly: 1 Note: (Honda Code 0239764)
Not Available
24

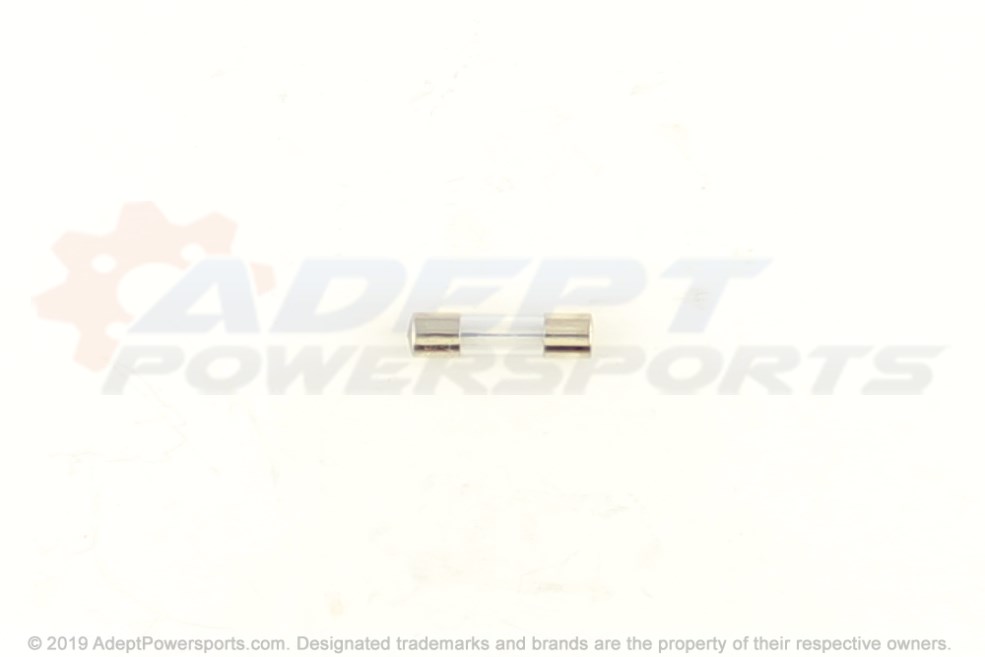

FUSE (15A)

Part #: 98200-11500 Required per assembly: 1
$1.95
$1.77
-
+
Add to cart
25

NUT, SPECIAL, (6MM)

Part #: 90381-812-710 Required per assembly: 1 Note: (6MM) (Honda Code 0239814)
$2.95
$2.74
-
+
Add to cart

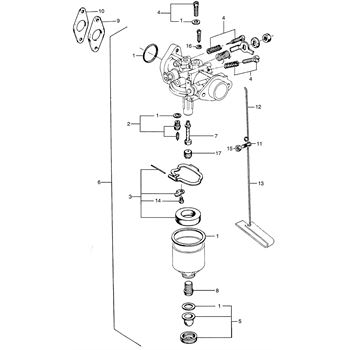

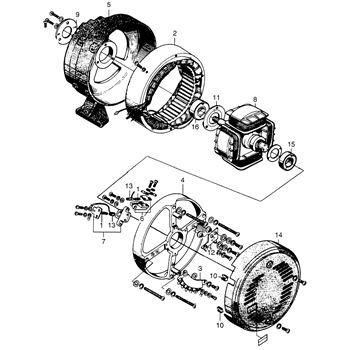

Other assembly diagrams for this model
