Control Panel (1) replacement parts for Honda Power Equipment EB3800X

OEM Parts Honda Power Equipment Honda Power Equipment EB3800X Control Panel (1)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	TERMINAL, SET, GROUND Part #: 31428-Z22-000 Required per assembly: 1 Note: (Honda Code 7500507) $8.38 $6.66 - + Add to cart
02	RUBBER, CONTROL Part #: 31462-Z22-000 Required per assembly: 1 Note: (Honda Code 7500515) $279.86 $205.94 - + Add to cart
05	DIODE Part #: 31720-Z18-003 Required per assembly: 1 Note: (Honda Code 7500531) Not Available
06	BRACKET Part #: 32103-Z18-000 Required per assembly: 1 Note: (A) (Honda Code 7500549) $6.54 $5.24 - + Add to cart
07	WIRE HARNESS ASSEMBLY Part #: 32150-Z21-E30 Required per assembly: 1 Note: (Honda Code 7500556) $326.16 $240.02 - + Add to cart
08	WIRE, TERMINAL Part #: 32151-Z22-E30 Required per assembly: 1 Note: (A) (Honda Code 7500580) $8.92 $7.07 - + Add to cart
09	WIRE, TERMINAL Part #: 32152-Z22-E30 Required per assembly: 1 Note: (B) (Honda Code 7500598) $9.92 $7.79 - + Add to cart
10	WIRE, TERMINAL Part #: 32153-Z22-E30 Required per assembly: 1 Note: (C) (Honda Code 7500606) $9.88 $7.76 - + Add to cart
12	RECEPTACLE Part #: 32330-Z21-A31 Required per assembly: 2 Note: (20A/125V) Use from Frame SN 1039898. $51.82 $38.14 - + Add to cart
12	RECEPTACLE ASSEMBLY Part #: 32330-Z07-C30 Required per assembly: 2 Note: (125V-20A) (Honda Code 6728315) (MATSUSHITA) $56.90 $43.14 - + Add to cart
12	RECEPTACLE Part #: 32330-Z03-C31 Required per assembly: 2 Note: (20A/125V) (Honda Code 6389076) $49.28 $36.26 - + Add to cart
13	RECPTL (30A/125V) Part #: 32332-ZB4-630 Required per assembly: 1 $45.20 $34.26 - + Add to cart
13	RECEPTACLE Part #: 32332-Z22-E31 Required per assembly: 1 Note: (30A-125V) Use from Frame SN 1039898 $86.86 $63.92 - + Add to cart
14	RECEPTACLE Part #: 32332-Z21-E31 Required per assembly: 1 Note: (20A-125/250V) (Honda Code 9130675) $87.70 $64.54 - + Add to cart
15	PNL, CONTROL, NH105 Part #: 32345-Z22-E30ZA Required per assembly: 1 Note: (MAT BLACK) Use from Frame SN 1000178 (MAT BLACK) $232.88 $168.84 - + Add to cart
15	PNL, CONTROL, NH105 Part #: 32345-Z22-E31ZA Required per assembly: 1 Note: (MAT BLACK) Use from Frame SN 1000178 (MAT BLACK) $226.10 $166.39 - + Add to cart
16	CASE R280 Part #: 32356-Z22-010ZA Required per assembly: 1 Note: (POWER RED) Use from Frame SN 1000178 (POWER RED) $138.58 $100.47 - + Add to cart
17	MARK, PANEL Part #: 32366-Z21-E30 Required per assembly: 1 Note: (Honda Code 7500648) $71.00 $51.48 - + Add to cart
17	MARK, PANEL Part #: 32366-Z21-E31 Required per assembly: 1 Note: (Honda Code 8197956) $90.30 $66.45 - + Add to cart
18	TIE, CABLE Part #: 32903-ZC8-N01 Required per assembly: 9 Note: (C) (Honda Code 6569651) (Optional) $2.44 $2.26 - + Add to cart
19	CONTROL, UNIT, IDLE Part #: 34140-Z22-E31 Required per assembly: 1 Note: (Honda Code 7500705) $241.10 $177.42 - + Add to cart
20	KNOB, ENGINE, SWITCH Part #: 35123-Z22-E31 Required per assembly: 1 Note: (Honda Code 7500713) $8.56 $6.79 - + Add to cart
21	SWITCH, VOLT, CHANGE Part #: 35320-Z22-E31 Required per assembly: 1 Note: (Honda Code 7500721) $105.38 $77.55 - + Add to cart
22	SWITCH, IDLE, CONTROL Part #: 35340-Z22-E31 Required per assembly: 1 Note: (Honda Code 8167959) $38.26 $28.16 - + Add to cart
23	BUSH, CONTROL, KNOB Part #: 36106-892-003 Required per assembly: 1 Note: (Honda Code 0947473) $6.24 $5.10 - + Add to cart
24	SWITCH, ENGINE, STOP Part #: 36110-ZB4-702 Required per assembly: 1 Note: (Honda Code 8823460) $32.72 $24.08 - + Add to cart

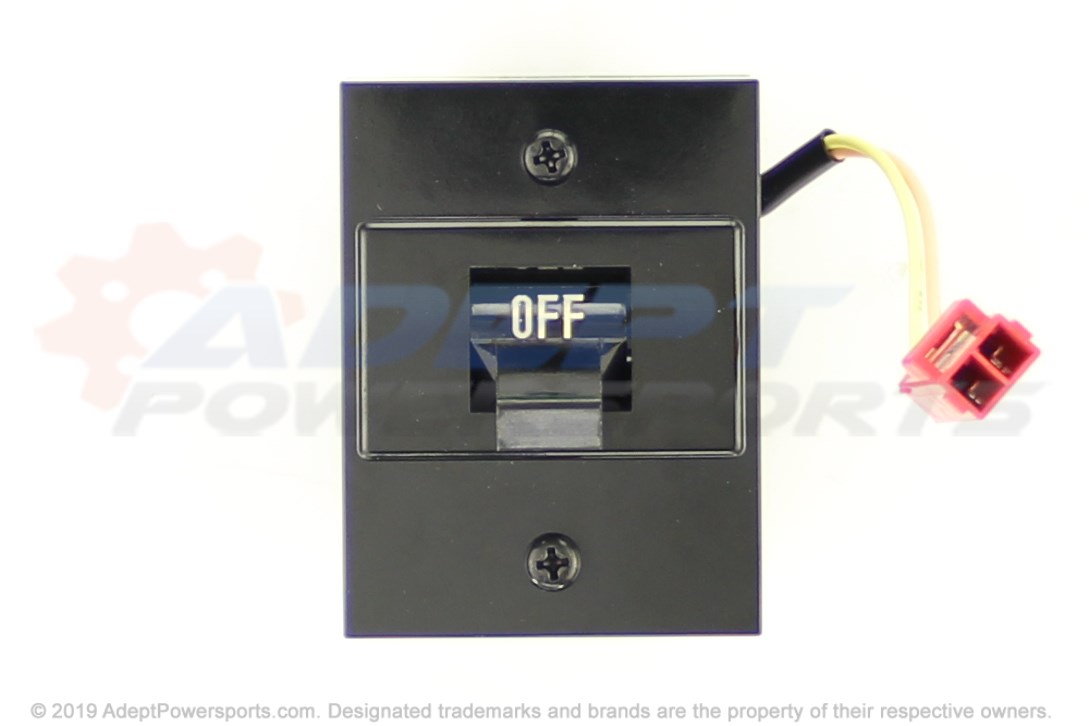

25	BREAKER (15A) Part #: 38220-Z21-E30 Required per assembly: 1 Note: (15A) (Honda Code 7500754) $463.00 $340.71 - + Add to cart
27	PROTR, CIRCUIT, (20A) Part #: 38240-Z22-E31 Required per assembly: 1 Note: (20A) (Honda Code 9130709) $85.90 $63.21 - + Add to cart
29	RELAY ASSEMBLY Part #: 38540-ZC2-E31 Required per assembly: 1 Note: (GFCI) (Honda Code 6308373) $381.89 $359.57 - + Add to cart
30	MARK, ENGINE, SWITCH Part #: 87501-Z22-E30 Required per assembly: 1 Note: (Honda Code 7501109) $20.50 $15.08 - + Add to cart
31	BOLT (6X12) (CT200) Part #: 90013-883-000 Required per assembly: 1 $2.55 $2.36 - + Add to cart
32	SCREW, TRUSS, (6X18) Part #: 90101-Z15-000 Required per assembly: 4 Note: (6X18) (Honda Code 7496037) $1.73 $1.59 - + Add to cart
33	BOLT, HEX., (6X28) Part #: 90111-Z22-000 Required per assembly: 1 Note: (6X28) (Honda Code 7496060) $3.33 - + Add to cart
34	NUT, HEX., (6MM) Part #: 90112-Z22-000 Required per assembly: 2 Note: (6MM) (Honda Code 7496078) $2.11 $1.96 - + Add to cart
35	RETAINER (6MM) Part #: 90501-ZA7-640 Required per assembly: 1 Note: (6MM) (Honda Code 3479805) $3.70 - + Add to cart
36	STRAP, CABLE, (105MM) Part #: 90672-SB2-003 Required per assembly: 2 $5.75 $5.58 - + Add to cart
37	TIE, CABLE Part #: 90672-ZB4-003 Required per assembly: 5 Note: (Honda Code 2279966) $5.68 $5.18 - + Add to cart
38	TUBE, CORD Part #: 91406-ZB3-740 Required per assembly: 1 Note: (Honda Code 4618690) $4.76 $4.51 - + Add to cart
39	TUBE (22X60) Part #: 91408-Z22-000 Required per assembly: 1 Note: (22X60) (Honda Code 7501299) $6.80 $5.50 - + Add to cart
40	COLLAR, CONTROL, CASE Part #: 91551-Z15-000 Required per assembly: 4 Note: (Honda Code 7501315) $3.28 - + Add to cart
41	COLLAR, CONTROL, CASE Part #: 91551-Z22-000 Required per assembly: 1 Note: (Honda Code 7501323) $3.36 - + Add to cart
42	GROMMET, TUBE Part #: 91601-Z22-000 Required per assembly: 1 Note: (Honda Code 8844011) $3.01 $2.80 - + Add to cart
42	GROMMET, TUBE Part #: 91601-ZB4-003 Required per assembly: 1 Note: (Honda Code 2280030) $3.86 $3.84 - + Add to cart
43	SCREW, PAN, (4X6) Part #: 93500-04006-0G Required per assembly: 4 $1.87 $1.73 - + Add to cart
44	SCREW, PAN, (5X18) Part #: 93500-05018-0G Required per assembly: 1 $1.53 $1.41 - + Add to cart
45	SCREW-WASHER (5X12) Part #: 93892-05012-08 Required per assembly: 2 $2.18 $2.02 - + Add to cart
45	SCREW-WASHER (5X14) Part #: 93892-05014-08 Required per assembly: 2 $2.13 $1.97 - + Add to cart
46	SCREW, TAP, (4X16) Part #: 93911-24410 Required per assembly: 1 Not Available
47	NUT, FLANGE, (4MM) Part #: 94050-04000 Required per assembly: 10 $2.26 $2.05 - + Add to cart
48	WASHER, PLAIN, (6MM) Part #: 94101-06800 Required per assembly: 1 Not Available
49	WASHER, SPRING, (6MM) Part #: 94111-06000 Required per assembly: 2 $1.98 $1.83 - + Add to cart
50	BOLT, FLANGE, (6X12) Part #: 96001-06012-00 Required per assembly: 1 $2.79 $2.60 - + Add to cart
52	BAND, HARNESS, (98MM) Part #: 90615-PN3-003 Required per assembly: 1 Note: (98MM) (NATURAL) (Honda Code 4708400) (Optional) $6.41 $6.17 - + Add to cart
53	SCREW, PAN, (4X8) Part #: 93500-04008-0A Required per assembly: 1 $1.91 $1.77 - + Add to cart
