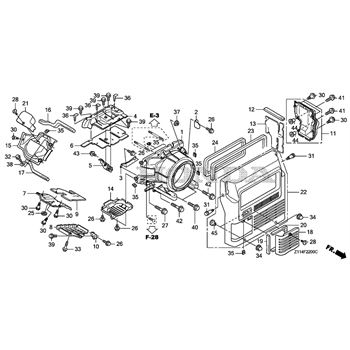

Honda Power Equipment EB5000I - Frame

BRACKET

Part #: 32103-Z11-000 Required per assembly: 1 Note: (Honda Code 7776818)

CABLE, SUB-GROUND

Part #: 32610-Z11-A00 Required per assembly: 1 Note: (Honda Code 7776974)

FRAME *NH105*

Part #: 50310-Z11-010ZA Required per assembly: 1 Note: (MAT BLACK) (Honda Code 8021271)
(MAT BLACK)

FRAME, FR.

Part #: 63640-Z11-000 Required per assembly: 1 Note: (Honda Code 7780273)

RUBBER A

Part #: 63776-Z11-000 Required per assembly: 1 Note: (Honda Code 7777493)

RUBBER B

Part #: 63778-Z11-000 Required per assembly: 1 Note: (Honda Code 7777501)

BRACKET, FR., *NH105*

Part #: 68322-Z11-000ZA Required per assembly: 1 Note: (MAT BLACK) (Honda Code 7777519)
(MAT BLACK)

BRACKET, RR.

Part #: 68323-Z11-000 Required per assembly: 1 Note: (Honda Code 7777527)

RUBBER (LOWER)

Part #: 68325-ZC2-000 Required per assembly: 1 Note: (LOWER) (Honda Code 2279677)

RUBBER (LOWER)

Part #: 68325-Z11-000 Required per assembly: 2 Note: (LOWER) (Honda Code 7777535)

RUBBER, L., (LOWER)

Part #: 68326-Z11-000 Required per assembly: 1 Note: (LOWER) (Honda Code 7777543)

RUBBER, STOPPER

Part #: 68346-ZC3-700 Required per assembly: 3

RUBBER, BATTERY, BOX

Part #: 83618-GF0-751 Required per assembly: 4

WASHER, LOCK, (6MM)

Part #: 90432-898-000 Required per assembly: 1

NUT, FLANGE, (6MM)

Part #: 94050-06000 Required per assembly: 1

NUT, FLANGE, (8MM)

Part #: 94050-08000 Required per assembly: 4 Note: Sold in multiples of 5 only

NUT, FLANGE, (10MM)

Part #: 94050-10000 Required per assembly: 5

BOLT, FLANGE, (8X12)

Part #: 95701-08012-00 Required per assembly: 5

BOLT, FLANGE, (8X30)

Part #: 95701-08030-00 Required per assembly: 2
