Eb Control Box replacement parts for Honda Power Equipment EB5000XK1

OEM Parts Honda Power Equipment Honda Power Equipment EB5000XK1 Eb Control Box

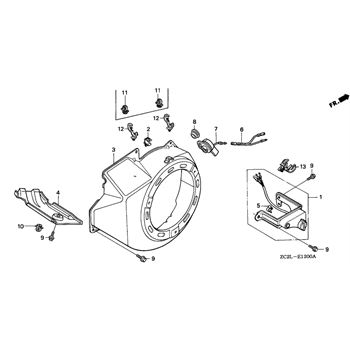

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	ALERT, UNIT, OIL Part #: 15520-ZB2-003 Required per assembly: 1 Note: (Honda Code 1496520) Not Available
02	CLIP, WIRE Part #: 30561-ZB4-000 Required per assembly: 1 Note: (Honda Code 2278844) $6.30 $5.14 - + Add to cart
03	BOX, CONTROL, R8 Part #: 31400-ZC2-E32ZA Required per assembly: 1 Note: (Honda Code 4690145) (BRIGHT RED) (BRIGHT RED) $1,479.38 - + Add to cart
03	BOX, CONTROL, R8 Part #: 31400-ZC2-E33ZA Note: (Honda Code 5379805) (BRIGHT RED) (BRIGHT RED) $2,016.08 - + Add to cart
03	BOX, CONTROL, R8 Part #: 31400-ZC2-E34ZA Note: (Honda Code 5731740) (BRIGHT RED) (BRIGHT RED) $2,067.50 - + Add to cart
03	BOX, CONTROL, R280 Part #: 31400-ZC2-E35ZB Required per assembly: 1 Note: (POWER RED) (Honda Code 7658503) (POWER RED) Not Available
04	WIRE HARNESS ASSEMBLY Part #: 31404-ZC2-E31 Required per assembly: 1 Note: (Honda Code 4025169) Not Available
04	WIRE HARNESS ASSEMBLY Part #: 31404-ZC2-E32 Required per assembly: 1 Note: (Honda Code 5367131) Not Available
04	WIRE HARNESS ASSEMBLY Part #: 31404-ZC2-E33 Required per assembly: 1 Note: (Honda Code 5731757) Not Available
05	MARK, SWITCH, PANEL Part #: 31406-ZB4-E32 Required per assembly: 1 Note: (Honda Code 5379771) Not Available
05	MARK, SWITCH, PANEL Part #: 31406-ZB4-E31 Required per assembly: 1 Note: (Honda Code 4025219) Not Available
06	MARK, A.C., OUT Part #: 31408-ZC2-E31 Required per assembly: 1 Note: (Honda Code 4025276) Not Available
06	MARK, A.C., OUT Part #: 31408-ZC2-E32 Required per assembly: 1 Note: (Honda Code 5367164) $70.34 $53.32 - + Add to cart
07	CASE, CONTROL, R280 Part #: 31425-ZB4-010ZD Note: (POWER RED) (Honda Code 7394190) (POWER RED) Not Available
08	TERMINAL, SET, GROUND Part #: 31428-899-840 Required per assembly: 1 Note: (Honda Code 3639192) $23.08 $16.98 - + Add to cart
09	BREAKER (19A) Part #: 38220-ZC2-E30 Required per assembly: 1 Note: (19A) (Honda Code 5367099) $243.50 $184.56 - + Add to cart
09	BREAKER (19A) Part #: 31430-ZC2-630 Required per assembly: 1 Note: (19A) (Honda Code 2279156) $304.94 $231.12 - + Add to cart
10	RUBBER, CONTROL Part #: 31462-ZB4-000 Required per assembly: 1 Note: (Honda Code 2279180) $20.42 $15.02 - + Add to cart
11	GROMMET, A.C., WIRE Part #: 31481-ZB4-003 Required per assembly: 1 Note: (Honda Code 2304061) $14.24 $10.48 - + Add to cart
12	GROMMET, MAIN, WIRE Part #: 31482-ZB4-003 Required per assembly: 1 Note: (Honda Code 2304079) $16.68 $12.28 - + Add to cart
13	GROMMET, SWITCH, WIRE Part #: 31483-ZB4-003 Required per assembly: 1 Note: (Honda Code 2279206) $12.16 $9.32 - + Add to cart
14	DIODE ASSEMBLY Part #: 31720-ZD1-E31 Required per assembly: 1 Note: (Honda Code 3751070) Not Available
15	RECEPTACLE Part #: 32330-Z08-E42 Required per assembly: 1 Note: (20A/125V) (Honda Code 8941130) $335.10 $246.59 - + Add to cart
17	RECPTL (30A/125V) Part #: 32332-ZB4-630 Required per assembly: 1 $45.20 $34.26 - + Add to cart
18	RECEPTACLE Part #: 32334-ZA0-631 Required per assembly: 1 Note: (30A/125-250V) Use up to Frame SN 1039897. Not Available
19	PNL, CONTROL, R280 Part #: 32341-ZD1-E31ZB Note: (Honda Code 7394000) (POWER RED) (POWER RED) Not Available
20	KNOB, PETCOCK, LEVER Part #: 32343-892-003 Required per assembly: 1 Note: (Honda Code 0947424) $12.94 $10.03 - + Add to cart
21	BUSH, CONTROL, KNOB Part #: 36106-892-003 Required per assembly: 1 Note: (Honda Code 0947473) $6.24 $5.10 - + Add to cart
22	SWITCH, ENGINE, STOP Part #: 36110-ZB4-702 Required per assembly: 1 Note: (Honda Code 8823460) $32.72 $24.08 - + Add to cart
23	THROTTLE, UNIT, AUTO Part #: 36210-ZB4-014 Required per assembly: 1 $249.08 $183.29 - + Add to cart
24	SWITCH Part #: 36214-ZB4-023 Required per assembly: 1 $39.48 $29.06 - + Add to cart
25	SWITCH, VOLT, CHANGE Part #: 36221-899-630 Required per assembly: 1 Note: (Honda Code 1240050) $212.66 $161.18 - + Add to cart
26	PROTR, CIRCUIT, (20A) Part #: 38240-ZC2-E32 Required per assembly: 2 $93.46 $68.77 - + Add to cart
26	PROTR, CIRCUIT, (20A) Part #: 38240-ZC6-E31 Required per assembly: 2 Note: (20A) (Honda Code 8269789) $77.66 $57.14 - + Add to cart
27	PROTR, CIRCUIT, (30A) Part #: 38241-ZC6-E31 Required per assembly: 2 Note: (30A) (Honda Code 8269797) $77.68 $57.16 - + Add to cart
27	PROTR, CIRCUIT, (30A) Part #: 38241-ZC2-E31 Required per assembly: 2 Note: (30A) (Honda Code 6387575) Not Available
28	MARK, ENGINE, SWITCH Part #: 87501-ZB4-E32 Required per assembly: 1 Note: (Honda Code 4606380) $13.78 $10.14 - + Add to cart
29	MARK, AUTO-THROTTLE Part #: 87524-ZB4-E31 Required per assembly: 1 Note: (Honda Code 4025466) $8.06 $6.43 - + Add to cart
30	MARK, GROUND Part #: 87534-892-640 Required per assembly: 1 Note: (Honda Code 1106681) $2.95 $2.74 - + Add to cart
31	BOLT, HEX., (6X28) Part #: 90011-899-840 Required per assembly: 1 Note: (6X28) (Honda Code 3479797) $3.18 - + Add to cart
32	SCREW, GLOVE, BOX Part #: 90101-692-000 Required per assembly: 1 Note: (Honda Code 0782086) $2.33 $2.16 - + Add to cart
33	RETAINER (6MM) Part #: 90501-ZA7-640 Required per assembly: 1 Note: (6MM) (Honda Code 3479805) $3.70 - + Add to cart
34	TIE, CABLE Part #: 90672-ZB4-003 Required per assembly: 3 Note: (Honda Code 2279966) $5.68 $5.18 - + Add to cart
35	TUBE, CORD Part #: 91406-ZB4-000 Required per assembly: 1 Note: (Honda Code 2280022) $11.40 $8.90 - + Add to cart
36	GROMMET, TUBE Part #: 91601-ZB4-003 Required per assembly: 1 Note: (Honda Code 2280030) $3.86 $3.84 - + Add to cart
37	SCREW, PAN, (3X6) Part #: 93500-03006-0H Required per assembly: 2 $1.87 $1.73 - + Add to cart
38	SCREW, PAN, (4X6) Part #: 93500-04006-0H Required per assembly: 3 $1.95 $1.80 - + Add to cart
39	SCREW-WASHER (5X12) Part #: 93892-05012-08 Required per assembly: 1 $2.18 $2.02 - + Add to cart
40	SCREW-WASHER (4X10) Part #: 93893-04010-08 Required per assembly: 1 $2.37 $2.19 - + Add to cart
41	SCREW-WASHER (4X12) Part #: 93893-04012-08 Required per assembly: 1 $2.37 $2.19 - + Add to cart
42	NUT, HEX., (6MM) Part #: 94001-06390-0S Required per assembly: 2 Note: (6MM) (Honda Code 1240720) $2.61 $2.42 - + Add to cart
43	NUT, FLANGE, (4MM) Part #: 94050-04000 Required per assembly: 8 $2.26 $2.05 - + Add to cart
44	WASHER, PLAIN, (6MM) Part #: 94101-06800 Required per assembly: 1 Not Available
45	WASHER, SPRING, (6MM) Part #: 94111-06800 Required per assembly: 2 $2.17 $2.00 - + Add to cart
46	BOLT, FLANGE, (6X40) Part #: 95701-06040-08 Required per assembly: 3 $2.87 $2.67 - + Add to cart
47	RELAY ASSEMBLY Part #: 38540-ZC2-E31 Required per assembly: 1 Note: (GFCI) (Honda Code 6308373) $381.89 $359.57 - + Add to cart
47	RELAY ASSEMBLY Part #: 38540-ZC2-E31 Required per assembly: 1 Note: (GFCI) (Honda Code 6308373) $381.89 $359.57 - + Add to cart
48	BOLT (6X12) (CT200) Part #: 90013-883-000 Required per assembly: 1 $2.55 $2.36 - + Add to cart
49	RECEPTACLE Part #: 32330-Z03-C31 Required per assembly: 1 Note: (20A/125V) (Honda Code 6389076) $49.28 $36.26 - + Add to cart
50	CLIP, WIRE, HARNESS Part #: 91406-671-000 Required per assembly: 1 $16.19 $14.30 - + Add to cart
51	TUBE, CORD Part #: 91406-ZB3-740 Required per assembly: 1 Note: (Honda Code 4618690) $4.76 $4.51 - + Add to cart
