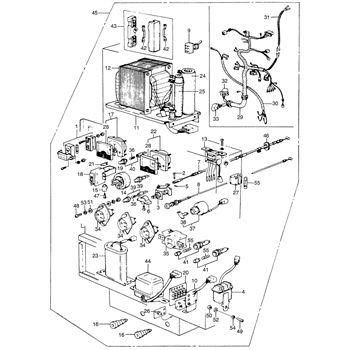

Honda Power Equipment EM5000 - Control Box & Throttle Cable

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
02

PIN

Part #: 14965-706-000 Required per assembly: 1 Note: (Honda Code 0161463)
Not Available
03

CONTROL, ENGINE

Part #: 16500-862-158 Required per assembly: 1 Note: (Honda Code 0357038)
Not Available
10

DIODE STACK

Part #: 31414-862-158 Required per assembly: 1 Note: (Honda Code 0357202)
Not Available
11

HOLDER

Part #: 31400-862-670 Required per assembly: 1 Note: (Honda Code 0454405)
Not Available
12

TRANSFORMER, CURRENT

Part #: 31403-862-671 Required per assembly: 1 Note: (Honda Code 0357152)
Not Available
13

TRANSFORMER, OVERRUN

Part #: 31404-862-671 Required per assembly: 1 Note: (Honda Code 0357160)
Not Available
15

KNOB, ADJUSTING

Part #: 31407-815-158 Required per assembly: 1 Note: (Honda Code 0140822)
Not Available
16

TERMINAL, A.C.

Part #: 31407-819-158 Required per assembly: 2 Note: (Honda Code 0162792)
Not Available
20

DIODE STACK ASSEMBLY

Part #: 31415-862-158 Required per assembly: 1 Note: (Honda Code 0357210)
Not Available
21

TERMINAL, BREAKER

Part #: 31416-862-158 Required per assembly: 1 Note: (Honda Code 0345322)
Not Available
25

RESISTOR, ADJUSTABLE

Part #: 31476-862-158 Required per assembly: 1 Note: (Honda Code 0357251)
Not Available
26

DIODE, D.C., CHARGING

Part #: 31482-862-158 Required per assembly: 1 Note: (Honda Code 0357269)
Not Available
27

GROMMET

Part #: 31485-862-158 Required per assembly: 1 Note: (Honda Code 0357277)
Not Available
29

HARN, GENERATOR

Part #: 32120-862-671 Required per assembly: 1 Note: (Honda Code 0357285)
Not Available
30

WIRE, HARNESS, ALTNTR

Part #: 32122-862-671 Required per assembly: 1 Note: (Honda Code 0357293)
Not Available
30

WIRE, HARNESS, ALTNTR

Part #: 32122-862-672 Required per assembly: 1 Note: (Honda Code 0461376)
Not Available
31

WIRE HARNESS A

Part #: 32123-862-701 Required per assembly: 1 Note: (Honda Code 0345397)
Not Available
32

CONNECTOR (6)

Part #: 32135-862-168 Required per assembly: 1 Note: (6) (Honda Code 0357301)
Not Available
34

RECEPTACLE

Part #: 32330-839-601 Required per assembly: 3 Note: (10A 250V) (Honda Code 0345405)
$45.96
$33.81
-
+
Add to cart
35

RECEPTACLE (30A)

Part #: 32335-838-671 Required per assembly: 1 Note: (30A) (Honda Code 0461384)
Not Available
38

KEY

Part #: 35111-862-003 Required per assembly: 2 Note: (Honda Code 0346130)
$9.20
$7.27
-
+
Add to cart
44

RELAY, ASSEMBLY, OVERRUN

Part #: 38490-862-004 Required per assembly: 1 Note: (Honda Code 0346148)
$246.66
$178.83
-
+
Add to cart
45

BOX, CONTROL, *NH83L*

Part #: 39300-862-675CT Note: (OFF BLACK) (Honda Code 0461392)
(OFF BLACK)
Not Available
45

BOX, CONTROL, *NH83L*

Part #: 39300-862-676CT Note: (OFF BLACK) (Honda Code 0461400)
(OFF BLACK)
Not Available
46

GROMMET, A/CLNR, HSG

Part #: 83551-300-000 Required per assembly: 1 Note: Sold in multiples of 5 only
$4.58
-
+
Add to cart
48

SCREW, PAN, (4X12)

Part #: 93500-04012-0A Required per assembly: 10
$1.87
$1.73
-
+
Add to cart
49

SCREW, PAN, (6X12)

Part #: 93500-06012-0H Required per assembly: 11
$1.98
$1.83
-
+
Add to cart
50

NUT, HEX., (6MM)

Part #: 94001-06080-0S Required per assembly: 1
$2.33
$2.16
-
+
Add to cart
51

WASHER, PLAIN, (4MM)

Part #: 94101-04800 Required per assembly: 10
$2.02
$1.87
-
+
Add to cart
52

WASHER, PLAIN, (6MM)

Part #: 94101-06800 Required per assembly: 1
Not Available
53

WASHER, SPRING, (4MM)

Part #: 94111-04800 Required per assembly: 10
$2.02
$1.87
-
+
Add to cart
54

WASHER, SPRING, (6MM)

Part #: 94111-06800 Required per assembly: 13
$2.17
$2.00
-
+
Add to cart
55

FUSE B (15A)

Part #: 98200-21500 Required per assembly: 4
$2.10
$1.94
-
+
Add to cart
