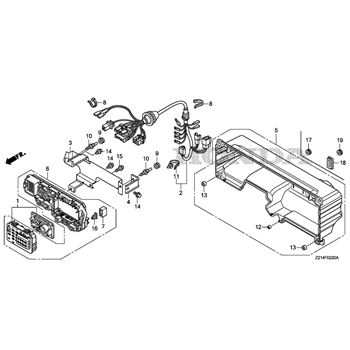

Control Panel (2) replacement parts for Honda Power Equipment EM6500SXK2

OEM Parts Honda Power Equipment Honda Power Equipment EM6500SXK2 Control Panel (2)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	TERMINAL Part #: 31408-880-000 Required per assembly: 1 Note: (+) (Honda Code 0475103) ~~$44.90~~ $34.01 - + Add to cart
02	TERMINAL Part #: 31409-880-000 Required per assembly: 1 Note: (-) (Honda Code 0475111) ~~$44.90~~ $34.01 - + Add to cart
03	TERMINAL, SET, GROUND Part #: 31428-Z22-000 Required per assembly: 1 Note: (Honda Code 7500507) $8.72 - + Add to cart
04	RUB, CONTROL, PANEL Part #: 31462-Z23-F10 Required per assembly: 1 $10.24 - + Add to cart
05	SUB-WIRE ASSEMBLY Part #: 32101-Z23-F20 Required per assembly: 4 $8.35 - + Add to cart
07	RECEPTACLE Part #: 32330-Z21-A31 Required per assembly: 2 Note: (20A/125V) Use from Frame SN 1039898. ~~$51.82~~ $38.12 - + Add to cart
08	RECEPTACLE Part #: 32334-Z22-A31 Required per assembly: 1 Note: (30A-125/250V) Use up to Frame SN 1039897 ~~$103.78~~ $78.64 - + Add to cart
09	RECEPTACLE Part #: 32332-Z22-E31 Required per assembly: 1 Note: (30A-125V) Use from Frame SN 1039898 ~~$86.86~~ $63.88 - + Add to cart
10	PNL, CONTROL, R280 Part #: 32345-Z23-F20ZB Note: (POWER RED) ~~$289.50~~ $212.93 - + Add to cart
12	MARK, PANEL Part #: 32366-Z23-F20 Required per assembly: 1 ~~$93.70~~ $68.91 - + Add to cart
13	CONNECTOR (12P) Part #: 32395-Z30-S32 Required per assembly: 1 ~~$113.48~~ $83.46 - + Add to cart
14	TIE, CABLE Part #: 32903-Z22-000 Required per assembly: 1 ~~$2.83~~ $2.45 - + Add to cart
15	CONTROL, UNIT, ENGINE Part #: 34100-Z23-F21 Required per assembly: 1 ~~$220.86~~ $162.45 - + Add to cart
16	SWITCH, COMBINATION Part #: 35100-Z1C-D22 Required per assembly: 1 ~~$91.22~~ $70.81 - + Add to cart
17	KEY Part #: 35110-Z5T-W01 Required per assembly: 1 $12.54 - + Add to cart
18	KEY ASSEMBLY Part #: 35110-Z5T-W11 $11.38 - + Add to cart
19	SWITCH, VOLT, CHANGE Part #: 35320-Z23-F21 Required per assembly: 1 ~~$108.98~~ $82.55 - + Add to cart
20	SENSOR ASSEMBLY Part #: 35694-Z23-003 Required per assembly: 1 ~~$101.78~~ $77.10 - + Add to cart
21	SWITCH Part #: 36214-Z11-A01 Required per assembly: 1 ~~$24.08~~ $21.18 - + Add to cart
22	BREAKER (27A) Part #: 38220-Z30-B41 Required per assembly: 1 ~~$171.48~~ $129.88 - + Add to cart
24	PROTR, CIRCUIT, (20A) Part #: 38240-Z23-F20 Required per assembly: 1 ~~$91.82~~ $67.54 - + Add to cart
24	PROTR, CIRCUIT, (30A) Part #: 38241-Z23-F20 Required per assembly: 2 ~~$26.64~~ $22.60 - + Add to cart
25	PROTR, CIRCUIT, (15A) Part #: 38240-ZA8-710 Required per assembly: 1 Note: (15A) (Honda Code 7677578) ~~$23.22~~ $20.24 - + Add to cart
26	LENS, PROTECTOR Part #: 38250-ZA8-701 Required per assembly: 1 Note: (Honda Code 1888676) ~~$19.10~~ $17.55 - + Add to cart
27	COVER (LOWER) Part #: 50361-Z23-F10 Required per assembly: 1 ~~$52.34~~ $37.93 - + Add to cart
28	LOCK, PLATE, COVER Part #: 50362-Z23-F10 Required per assembly: 1 $10.29 - + Add to cart
29	BOLT, HEX., (6X28) Part #: 90111-Z22-000 Required per assembly: 1 Note: (6X28) (Honda Code 7496060) $3.49 - + Add to cart
30	NUT, HEX., (6MM) Part #: 90112-Z22-000 Required per assembly: 2 Note: (6MM) (Honda Code 7496078) ~~$2.11~~ $1.50 - + Add to cart
31	BOLT, SOCKET, (8X22) Part #: 90128-MEM-630 Required per assembly: 4 ~~$3.11~~ $2.94 - + Add to cart
32	BOLT Part #: 90163-Z23-F10 Required per assembly: 1 ~~$3.29~~ $3.09 - + Add to cart
33	WASHER (4MM) Part #: 90401-ZR4-F30 Required per assembly: 2 Note: (4MM) (Honda Code 7678352) ~~$2.17~~ $1.52 - + Add to cart
34	WASHER, WAVE, (12MM) Part #: 90444-397-000 Required per assembly: 1 Note: (12MM) (Honda Code 2037398) $5.90 - + Add to cart
35	RETAINER (6MM) Part #: 90501-ZA7-640 Required per assembly: 1 Note: (6MM) (Honda Code 3479805) $4.01 - + Add to cart
36	BAND, WIRE, (95MM) Part #: 90650-KV6-003 Required per assembly: 1 $4.61 - + Add to cart
37	CLIP, WIRE, HARNESS Part #: 90681-763-A01 Required per assembly: 1 $11.02 - + Add to cart
38	CLIP (145MM) Part #: 91541-S0A-003 $5.30 - + Add to cart
40	SCREW, PAN, (3X16) Part #: 93500-03016-0G Required per assembly: 2 Note: (3X16) (Honda Code 7678451) ~~$1.80~~ $1.02 - + Add to cart
41	SCREW, PAN, (4X6) Part #: 93500-04006-0G Required per assembly: 2 ~~$1.87~~ $1.24 - + Add to cart
42	SCREW-WASHER (5X14) Part #: 93892-05014-08 Required per assembly: 2 ~~$2.13~~ $1.63 - + Add to cart
43	NUT, FLANGE, (4MM) Part #: 94050-04000 Required per assembly: 8 ~~$2.26~~ $2.05 - + Add to cart
44	NUT, FLANGE, (6MM) Part #: 94050-06000 Required per assembly: 2 ~~$1.73~~ $0.91 - + Add to cart
45	WASHER, PLAIN, (6MM) Part #: 94101-06800 Required per assembly: 1 Not Available
46	WASHER, SPRING, (6MM) Part #: 94111-06000 Required per assembly: 2 ~~$1.98~~ $1.31 - + Add to cart
47	BOLT, FLANGE, (6X10) Part #: 95701-06010-07 Required per assembly: 1 ~~$2.63~~ $2.43 - + Add to cart
48	BOLT, FLANGE, (6X14) Part #: 95701-06014-00 Required per assembly: 1 ~~$2.04~~ $1.39 - + Add to cart
