Control Panel (1) replacement parts for Honda Power Equipment EU3000IS

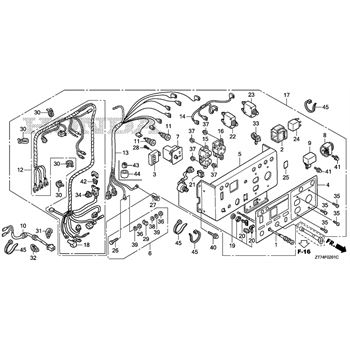

OEM Parts Honda Power Equipment Honda Power Equipment EU3000IS Control Panel (1)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	CABLE, CHOKE Part #: 17950-ZS9-003 Required per assembly: 1 Note: (Honda Code 5989868) $30.22 $22.24 - + Add to cart
02	IGNITION UNIT Part #: 30585-ZS9-A02 Required per assembly: 1 $112.62 $102.38 - + Add to cart
03	MARK, CONTROL, PANEL Part #: 31406-ZS9-A30 Required per assembly: 1 Note: (Honda Code 6013858) $100.46 $72.83 - + Add to cart
04	PANEL, CONTROL Part #: 31420-ZS9-A31 Required per assembly: 1 Note: (Honda Code 6013874) $115.98 $85.35 - + Add to cart
05	TERMINAL, SET, GROUND Part #: 31428-899-840 Required per assembly: 1 Note: (Honda Code 3639192) $23.08 $16.98 - + Add to cart
06	RECEPTACLE, D.C. Part #: 31460-ZS9-A01 Required per assembly: 1 Note: (Honda Code 5990056) $72.50 $53.35 - + Add to cart
07	RECTIFIER ASSEMBLY Part #: 31710-ZS9-A02 Required per assembly: 1 Note: (Honda Code 8628141) $24.04 $17.43 - + Add to cart
08	RECTIFIER, REGULATOR Part #: 31750-ZS9-A03 Required per assembly: 1 $52.64 $38.73 - + Add to cart
09	WIRE, HARNESS, ENGINE Part #: 32110-ZS9-A00 Required per assembly: 1 Note: (Honda Code 5990072) $34.74 $25.56 - + Add to cart
10	SOCKET, COMPOSITE Part #: 32139-ZS9-A01 Required per assembly: 2 Note: (Honda Code 6013908) $39.42 $29.01 - + Add to cart
11	WIRE HARNESS ASSEMBLY Part #: 32150-ZS9-A31 Required per assembly: 1 Note: (Honda Code 6013916) Not Available
11	WIRE HARNESS ASSEMBLY Part #: 32150-ZS9-A32 Required per assembly: 1 Note: (Honda Code 6389118) $189.72 $139.61 - + Add to cart
12	WIRE HARNESS ASSEMBLY Part #: 32196-ZS9-A31 Note: (Honda Code 6013932) (SUB) $130.14 $95.77 - + Add to cart
13	RECEPTACLE Part #: 32330-Z03-C31 Note: (20A/125V) (Honda Code 6389076) $49.28 $36.26 - + Add to cart
14	RECPTL (30A/125V) Part #: 32332-ZB4-630 Required per assembly: 1 $45.20 $34.26 - + Add to cart
15	PANEL, ASSEMBLY, CONTROL Part #: 32340-ZS9-A31 Required per assembly: 1 Note: (Honda Code 6005847) $952.88 $690.84 - + Add to cart
15	PANEL, ASSEMBLY, CONTROL Part #: 32340-ZS9-A32 Required per assembly: 1 Note: (Honda Code 6389126) $1,262.72 $929.20 - + Add to cart
16	COVER Part #: 32412-MJ6-000 Required per assembly: 1 Not Available
17	SWITCH, COMBINATION Part #: 35100-ZB4-023 Required per assembly: 1 Note: (Honda Code 8756553) $135.84 $102.96 - + Add to cart
18	KEY Part #: 35111-880-013 Required per assembly: 2 $11.00 $8.59 - + Add to cart
19	SWITCH Part #: 36214-ZS9-A01 Required per assembly: 1 $23.92 $17.60 - + Add to cart
20	RELAY, STARTER Part #: 38501-KG8-004 Required per assembly: 1 $54.39 $45.36 - + Add to cart
21	SUSPENSION Part #: 38506-KG8-004 Not Available
22	MARK, FUSE Part #: 87117-ZS9-A60 Required per assembly: 1 Note: (Honda Code 6014310) $5.08 $4.74 - + Add to cart
23	BOLT, HEX., (6X28) Part #: 90011-899-840 Required per assembly: 1 Note: (6X28) (Honda Code 3479797) $3.18 - + Add to cart
24	BOLT (6X12) (CT200) Part #: 90013-883-000 Required per assembly: 1 $2.55 $2.36 - + Add to cart
25	SCREW, PAN, (5X13) Part #: 90108-MN0-000 Required per assembly: 1 $2.78 $2.58 - + Add to cart
26	RETAINER (6MM) Part #: 90501-ZA7-640 Required per assembly: 1 Note: (6MM) (Honda Code 3479805) $3.70 - + Add to cart
27	TIE, CABLE Part #: 90672-ZB4-003 Required per assembly: 4 Note: (Honda Code 2279966) $5.68 $5.18 - + Add to cart
28	CLIP, HARN, (25MM) Part #: 90683-SA0-003 Required per assembly: 1 $9.95 $9.29 - + Add to cart
29	CLIP, HARNESS Part #: 90691-ZB7-003 Required per assembly: 1 Note: (Honda Code 2539146) $4.02 $3.96 - + Add to cart
30	CLIP Part #: 91565-SH3-003 Required per assembly: 1 Note: (BROWN) (Honda Code 2787489) $6.02 $5.81 - + Add to cart
31	SCREW, PAN, (4X10) Part #: 93500-04010-0H Required per assembly: 4 $1.95 $1.80 - + Add to cart
32	NUT, HEX., (6MM) Part #: 94001-06390-0S Required per assembly: 2 Note: (6MM) (Honda Code 1240720) $2.61 $2.42 - + Add to cart
33	NUT, FLANGE, (4MM) Part #: 94050-04080 Required per assembly: 4 $2.27 $2.10 - + Add to cart
34	WASHER, PLAIN, (6MM) Part #: 94101-06800 Required per assembly: 1 Not Available
35	WASHER, SPRING, (6MM) Part #: 94111-06800 Required per assembly: 2 $2.17 $2.00 - + Add to cart
36	BOLT, FLANGE, (6X10) Part #: 95701-06010-00 Required per assembly: 4 $2.29 $2.12 - + Add to cart
37	BOLT, FLANGE, (6X12) Part #: 95701-06012-00 Required per assembly: 2 $2.63 $2.44 - + Add to cart
38	FUSE, BLADE, (5A) Part #: 98200-30500 Required per assembly: 1 $2.33 $2.16 - + Add to cart
39	CUSHION Part #: 30401-GA7-000 Not Available
40	RELAY, POWER, (5P) Part #: 38510-ZS9-A01 Required per assembly: 1 Note: (5P) (Honda Code 6389134) $36.00 $27.29 - + Add to cart
41	CLIP, WIRE, HARNESS Part #: 91550-SE0-003 Required per assembly: 1 Note: (GRAY) (Honda Code 2440212) $12.84 $11.34 - + Add to cart
