Frame replacement parts for Honda Power Equipment EU6500IS

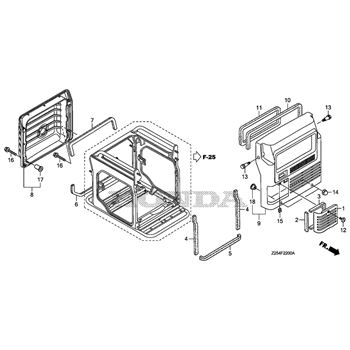

OEM Parts Honda Power Equipment Honda Power Equipment EU6500IS Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	BRACKET Part #: 32103-Z11-000 Required per assembly: 1 Note: (Honda Code 7776818) $11.61 - + Add to cart
02	CABLE, SUB-GROUND Part #: 32610-Z11-A00 Required per assembly: 1 Note: (Honda Code 7776974) $6.66 - + Add to cart
03	FRAME NH105 Part #: 50305-Z25-000ZA Required per assembly: 1 Note: (Honda Code 8584039) (MAT BLACK) (MAT BLACK) ~~$421.90~~ $310.31 - + Add to cart
04	FRAME, FR. Part #: 63640-Z25-000 Required per assembly: 1 Note: (Honda Code 8554081) ~~$229.14~~ $168.54 - + Add to cart
05	SEAL, FR., FRAME Part #: 63642-Z25-000 Required per assembly: 1 Note: (Honda Code 8554099) Not Available
05	SEAL, FR., FRAME Part #: 63642-Z25-010 Required per assembly: 1 Note: (Honda Code 9196411) $11.00 - + Add to cart
06	RUBBER A Part #: 63776-Z11-000 Required per assembly: 1 Note: (Honda Code 7777493) ~~$25.06~~ $21.33 - + Add to cart
07	RUBBER B Part #: 63778-Z11-000 Required per assembly: 1 Note: (Honda Code 7777501) $10.68 - + Add to cart
08	BRACKET, FR., NH105 Part #: 68322-Z11-000ZA Note: (MAT BLACK) (Honda Code 7777519) (MAT BLACK) $11.61 - + Add to cart
09	BRACKET, RR. Part #: 68323-Z11-000 Required per assembly: 1 Note: (Honda Code 7777527) ~~$24.28~~ $21.02 - + Add to cart
10	RUBBER (LOWER) Part #: 68325-ZC2-000 Required per assembly: 1 Note: (LOWER) (Honda Code 2279677) ~~$40.50~~ $29.78 - + Add to cart
11	RUBBER (LOWER) Part #: 68325-Z11-000 Required per assembly: 2 Note: (LOWER) (Honda Code 7777535) ~~$22.30~~ $19.68 - + Add to cart
12	RUBBER, L., (LOWER) Part #: 68326-Z11-000 Required per assembly: 1 Note: (LOWER) (Honda Code 7777543) ~~$15.10~~ $14.56 - + Add to cart
13	RUBBER, STOPPER Part #: 68346-ZC3-700 Required per assembly: 3 ~~$2.94~~ $2.69 - + Add to cart
14	RUBBER, BATTERY, BOX Part #: 83618-GF0-751 Required per assembly: 4 $5.38 - + Add to cart
15	WASHER, LOCK, (6MM) Part #: 90432-898-000 Required per assembly: 1 ~~$2.01~~ $1.35 - + Add to cart
16	NUT, FLANGE, (6MM) Part #: 94050-06000 Required per assembly: 1 ~~$1.73~~ $0.91 - + Add to cart
17	NUT, FLANGE, (8MM) Part #: 94050-08000 Required per assembly: 4 Note: Sold in multiples of 5 only ~~$2.01~~ $1.41 - + Add to cart
18	NUT, FLANGE, (10MM) Part #: 94050-10000 Required per assembly: 5 $2.47 - + Add to cart
19	BAND, F, BATTERY Part #: 95012-17001 Required per assembly: 1 $10.08 - + Add to cart
20	BOLT, FLANGE, (8X12) Part #: 95701-08012-00 Required per assembly: 5 ~~$2.17~~ $1.57 - + Add to cart
21	BOLT, FLANGE, (8X30) Part #: 95701-08030-00 Required per assembly: 2 ~~$2.17~~ $1.57 - + Add to cart
22	BRACKET, RR. Part #: 68323-Z11-R30 Required per assembly: 1 Note: (Honda Code 8867129) ~~$20.52~~ $18.66 - + Add to cart
