Honda Power Equipment EX1000 - Control Panel

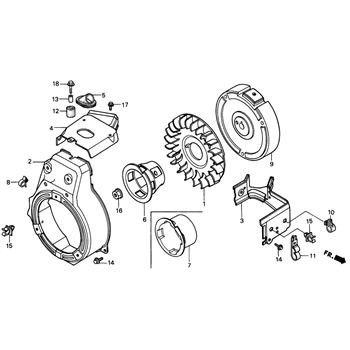

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
02

GROMMET A

Part #: 17247-240-000 Required per assembly: 1
$4.11
$3.74
-
+
Add to cart
03

CLAMP, TERMINAL

Part #: 31468-ZC0-003 Required per assembly: 1 Note: (B) (Honda Code 2954287)
Not Available
04

CLAMP, TERMINAL

Part #: 31469-ZC0-003 Required per assembly: 1 Note: (A) (Honda Code 2954295)
Not Available
05

HOLDER, CONNECTOR

Part #: 32301-ZC0-003 Required per assembly: 1 Note: (Honda Code 2065373)
Not Available
06

SCREW (4X6)

Part #: 32339-ZC0-003 Required per assembly: 3 Note: (4X6) (Honda Code 2458859)
Not Available
07

PANEL, CONTROL, (A2)

Part #: 32340-ZC0-A31 Required per assembly: 1 Note: (A2) (Honda Code 5377593)
Not Available
07

PANEL, ASSEMBLY, CONTROL

Part #: 32340-ZC0-632 Required per assembly: 1 Note: (Honda Code 4693594)
Not Available
07

PANEL, ASSEMBLY, CONTROL

Part #: 32340-ZC0-634 Required per assembly: 1 Note: (Honda Code 4775326)
Not Available
08

COLLAR, PANEL

Part #: 32344-892-000 Required per assembly: 3 Note: (Honda Code 0865774)
Not Available
09

MARK, PANEL

Part #: 32345-ZC0-650 Required per assembly: 1 Note: (Honda Code 2065399)
Not Available
09

MARK, PANEL

Part #: 32345-ZC0-653 Required per assembly: 1 Note: (E) (Honda Code 4775334)
Not Available
10

BRKT, ENGINE, SWITCH

Part #: 32375-ZA7-000 Required per assembly: 1 Note: (Honda Code 1410984)
Not Available
11

PLATE, BASE

Part #: 32410-ZC0-631 Required per assembly: 1 Note: (Honda Code 2067106)
Not Available
11

PLATE, BASE

Part #: 32410-ZC0-632 Required per assembly: 1 Note: (Honda Code 4297438)
Not Available
12

CASE

Part #: 32421-ZA7-003 Required per assembly: 1 Note: (Honda Code 1425545)
Not Available
13

WIRE, ASSEMBLY, CHARGE

Part #: 32650-825-015
$17.50
$12.69
-
+
Add to cart
13

WIRE, ASSEMBLY, CHARGE

Part #: 32650-825-015
$17.50
$12.69
-
+
Add to cart
14

GROMMET

Part #: 32901-892-003 Required per assembly: 1 Note: (Honda Code 0947440)
Not Available
15

BAND

Part #: 32902-892-003 Required per assembly: 2
$4.38
$4.22
-
+
Add to cart
16

BULB, DASH, (6V, 3W)

Part #: 34902-202-000 Required per assembly: 1 Note: Sold in multiples of 10 only
$3.99
-
+
Add to cart
17

SENSOR, THERMOSTAT

Part #: 35690-ZC0-A31 Required per assembly: 1 Note: (Honda Code 5377676)
Not Available
18

SWITCH, ASSEMBLY, STOP

Part #: 36100-ZA7-000 Required per assembly: 1 Note: (Honda Code 1411008)
Not Available
19

BRACKET ASSEMBLY

Part #: 36110-ZA7-000 Required per assembly: 1 Note: (Honda Code 1411016)
Not Available
20

KNOB, ENGINE, SWITCH

Part #: 36112-ZA7-000 Required per assembly: 1 Note: (Honda Code 1411024)
$13.26
$9.76
-
+
Add to cart
21

LEVER, PETCOCK

Part #: 36115-ZA7-000 Required per assembly: 1 Note: (Honda Code 1411032)
Not Available
22

METER, FREQUENCY

Part #: 37500-ZA7-003 Required per assembly: 1 Note: (Honda Code 1411065)
Not Available
23

LENS, LAMP

Part #: 37901-ZA7-013 Required per assembly: 1 Note: (Honda Code 1411073)
Not Available
24

CASE, LAMP

Part #: 37902-ZA7-013 Required per assembly: 1 Note: (Honda Code 1411750)
$10.48
$8.10
-
+
Add to cart
25

COLLAR

Part #: 37903-ZC0-701 Required per assembly: 1 Note: (Honda Code 4775342)
Not Available
26

PROTECTOR (12A)

Part #: 38240-ZA7-000 Required per assembly: 1 Note: (12A) (Honda Code 1411081)
Not Available
27

PROTR, CIRCUIT, (8A)

Part #: 38241-ZC0-630 Required per assembly: 1 Note: (8A) (Honda Code 2065431)
Not Available
28

COVER

Part #: 38243-ZC0-003 Required per assembly: 2 Note: (Honda Code 4580999)
$5.72
$5.26
-
+
Add to cart
29

CAP, BREAKER

Part #: 38251-892-003 Required per assembly: 2 Note: (Honda Code 1437235)
Not Available
30

SPRING, RETURN

Part #: 38253-ZA8-631 Required per assembly: 2 Note: (Honda Code 1888692)
Not Available
31

HOLDER, BREAKER

Part #: 38254-ZA7-003 Required per assembly: 2 Note: (Honda Code 1425578)
Not Available
32

CLAMP, BRAKE, PIPE

Part #: 46392-SC2-003 Required per assembly: 1 Note: (GRAY) (Honda Code 4547576)
$4.58
-
+
Add to cart
34

BOLT (6X25)

Part #: 90001-ZC0-003 Required per assembly: 3 Note: (6X25) (Honda Code 2954303)
$3.84
$3.83
-
+
Add to cart
35

NUT, CLAMP, (6MM)

Part #: 90201-ZC0-003 Required per assembly: 3 Note: (6MM) (Honda Code 2954311)
Not Available
36

NUT, SPECIAL, (6MM)

Part #: 90381-812-710 Required per assembly: 1 Note: (6MM) (Honda Code 0239814)
$2.95
$2.74
-
+
Add to cart
37

CLIP, PURSE, LOCK

Part #: 90630-751-000 Required per assembly: 2
$2.99
$2.78
-
+
Add to cart
38

SCREW-WASHER (5X16)

Part #: 93891-05016-08 Required per assembly: 2
$2.18
$2.02
-
+
Add to cart
39

SCREW-WASHER (5X12)

Part #: 93894-05012-08 Required per assembly: 3
$2.01
$1.86
-
+
Add to cart
40

SCREW, TAP, (4X10)

Part #: 93901-24220 Required per assembly: 2
$3.93
-
+
Add to cart
40

SCREW, TAP, (4X10)

Part #: 93901-34220 Required per assembly: 2
$1.90
$1.75
-
+
Add to cart
41

SCREW, TAP, (4X20)

Part #: 93901-34520 Required per assembly: 2
$1.94
$1.78
-
+
Add to cart
41

SCREW, TAP, (4X20)

Part #: 93901-24520 Required per assembly: 2 Note: (4X20) (Honda Code 1642354)
$1.64
$1.51
-
+
Add to cart
42

SCREW, TAPPING, (3X8)

Part #: 93901-32120 Required per assembly: 6
$1.87
$1.73
-
+
Add to cart
43

SCREW, TAP, (3X16)

Part #: 93901-32420 Required per assembly: 2
$1.95
$1.80
-
+
Add to cart
44

SCREW, TAPPING, (3X8)

Part #: 93903-32120 Required per assembly: 4 Note: (3X8) (Honda Code 0995951)
Not Available
45

SCREW, TAP, (4X16)

Part #: 93903-34420 Required per assembly: 1
$1.87
$1.73
-
+
Add to cart
46

NUT, HEX., (4MM)

Part #: 94001-04390-0S Required per assembly: 2
Not Available
47

WASHER, PLAIN, (6MM)

Part #: 94101-06800 Required per assembly: 1
Not Available
48

E-RING (3MM)

Part #: 94540-03010 Required per assembly: 3
$2.13
$1.97
-
+
Add to cart
