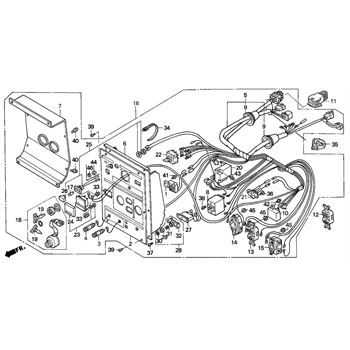

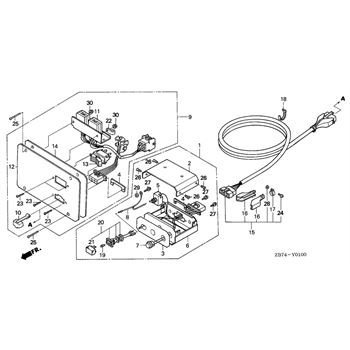

Honda Power Equipment EX3300S - Control Panel

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
01

ALERT, UNIT, OIL

Part #: 15520-ZB2-003 Required per assembly: 1 Note: (Honda Code 1496520)
Not Available
02

PLATE

Part #: 31406-ZB7-630 Required per assembly: 1 Note: (Honda Code 2386548)
Not Available
02

PLATE

Part #: 31406-ZB7-631 Required per assembly: 1 Note: (Honda Code 2946606)
Not Available
03

TERMINAL

Part #: 31408-880-000 Required per assembly: 1 Note: (+) (Honda Code 0475103)
$44.90
$34.01
-
+
Add to cart
04

TERMINAL

Part #: 31409-880-000 Required per assembly: 1 Note: (-) (Honda Code 0475111)
$44.90
$34.01
-
+
Add to cart
05

HARNESS, CONTROL

Part #: 31418-ZB7-631 Required per assembly: 1 Note: (Honda Code 2386555)
Not Available
06

PANEL, CONTROL

Part #: 31420-ZB8-631 Required per assembly: 1 Note: (EXS-A) (Honda Code 2297547)
Not Available
07

COVER, CONTROL

Part #: 31425-ZB7-003 Required per assembly: 1 Note: (Honda Code 2297554)
Not Available
08

BREAKER (13.5A)

Part #: 31430-ZB7-630 Required per assembly: 1 Note: (13.5A) (Honda Code 2386563)
Not Available
09

GROMMET, MAIN, WIRE

Part #: 31482-ZB4-003 Required per assembly: 2 Note: (Honda Code 2304079)
$16.68
$15.80
-
+
Add to cart
10

DIODE ASSEMBLY

Part #: 31710-ZB7-A02 Required per assembly: 1
$104.04
$78.81
-
+
Add to cart
11

CONNECTOR ASSEMBLY

Part #: 32130-ZB7-000 Note: (Honda Code 2386985) (Optional)
$24.20
$20.83
-
+
Add to cart
12

RECEPTACLE ASSEMBLY

Part #: 32330-Z07-C30 Note: (125V-20A) (Honda Code 6728315) (MATSUSHITA)
$56.90
$43.12
-
+
Add to cart
12

RECEPTACLE ASSEMBLY

Part #: 32330-Z07-C30 Required per assembly: 1 Note: (125V-20A) (Honda Code 6728315) (MATSUSHITA)
$56.90
$43.12
-
+
Add to cart
13

RECEPTACLE

Part #: 32330-899-631 Required per assembly: 1 Note: (20A/125V) (MATSUSHITA) (Honda Code 2962991)
$67.80
$51.36
-
+
Add to cart
14

RECPTL (30A/125V)

Part #: 32332-ZB4-630 Required per assembly: 1
$45.20
$34.25
-
+
Add to cart
16

PANEL, ASSEMBLY, CONTROL

Part #: 32340-ZB7-631 Required per assembly: 1 Note: (Honda Code 2386571)
$2,549.16
$1,784.41
-
+
Add to cart
16

PANEL, ASSEMBLY, CONTROL

Part #: 32340-ZB7-632 Required per assembly: 1 Note: (Honda Code 4775961)
$2,930.80
$2,082.33
-
+
Add to cart
17

BULB (12V/2W)

Part #: 34908-GE0-701 Required per assembly: 1
$3.91
-
+
Add to cart
18

SWITCH, COMBINATION

Part #: 35100-ZA0-023 Required per assembly: 1
$111.24
$84.28
-
+
Add to cart
19

KEY

Part #: 35111-880-013 Required per assembly: 2
$11.42
-
+
Add to cart
20

THROTTLE, UNIT, AUTO

Part #: 36210-ZB4-014 Required per assembly: 1
$249.08
$183.20
-
+
Add to cart
21

SWITCH

Part #: 36214-ZB4-023 Required per assembly: 1
$39.48
$29.04
-
+
Add to cart
22

SWITCH, VOLT, CHANGE

Part #: 36221-899-630 Required per assembly: 1 Note: (Honda Code 1240050)
$212.66
$161.10
-
+
Add to cart
23

METER, VOLT, (300V)

Part #: 37450-ZB4-651 Required per assembly: 1 Note: (Honda Code 2281467)
Not Available
24

LENS, METER

Part #: 37451-ZB4-003 Required per assembly: 1 Note: (Honda Code 2279461)
$19.40
$17.77
-
+
Add to cart
25

SOCKET, ASSEMBLY, LAMP

Part #: 37560-ZA0-801 Required per assembly: 1 Note: (GREEN) (Honda Code 1497270)
Not Available
26

LENS

Part #: 37563-ZA0-801 Required per assembly: 1 Note: (GREEN) (Honda Code 4011490)
$5.04
-
+
Add to cart
27

PROTECTOR, CIRCUIT

Part #: 38240-898-000 Required per assembly: 1 Note: (DC) (Honda Code 1106426)
$35.44
$26.86
-
+
Add to cart
28

LENS, PROTECTOR

Part #: 38250-898-000 Required per assembly: 1 Note: (Honda Code 1106434)
$23.54
$20.44
-
+
Add to cart
29

LENS

Part #: 38251-898-000 Required per assembly: 1 Note: (Honda Code 2386613)
$8.14
-
+
Add to cart
30

CAP, LENS

Part #: 38252-898-000 Required per assembly: 1 Note: (Honda Code 2085587)
$6.95
-
+
Add to cart
31

SPRING, COIL

Part #: 38253-898-000 Required per assembly: 1
$2.53
$2.11
-
+
Add to cart
32

HOLDER, LENS

Part #: 38254-898-000 Required per assembly: 1 Note: (Honda Code 2386621)
$9.84
-
+
Add to cart
33

NUT, FLANGE, (3MM)

Part #: 90201-ZB4-003 Required per assembly: 2 Note: (3MM) (Honda Code 3475688) (Optional)
$2.60
$2.13
-
+
Add to cart
34

TIE, CABLE

Part #: 90672-ZB4-003 Required per assembly: 1 Note: (Honda Code 2279966)
$6.08
-
+
Add to cart
35

STRAP, HARN, (25MM)

Part #: 90690-SA0-003 Required per assembly: 2
$9.46
-
+
Add to cart
36

SCREW, PAN, (3X6)

Part #: 93500-03006-0H Required per assembly: 2
$1.87
$1.24
-
+
Add to cart
37

SCREW, PAN, (3X12)

Part #: 93500-03012-0H Required per assembly: 2
$1.87
$1.15
-
+
Add to cart
38

SCREW, PAN, (4X6)

Part #: 93500-04006-0H Required per assembly: 2
$1.95
$1.35
-
+
Add to cart
39

SCREW, PAN, (5X10)

Part #: 93500-05010-0G Required per assembly: 6
$1.95
$1.35
-
+
Add to cart
40

SCREW-WASHER (4X8)

Part #: 93892-04008-08 Required per assembly: 4
$2.18
$1.70
-
+
Add to cart
41

SCREW-WASHER (4X10)

Part #: 93893-04010-08 Required per assembly: 1
$2.37
$1.85
-
+
Add to cart
42

SCREW-WASHER (4X12)

Part #: 93893-04012-08 Required per assembly: 1
$2.37
$1.98
-
+
Add to cart
43

SCREW-WASHER (5X12)

Part #: 93893-05012-08 Required per assembly: 1
$2.37
$1.98
-
+
Add to cart
44
Honda 94001-03080-0S Nut, Hex., (3Mm)

NUT, HEX., (3MM)

Part #: 94001-03080-0S Required per assembly: 2
$1.76
$1.60
-
+
Add to cart
45

NUT, FLANGE, (4MM)

Part #: 94050-04080 Required per assembly: 6
$2.27
$1.85
-
+
Add to cart
46

WASHER, SPRING, (3MM)

Part #: 94111-03800 Required per assembly: 2
$1.72
$0.91
-
+
Add to cart
