Carburetor replacement parts for Honda Power Equipment EX4500S

OEM Parts Honda Power Equipment Honda Power Equipment EX4500S Carburetor

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	GASKET SET Part #: 16010-ZE3-701 Required per assembly: 1 Note: (Honda Code 2386233) $9.79 - + Add to cart
02	VALVE, SET, FLOAT Part #: 16011-ZA0-931 Required per assembly: 1 Note: (Honda Code 2059236) ~~$44.34~~ $32.13 - + Add to cart
03	FLOAT SET Part #: 16013-ZA0-931 Required per assembly: 1 Note: (Honda Code 2059244) ~~$47.78~~ $35.15 - + Add to cart
04	CHAMBER, SET, FLOAT Part #: 16015-ZA0-931 Required per assembly: 1 Note: (Honda Code 2386241) (CARBURETOR NO.) ~~$77.76~~ $57.19 - + Add to cart
05	SCREW, SET, PILOT Part #: 16016-ZE0-005 Required per assembly: 1 Note: (Honda Code 1441500) ~~$15.10~~ $14.39 - + Add to cart
07	SCREW, SET, DRAIN Part #: 16024-124-760 Required per assembly: 1 $14.02 - + Add to cart
08	SCREW SET Part #: 16028-ZE3-701 Required per assembly: 1 Note: (Honda Code 2386258) ~~$27.20~~ $22.89 - + Add to cart

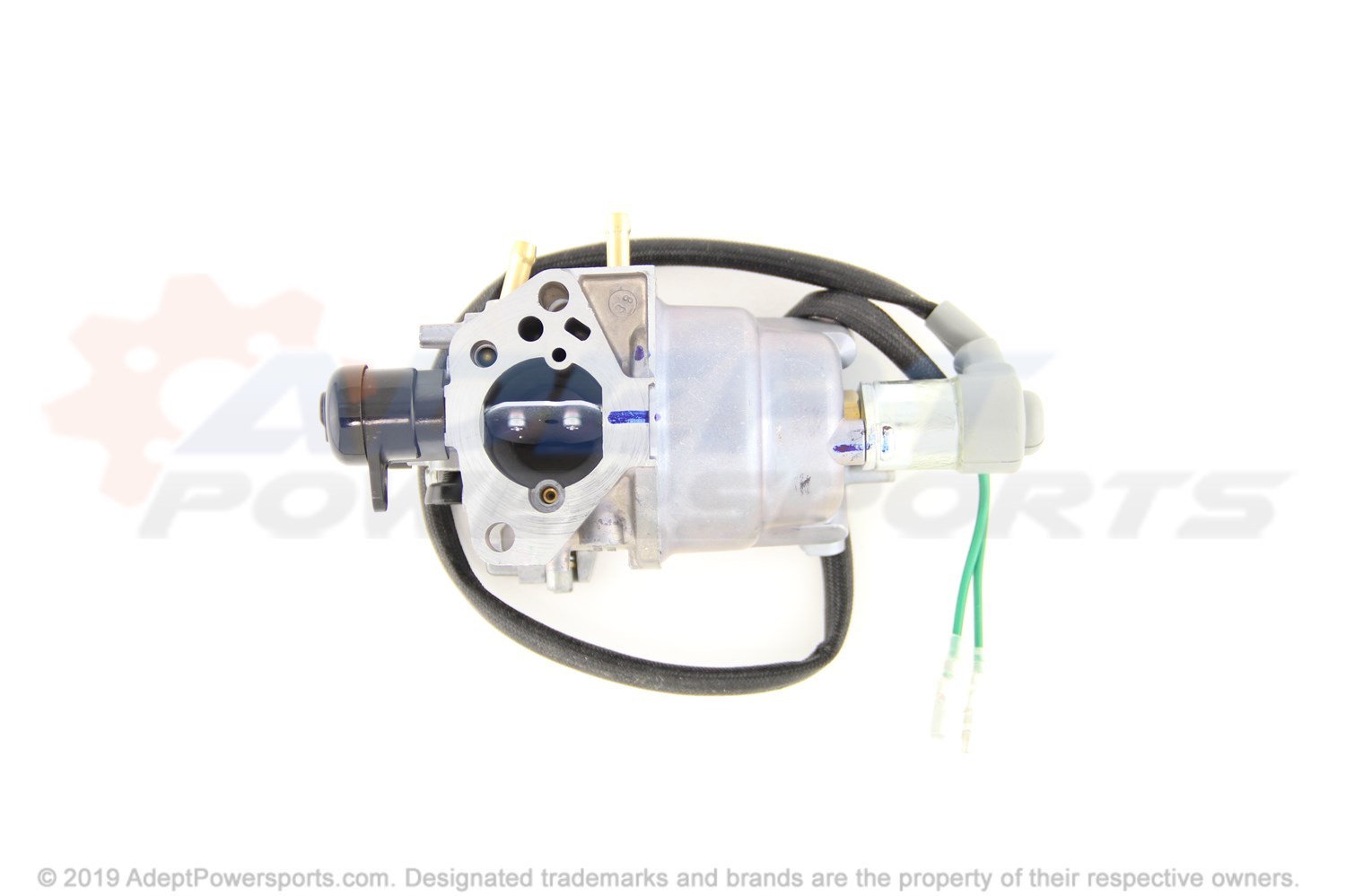

09	CARBURETOR (BE38A H) Part #: 16100-ZB8-065 Required per assembly: 1 ~~$237.02~~ $223.06 - + Add to cart
10	SCREW, THROTTLE, STOP Part #: 16124-ZE0-005 Required per assembly: 1 Note: (Honda Code 1441559) ~~$17.88~~ $16.49 - + Add to cart
11	CAP, CHOKE, DUST Part #: 16148-141-881 Required per assembly: 1 $6.89 - + Add to cart
12	NOZZLE, MAIN Part #: 16166-ZE3-701 Required per assembly: 1 Note: (Honda Code 2418291) (CARBURETOR NO.) ~~$32.90~~ $25.06 - + Add to cart
14	INSULATOR, CARB Part #: 16211-ZB8-000 Required per assembly: 1 Note: (Honda Code 2297083) ~~$23.46~~ $20.40 - + Add to cart
15	GASKET, CARBURETOR Part #: 16221-ZB7-800 Required per assembly: 1 Note: (Honda Code 4011276) ~~$23.08~~ $20.57 - + Add to cart
16	GASKET, INSULATOR Part #: 16223-ZE3-800 Required per assembly: 1 $2.88 - + Add to cart
17	VALVE, SOLENOID Part #: 16230-ZE3-702 Required per assembly: 1 Note: (Honda Code 8740268) ~~$73.48~~ $53.25 - + Add to cart
18	STAY, ASSEMBLY, SOLENOID Part #: 16260-ZB7-000 Required per assembly: 1 Note: (Honda Code 2297109) ~~$194.72~~ $149.00 - + Add to cart
19	STAY, CHOKE, SOLENOID Part #: 16261-ZB7-000 Required per assembly: 1 Note: (Honda Code 2297117) ~~$33.12~~ $25.27 - + Add to cart
20	LEVER Part #: 16262-ZB7-000 Required per assembly: 1 Note: (Honda Code 2297125) $8.55 - + Add to cart
21	JOINT, ROD Part #: 16263-ZA0-000 Required per assembly: 1 Note: (Honda Code 1307677) $5.50 - + Add to cart
22	ROD, CHOKE, SOLENOID Part #: 16264-ZB7-000 Required per assembly: 1 Note: (Honda Code 2297133) ~~$2.98~~ $2.75 - + Add to cart
23	SOLENOID, CHOKE Part #: 16265-ZB7-000 Required per assembly: 1 Note: (Honda Code 2297141) ~~$177.48~~ $128.61 - + Add to cart
24	SPACER Part #: 16266-ZB7-000 Required per assembly: 1 Note: (Honda Code 2297158) $12.92 - + Add to cart
25	SOLENOID Part #: 16267-ZB7-003 Required per assembly: 1 Note: (Honda Code 2418309) ~~$125.14~~ $94.80 - + Add to cart
26	GASKET, AIR, CLEANER Part #: 16269-ZA0-800 Required per assembly: 1 Note: (Honda Code 3755212) $2.67 - + Add to cart
27	SCREW-WASHER (5X12) Part #: 93892-05012-08 Required per assembly: 2 $1.70 - + Add to cart
28	NUT, HEX., (3MM) Part #: 94001-03000-0S Required per assembly: 2 ~~$2.07~~ $1.44 - + Add to cart
29	WASHER, SPRING, (3MM) Part #: 94111-03800 Required per assembly: 2 ~~$1.72~~ $0.91 - + Add to cart
30	JET, MAIN, (#92) Part #: 99101-124-0920 Note: (#92) (Honda Code 0761387) (Optional) ~~$11.94~~ $11.79 - + Add to cart
30	JET, MAIN, (#95) Part #: 99101-124-0950 Note: (#95) (Honda Code 0761395) ~~$12.76~~ $12.66 - + Add to cart
30	JET, MAIN, (#98) Part #: 99101-124-0980 Required per assembly: 1 Note: (#98) (Honda Code 0761403) (Optional) Not Available
32	JET, SET, PILOT, (#38) Part #: 99204-ZE2-0380 Required per assembly: 1 Note: (#38) (Honda Code 2159820) ~~$23.18~~ $20.01 - + Add to cart
