Control Panel replacement parts for Honda Power Equipment EX5500K2

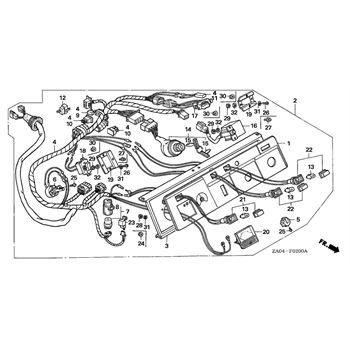

OEM Parts Honda Power Equipment Honda Power Equipment EX5500K2 Control Panel

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	MARK, CONTROL, PANEL Part #: 31406-ZA0-832 Required per assembly: 1 Note: (Honda Code 8006934) $104.58 $76.95 - + Add to cart
02	PNL, CONTROL, NH105 Part #: 31410-ZA0-D31ZA Note: (Honda Code 5141064) (MAT BLACK) (MAT BLACK) $1,376.68 $998.09 - + Add to cart
03	PNL, CONTROL, NH105 Part #: 31411-ZA0-831ZA Required per assembly: 1 Note: (MAT BLACK) (Honda Code 2080984) (MAT BLACK) $239.26 $176.06 - + Add to cart
04	HARNESS, CONTROL Part #: 31418-ZA0-D01 Required per assembly: 1 Note: (Honda Code 5049713) $407.08 $299.56 - + Add to cart
05	KNOB, ADJUSTING Part #: 31461-898-000 Required per assembly: 1 Note: (Honda Code 1106343) $13.72 $10.09 - + Add to cart
06	RESISTOR, VARIABLE Part #: 31465-ZB4-023 Required per assembly: 1 Note: (Honda Code 8819823) $139.30 $105.57 - + Add to cart
07	RELAY ASSEMBLY Part #: 31660-ZA0-801 Required per assembly: 1 Note: (Honda Code 2081115) $49.68 $36.55 - + Add to cart
08	SUSPENSION Part #: 31661-ZA0-801 Required per assembly: 1 Note: (Honda Code 2081123) $22.20 $16.34 - + Add to cart
09	RECTIFIER, SILICON Part #: 31700-124-008 Required per assembly: 3 $29.60 $28.71 - + Add to cart
10	STACK, DIODE, (2.7A) Part #: 06317-ZA0-000 Required per assembly: 1 $111.08 $80.53 - + Add to cart
12	CONNECTOR ASSEMBLY Part #: 32130-ZA0-800 Required per assembly: 1 Note: (Honda Code 1308626) $14.68 $10.80 - + Add to cart
13	BULB (12V/2W) Part #: 34908-GE0-701 Required per assembly: 3 $3.91 $3.55 - + Add to cart
14	SWITCH, COMBINATION Part #: 35100-ZA0-023 Required per assembly: 1 $111.24 $81.85 - + Add to cart
15	KEY Part #: 35111-880-013 Required per assembly: 2 $11.00 $8.59 - + Add to cart
16	RELAY, ALERT Part #: 35520-ZA0-003 Required per assembly: 1 Note: (Honda Code 1280841) $310.86 $228.75 - + Add to cart
17	SWITCH, CONTROL Part #: 36130-ZA0-D02 Required per assembly: 1 Note: (Honda Code 8018566) $96.02 $70.66 - + Add to cart
17	SWITCH, CONTROL Part #: 36130-ZA0-800 Required per assembly: 1 Note: (Honda Code 1308733) Not Available
18	SWITCH, IDLE, CONTROL Part #: 36214-ZA0-D02 Required per assembly: 1 Note: (Honda Code 8018582) $81.20 $59.75 - + Add to cart
18	SWITCH, IDLE, CONTROL Part #: 36214-ZA0-800 Required per assembly: 1 Note: (Honda Code 1298827) Not Available
19	STAY, SWITCH Part #: 36217-ZA0-803 Required per assembly: 2 Note: (Honda Code 7964794) $7.06 $5.69 - + Add to cart
19	STAY, SWITCH Part #: 36217-ZA0-802 Required per assembly: 2 Note: (Honda Code 4743514) Not Available
20	METER, VOLT, (300V) Part #: 37450-ZA0-831 Required per assembly: 1 Note: (300V) (Honda Code 4730164) $250.62 $184.43 - + Add to cart
21	SOCKET, ASSEMBLY, LAMP Part #: 37560-ZA0-801 Required per assembly: 1 Note: (GREEN) (Honda Code 1497270) $43.96 $32.35 - + Add to cart
22	SOCKET, ASSEMBLY, LAMP Part #: 37570-ZA0-801 Required per assembly: 2 Note: (RED) (Honda Code 1804087) $47.78 $36.22 - + Add to cart
23	FUSE UNIT Part #: 38236-ZA0-003 Required per assembly: 1 Note: (Honda Code 4006128) Not Available
24	NUT, FLANGE, (3MM) Part #: 90201-ZB4-003 Required per assembly: 2 Note: (3MM) (Honda Code 3475688) (Optional) $2.60 $2.41 - + Add to cart
25	SCREW, PAN, (3X6) Part #: 93500-03006-0G Required per assembly: 3 Not Available
27	SCREW-WASHER (3X6) Part #: 93892-03006-08 Required per assembly: 4 $1.91 $1.77 - + Add to cart
30	NUT, FLANGE, (4MM) Part #: 94050-04080 Required per assembly: 6 $2.27 $2.10 - + Add to cart
32	WASHER, SPRING, (4MM) Part #: 94111-04800 Required per assembly: 4 $2.02 $1.87 - + Add to cart
