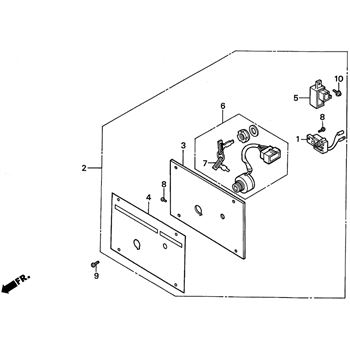

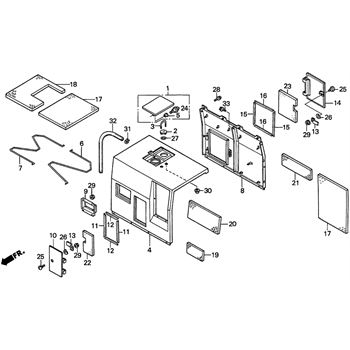

Honda Power Equipment EXW171S - Control Panel

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
01

PLATE

Part #: 31406-ZB8-830 Note: (Honda Code 2418374) (EXW-A)
Not Available
02

HARNESS, CONTROL

Part #: 31418-ZB7-831 Required per assembly: 1 Note: (EXW-A) (Honda Code 2418382)
Not Available
03

HARNESS, A.C., OUTPUT

Part #: 31419-ZB8-831 Note: (Honda Code 2418408) (EXW-A)
Not Available
04

PANEL, CONTROL

Part #: 31420-ZB7-831 Required per assembly: 1 Note: (EXW-A) (Honda Code 2418416)
Not Available
05

COVER, CONTROL

Part #: 31425-ZB7-813 Required per assembly: 1 Note: (Honda Code 2577179)
$90.94
$65.90
-
+
Add to cart
06

BREAKER (33.5A)

Part #: 31430-ZB4-610 Required per assembly: 1 Note: (33.5A) (Honda Code 2295467)
$265.98
$195.62
-
+
Add to cart
07

KNOB, ADJUSTING

Part #: 31461-ZA1-811 Required per assembly: 1 Note: (Honda Code 1458058)
$23.02
$20.12
-
+
Add to cart
08

RESISTOR, VARIABLE

Part #: 31466-ZB4-811 Required per assembly: 1 Note: (Honda Code 2295475)
Not Available
09

GROMMET, MAIN, WIRE

Part #: 31482-ZA1-811 Required per assembly: 1 Note: (Honda Code 1458090)
$10.65
-
+
Add to cart
10

WIRE ASSEMBLY

Part #: 31596-ZB8-831 Required per assembly: 1 Note: (+) (Honda Code 2418499)
Not Available
11

WIRE ASSEMBLY

Part #: 31597-ZB8-831 Required per assembly: 1 Note: (-) (Honda Code 2418515)
Not Available
12

WIRE ASSEMBLY

Part #: 31598-ZB8-811 Required per assembly: 1 Note: (REACTOR) (Honda Code 2418531)
Not Available
13

STACK, DIODE

Part #: 31710-ZA0-003 Required per assembly: 2 Note: (Honda Code 1280759)
Not Available
14

DIODE

Part #: 31710-ZA1-811 Required per assembly: 1 Note: (Honda Code 1458173)
Not Available
15

RECEPTACLE

Part #: 32330-Z03-C31 Note: (20A/125V) (Honda Code 6389076)
$49.28
$36.25
-
+
Add to cart
16

RECPTL (30A/125V)

Part #: 32332-ZB4-630 Required per assembly: 1
$45.20
$34.25
-
+
Add to cart
17

RECEPTACLE, PANEL

Part #: 32335-ZA1-830 Required per assembly: 2 Note: (Honda Code 1557636)
$127.82
$92.62
-
+
Add to cart
18

PANEL, ASSEMBLY, CONTROL

Part #: 32340-ZB8-831 Required per assembly: 1 Note: (EXW-A) (Honda Code 2418580)
Not Available
19

BULB (12V/2W)

Part #: 34908-GE0-701 Required per assembly: 1
$3.91
-
+
Add to cart
20

THROTTLE, UNIT, AUTO

Part #: 36210-ZB4-811 Required per assembly: 1 Note: (Honda Code 2295541)
$275.64
$202.74
-
+
Add to cart
21

SWITCH

Part #: 36214-ZB4-023 Required per assembly: 1
$39.48
$29.04
-
+
Add to cart
22

SWITCH ASSEMBLY

Part #: 36222-ZB4-811 Required per assembly: 1 Note: (Honda Code 2295558)
Not Available
23

RESISTOR, ADJUSTABLE

Part #: 37503-ZB4-811 Required per assembly: 1 Note: (Honda Code 2295566)
Not Available
24

RESISTOR

Part #: 37505-ZB7-813 Required per assembly: 1 Note: (Honda Code 2577187)
$155.78
$112.88
-
+
Add to cart
25

SOCKET, ASSEMBLY, LAMP

Part #: 37560-ZA0-801 Required per assembly: 1 Note: (GREEN) (Honda Code 1497270)
Not Available
26

TIE, CABLE

Part #: 90672-ZB7-811 Required per assembly: 7 Note: (Honda Code 2418697)
$4.67
-
+
Add to cart
27

CLIP, HARNESS

Part #: 90691-ZB7-003 Required per assembly: 1 Note: (Honda Code 2539146)
$4.51
-
+
Add to cart
28

SCREW, PAN, (3X6)

Part #: 93500-03006-0H Required per assembly: 4
$1.87
$1.24
-
+
Add to cart
29

SCREW, PAN, (4X6)

Part #: 93500-04006-0H Required per assembly: 2
$1.95
$1.35
-
+
Add to cart
30

SCREW, PAN, (4X10)

Part #: 93500-04010-0G Required per assembly: 3
$1.71
$0.89
-
+
Add to cart
31

SCREW, PAN, (4X10)

Part #: 93500-04010-3C Required per assembly: 3 Note: (4X10) (Honda Code 2295681)
$2.40
$1.85
-
+
Add to cart
32

SCREW, PAN, (5X10)

Part #: 93500-05010-0G Required per assembly: 6
$1.95
$1.35
-
+
Add to cart
33

SCREW-WASHER (5X12)

Part #: 93892-05012-08 Required per assembly: 1
$2.18
$1.70
-
+
Add to cart
34

SCREW-WASHER (4X10)

Part #: 93893-04010-08 Required per assembly: 8
$2.37
$1.85
-
+
Add to cart
35

SCREW-WASHER (4X20)

Part #: 93893-04020-08 Required per assembly: 3
$1.91
$1.22
-
+
Add to cart
36

NUT, HEX., (4MM)

Part #: 94001-04390-0S Required per assembly: 3
Not Available
37

NUT, FLANGE, (4MM)

Part #: 94050-04080 Required per assembly: 4
$2.27
$1.85
-
+
Add to cart
38

WASHER, PLAIN, (8MM)

Part #: 94101-08800 Required per assembly: 2
$2.92
$2.58
-
+
Add to cart
