Wire Harness replacement parts for Kymco MXU 150

OEM Parts Kymco Kymco MXU 150 Wire Harness

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

3051A	COIL ASSY IGN Part #: 3051A-LLB1-900 Required per assembly: 1 Currently Not Available
3860A	CONTROL ASSY LIGHTING ( Part #: 3860A-LCA5-E01 Required per assembly: 1 Currently Not Available**
30400	UNIT ASSY C.D.I Part #: 30400-KGG7-000 Required per assembly: 1 Currently Not Available
30700	CAP ASSY NOISE SUPPER Part #: 30700-KBE2-941 Required per assembly: 1 Currently Not Available
31600	REG REC COMP Part #: 31600-LBA7-900 Required per assembly: 1 Currently Not Available
32100	HARNESS WIRE Part #: 32100-LCA4-900 Required per assembly: 1 Currently Not Available
32101	SUB CORD Part #: 32101-LLB1-800 Required per assembly: 1 Currently Not Available
32411	CABLE BAT Part #: 32411-LLB1-900 Required per assembly: 1 Currently Not Available
35010-LCA4-90A	KEY SET Part #: 35010-LCA4-90A Required per assembly: 1 Currently Not Available
35010-LCA4-90B	KEY SET Part #: 35010-LCA4-90B Required per assembly: 1 Currently Not Available
35850-KHB4-90A	SET START MAG35850 Part #: KHB4-90A- Required per assembly: 1 Currently Not Available

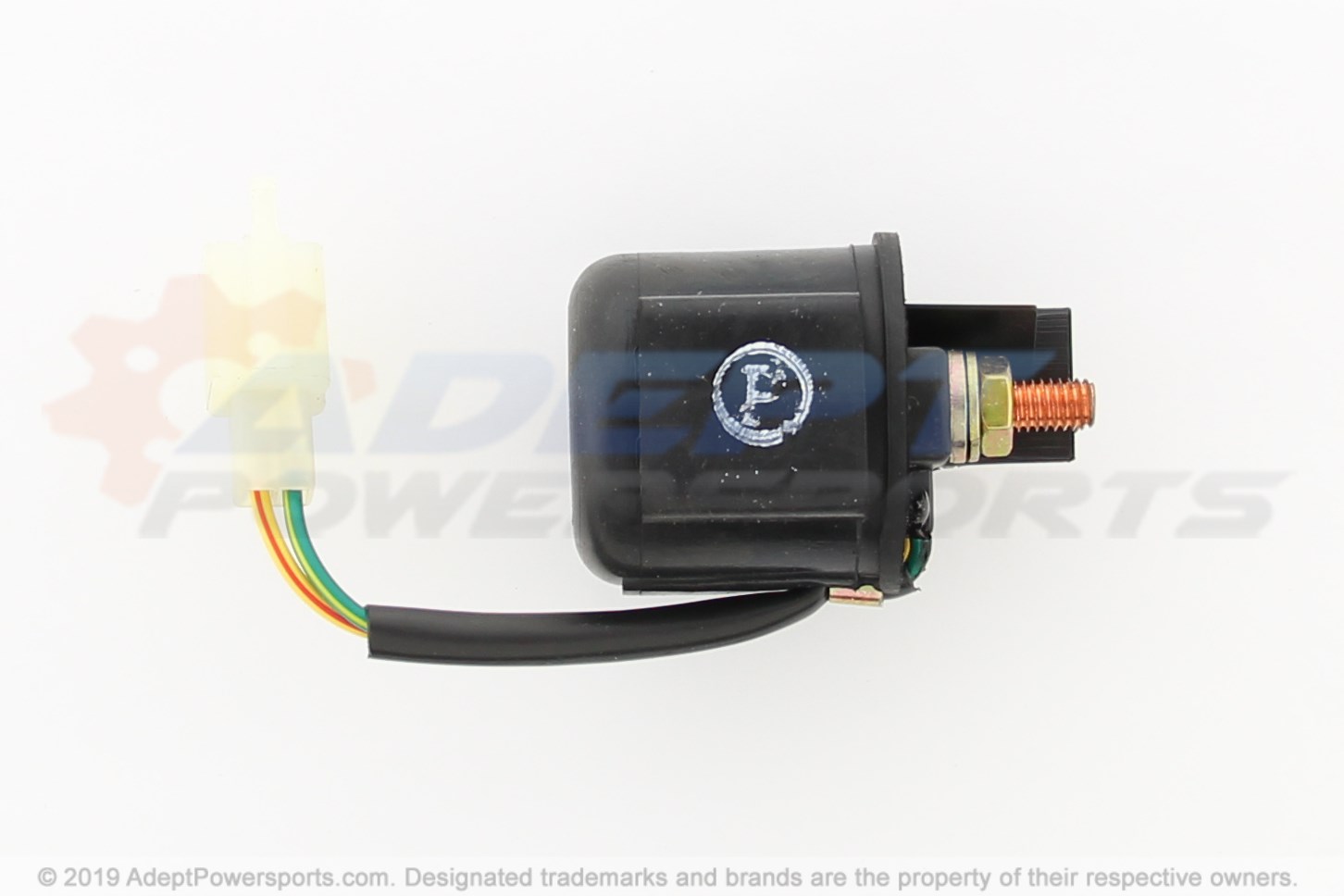

35850-KHB4-90B	SET START MAG Part #: 35850-KHB4-90B Required per assembly: 1 Currently Not Available
39000	CONTROL UNIT GEAR CHANGE Part #: 39000-LLB1-900 Required per assembly: 1 Currently Not Available
90112	BOLT FLANGE 522 KDR-9000 Part #: 90112-KRDR-900 Required per assembly: 2 Currently Not Available*
90656	BAND OIL HANDLE Part #: 90656-KCBC-900 Required per assembly: 8 Currently Not Available
94050	NUT FLANGE 6MM Part #: 94050-06080 Required per assembly: 4 Currently Not Available
98200	BLADE FUSE 20A Part #: 98200-12000 Required per assembly: 1 Currently Not Available
