Front Wheel replacement parts for Kymco People 50 (single seat)

OEM Parts Kymco Kymco People 50 (single seat) Front Wheel

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

280	AXLE FR WHEEL Part #: 44301-KAA-9000 Required per assembly: 1 Currently Not Available
281	COLLAR FRONT WHEEL SIDE Part #: 44311-046-0010 Required per assembly: 1 Currently Not Available
283	WHEEL SET FR Part #: 44600-KFA6-3050 Required per assembly: 1 Currently Not Available
284	BEARING BALL RADIAL 6301 Part #: 96120-63010-10 Required per assembly: 2 Currently Not Available
285	COLLAR FRONT DISK Part #: 44620-400-0000 Required per assembly: 1 Currently Not Available
286	SEAL DUST 40X50X5 Part #: 91258-410-0000-M2 Required per assembly: 1 Currently Not Available
287	OIL SEAL 23X37X7 Part #: 91252-030-0000 Required per assembly: 1 Currently Not Available
288	DISK FRONT BRAKE Part #: 45121-KFA6-9000 Required per assembly: 1 Currently Not Available
289	BOLT FRONT DISK 8X24 Part #: 90105-KR3-0010 Required per assembly: 3 Currently Not Available
290	TIRE ASSY FR Part #: 44710-KHB4-9000-M1 Required per assembly: 1 Currently Not Available
290	TIRE ASSY FR Part #: 44710-KHB4-9000-M2 Required per assembly: 1 Currently Not Available

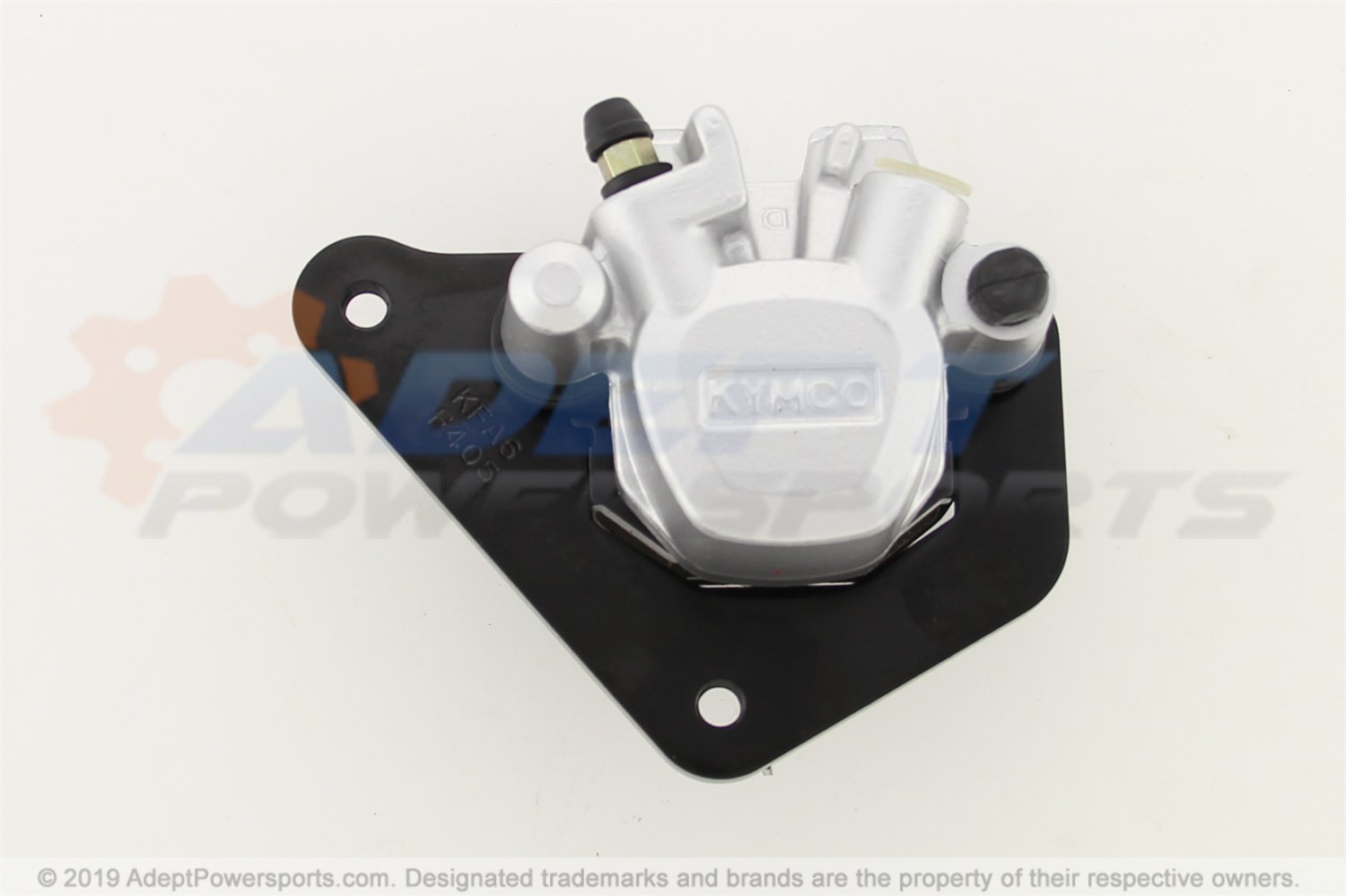

293	CALIPER ASSY FR Part #: 45200-KFA6-900-NJA Required per assembly: 1 Currently Not Available
294	PAD COMP Part #: 45105-KFA6-3050 Required per assembly: 1 Currently Not Available
315	BOLT FLANGE 832 Part #: 90122-KBE-9000 Required per assembly: 2 Currently Not Available*
316	NUT U FLANGE 12MM Part #: 90306-GW0-9020-M1 Required per assembly: 1 Currently Not Available
317	GEAR BOX ASSY SPDMT Part #: 44800-KFA6-9000 Required per assembly: 1 Currently Not Available
