Flywheel Cover replacement parts for Piaggio BV 500

OEM Parts Piaggio Piaggio BV 500 Flywheel Cover

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	COVER FLY WHEEL Part #: B0174635 Currently Not Available

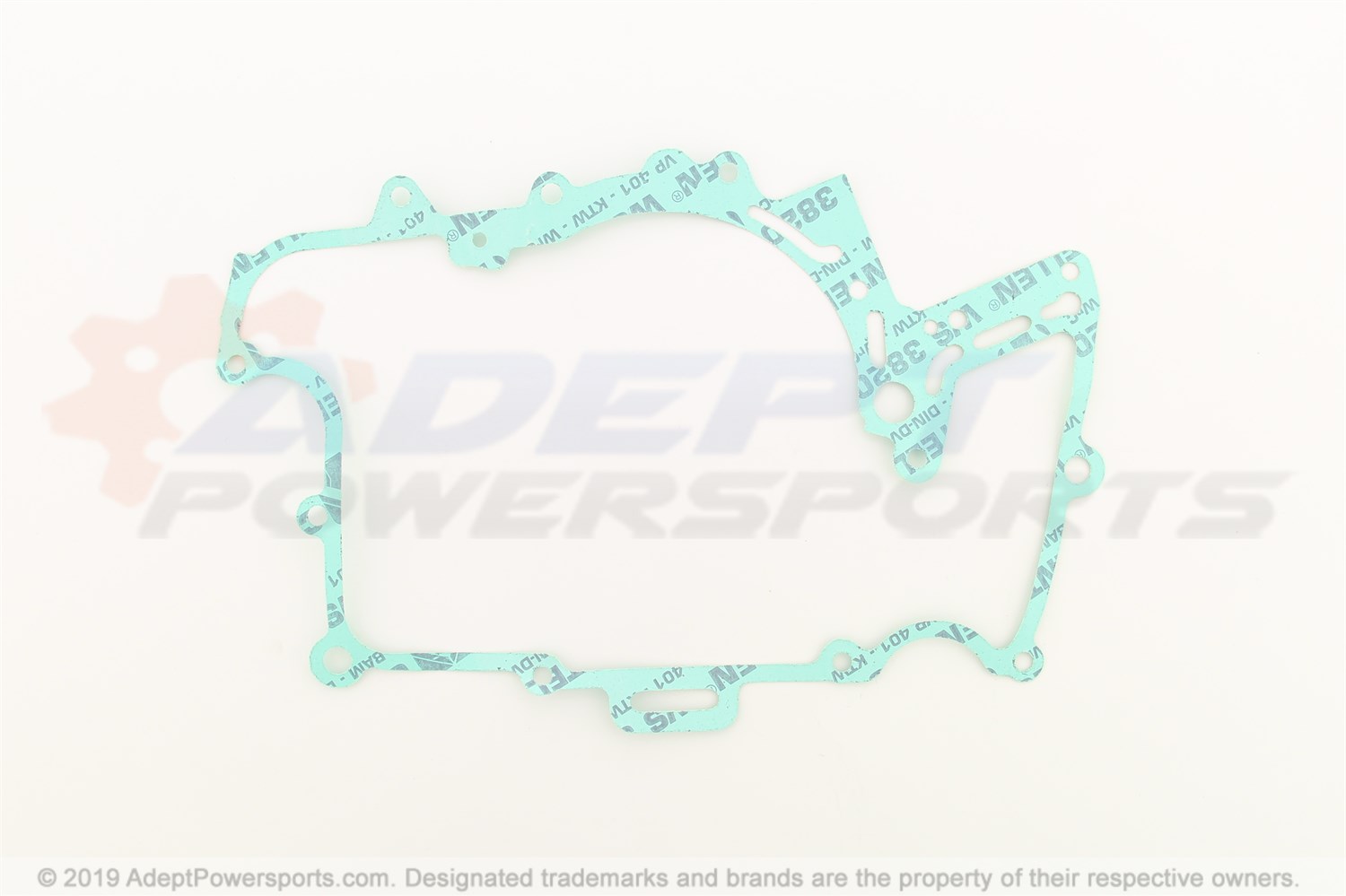

2	GASKET 492 Part #: 872914 Currently Not Available
3	PLUG Part #: 411311 Currently Not Available
4	WASHER 30 Part #: 274246 $0.68 $0.56 - + Add to cart
5	OIL DIP STICK X-9 Part #: 825665 Currently Not Available
6	O-RING Part #: 479986 Currently Not Available
7	OIL FILTER Part #: 826033 Currently Not Available
8	O-RING 20, 35X1, 78 Part #: 288474 Currently Not Available
9	OIL FILTER PLUG (BV-500) Part #: 82823R Currently Not Available
10	O-RING 31,47X1,78 Part #: 285536 Currently Not Available
11	434429 Part #: 434429 Not Available
12	SCREW W/ FLANGE Part #: 414837 Currently Not Available
13	SCREW M6X35 Part #: 414838 Currently Not Available
14	SCREW M6X45 Part #: 414835 Currently Not Available
15	584464 Part #: 584464 Not Available
15	640925 Part #: 641201 Not Available
16	849825 Part #: 849825 Not Available
17	FAIRLEAD ABS Part #: 845978 Currently Not Available
18	BREATEHR TUBE FOR CRANKASE Part #: 829047 Currently Not Available
19	WATER DREIN PIPE Part #: 871795 Currently Not Available
20	O-RING Part #: 237553 Currently Not Available
21	OIL CARTRIDGE FILTER Part #: 82883R Currently Not Available
21	X-9 OIL CARTRIDGE Part #: 82658R Currently Not Available
22	PLATE FOR STATOR Part #: 830886 Currently Not Available
23	SCREW FOR OUTER H.T. COIL (M5X10) Part #: 018575 Currently Not Available
24	876060 Part #: 876060 Not Available
24	PLATE Part #: 828930 Currently Not Available
25	SELF-TAPPING SCREW Part #: 433800 Currently Not Available
26	WASHER 16X10.5X2.5 Part #: 486075 $1.78 $1.46 - + Add to cart
27	OIL PRESSURE VALVE Part #: 829661 Currently Not Available
28	SPRING Part #: 829486 Currently Not Available
29	829040 Part #: 8290405 Not Available
30	O-RING Part #: 479986 Currently Not Available
31	PRESSURE SENSOR Part #: 641541 Currently Not Available
32	REED VALVE SUPPORT Part #: 82778R Currently Not Available
33	WATER PUMP SEAL Part #: 82991R Currently Not Available
34	RING PUMP Part #: 844439 Currently Not Available
35	872536 Part #: 872536 Not Available
36	WATER PUMP IMPELLER CPL. Part #: 827929 Currently Not Available
37	HOSE CLAMP Part #: CM002901 Currently Not Available
