OEM Parts Piaggio Piaggio Fly 150 Cover

Piaggio Fly 150 - Cover

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

OIL FILTER PLUG

Part #: 826165
Currently Not Available
1

OIL FILTER PLUG (BV-500)

Part #: 82823R
Currently Not Available
2

O-RING 31,47X1,78

Part #: 285536
Currently Not Available
3

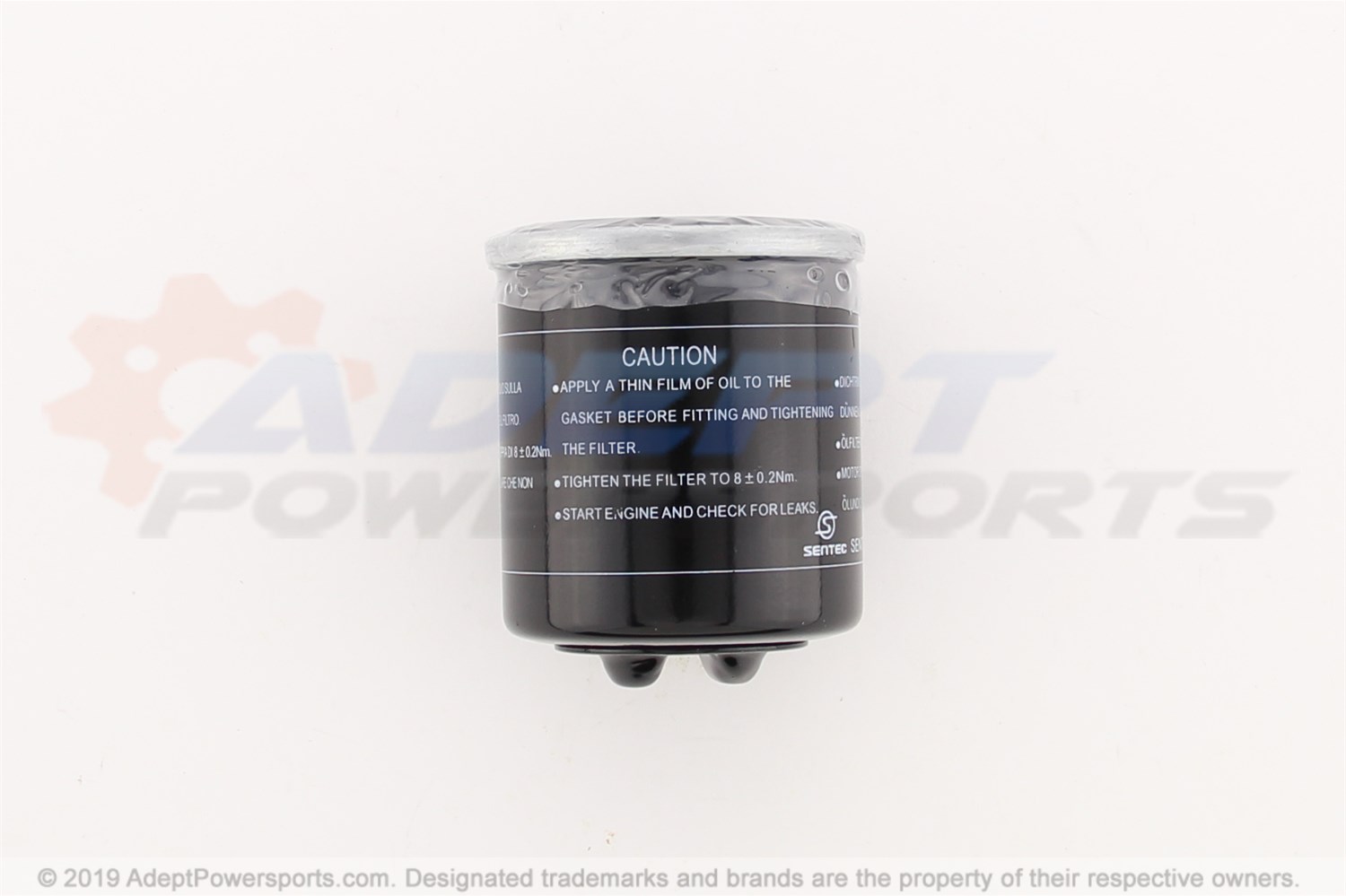

INTAKE OIL FILTER

Part #: 483841
Currently Not Available
4

O-RING 20, 35X1, 78

Part #: 288474
Currently Not Available
5
Currently Not Available
6

SPECIAL SCREW

Part #: 483776
Currently Not Available
7

PRESSURE SENSOR

Part #: 641541
Currently Not Available
8

CLAMP

Part #: 825481
Currently Not Available
9

WASHER 16X10.5X2.5

Part #: 486075
$1.78
$1.46
-
+
Add to cart
10

OIL PUMP GEAR

Part #: 287913
Currently Not Available
11

SCREW W/ FLANGE

Part #: 833722
Currently Not Available
12

BELLEVILLE SPRING

Part #: 436695
Currently Not Available
