Triumph Daytona 600 & 650 - Throttles/Injectors And Fuel Rails

Throttles/Injectors and Fuel Rails Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

THROTTLE BODY ASSEMBLY

Part #: T1244000 Required per assembly: 1 Note: > 201541
Not Available
1

THROTTLE BODY ASSEMBLY

Part #: T1244200 Required per assembly: 1 Note: 201542 >
Not Available
2

FUEL RAIL ASSEMBLY

Part #: T1244001 Required per assembly: 1 Note: 201542 >
Not Available
2

FUEL RAIL ASSEMBLY

Part #: T1244001 Required per assembly: 1 Note: > 201541
Not Available
3

INJECTOR ASSEMBLY

Part #: T1244002 Required per assembly: 4
Not Available
4

CAP, VACUUM, CONNECTION

Part #: T1245009 Required per assembly: 4
$4.99
$4.53
-
+
Add to cart
5

SENSOR, THROTTLE, POSITION, PRI

Part #: T1244006 Required per assembly: 1 Note: Throttle position
$165.48
$162.63
-
+
Add to cart
6

STEPPER, MOTOR, ASSEMBLY, ISC

Part #: T1244007 Required per assembly: 1
$146.10
$143.58
-
+
Add to cart
7

PRESSURE, REGULATOR, ASSEMBLY, FUEL

Part #: T1244012 Required per assembly: 1 Note: > 201541
Not Available
8

FUEL FEED JOINT KIT

Part #: T1244201 Required per assembly: 1 Note: 201542 >
Not Available
8

FUEL, HOSE, FLOW, ASSEMBLY

Part #: T1244004 Required per assembly: 1 Note: Feed > 201541
Not Available
9

FUEL, HOSE, RETURN, ASSEMBLY

Part #: T1244013 Required per assembly: 1 Note: Return > 201541
Not Available
10

SENSOR, THROTTLE, POSITION, SEC

Part #: T1244017 Required per assembly: 1 Note: Throttle position
Not Available
11

JOINT, FUEL, FEED

Part #: T1244015 Required per assembly: 1 Note: Fuel feed > 201541
Not Available
12

LINK SHAFT ASSEMBLY

Part #: T1244016 Required per assembly: 1
Not Available
13

BRACKET, THROTTLE, BODY

Part #: T1244019 Required per assembly: 1 Note: Throttle Cable
Not Available
14

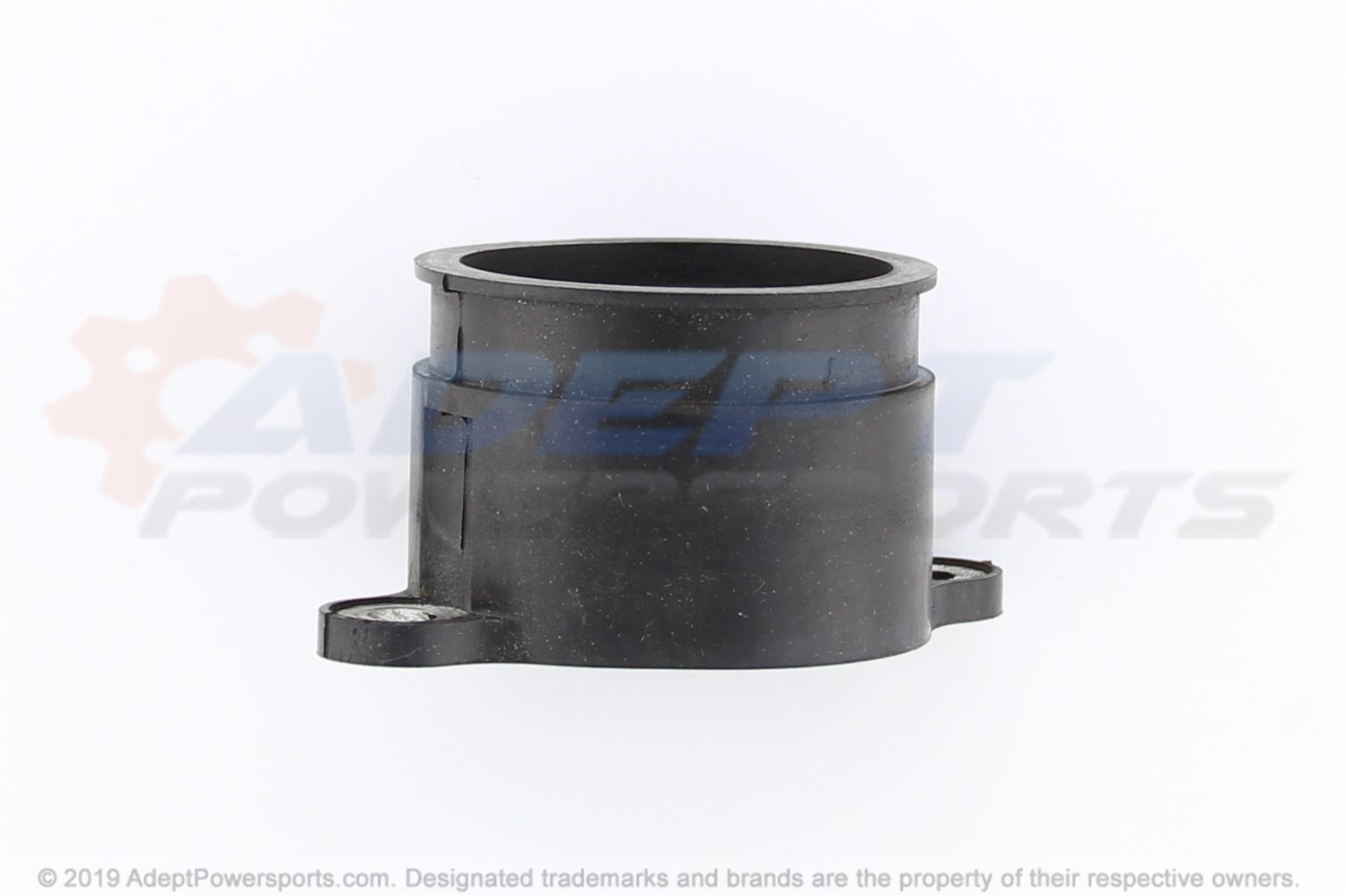

Triumph T1244008 Rubber, T/Body, To, Cyl, Head

RUBBER, T/BODY, TO, CYL, HEAD

Part #: T1244008 Required per assembly: 4
$12.95
$12.72
-
+
Add to cart
15

CLIP, 50.0, DIA., X9.0, WIDE

Part #: T3700073 Required per assembly: 4
$11.14
$10.95
-
+
Add to cart
16

'O'-RING, 39.45ID, X, 1.78DIA

Part #: T3600084 Required per assembly: 4
$10.57
$10.39
-
+
Add to cart
17

SCREW, TX, PAN/HD, M6X1.0X16, SLV

Part #: T3330334 Required per assembly: 8
$2.75
$2.50
-
+
Add to cart
18

BRACKET, RESTRICTOR, 34PS

Part #: T1244010 Required per assembly: 1
Not Available
19

BOLT, RHHF, M5X0.8X12, S5041

Part #: T3330891 Required per assembly: 2
$3.41
$3.10
-
+
Add to cart
20

SPRING, WASHER, M5

Part #: T3555007 Required per assembly: 2
$1.47
$1.34
-
+
Add to cart
21

RING, CUSHION, INJECTOR

Part #: T1244025 Required per assembly: 4
Not Available
22

O-RING, TPS

Part #: T1244102 Required per assembly: 2
Not Available
23

SEAL, INJECTOR

Part #: T1244023 Required per assembly: 4
$3.88
$3.53
-
+
Add to cart
24

O-RING, INJECTOR

Part #: T1244024 Required per assembly: 4
$4.09
$3.72
-
+
Add to cart
25

SPARES, KIT, CPC, 10MM, RED

Part #: T1241225 Required per assembly: 1 Note: 10mm
$28.85
$28.35
-
+
Add to cart
26

KIT, CONNECTOR, FUEL, 6.0

Part #: T1241483 Required per assembly: 1 Note: 8mm
$35.39
$34.78
-
+
Add to cart
27

ACTUATOR, ASSEMBLY, 2ND, BUTTERFLY

Part #: T1244005 Required per assembly: 1
Not Available
28

CLIP, HOSE, DIA, 15.5-17.0

Part #: T3700262 Required per assembly: 1 Note: Part of Fuel Connector Kit > 188867
$4.32
$3.93
-
+
Add to cart
