Pannier, Expedition, Kit, Black replacement parts for Triumph Explorer XRT

OEM Parts Triumph Explorer XRT Pannier, Expedition, Kit, Black

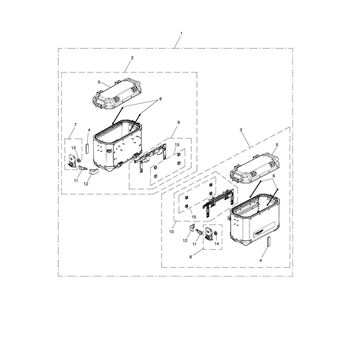

Pannier, Expedition, Kit, Black Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ALU, PANNIER, KIT, BLACK Part #: A9500855 Required per assembly: 1 Not Available
1	ALU, PANNIER, KIT, BLACK Part #: A9500855 Required per assembly: 1 Note: Replaced by A9500855 Not Available
2	PANNIER, ALUMINIUM, BLACK, LH Part #: T9500598 Required per assembly: 1 $779.32 $708.48 - + Add to cart
3	PANNIER, ALUMINIUM, BLACK, RH Part #: T9500599 Required per assembly: 1 $779.32 $708.48 - + Add to cart
4	REFLEX, REFLECTOR, RED Part #: T9830077 Required per assembly: 2 $9.00 $8.85 - + Add to cart
5	LID, ASSEMBLY, PANNIER, BLACK Part #: T9500605 Required per assembly: 2 $351.73 $319.75 - + Add to cart
6	STRAP, LIMIT, PANNIER Part #: T9500604 Required per assembly: 4 $9.10 $8.27 - + Add to cart
7	LATCH, ASSEMBLY, PANNIER, LH Part #: T9500549 Required per assembly: 1 $79.00 $77.64 - + Add to cart
8	LATCH, ASSEMBLY, PANNIER, RH Part #: T9500550 Required per assembly: 1 $79.00 $77.64 - + Add to cart
9	MECHANISM, MOUNTING, LH Part #: T9500551 Required per assembly: 1 $105.00 $103.19 - + Add to cart
10	MECHANISM, MOUNTING, RH Part #: T9500552 Required per assembly: 1 $105.00 $103.19 - + Add to cart
11	LEVER, MOUNTING, MECHANISM Part #: T9500553 Required per assembly: 2 $28.00 $27.52 - + Add to cart
12	COVER, MOUNTING, MECHANISM Part #: T9500554 Required per assembly: 2 $5.69 $5.17 - + Add to cart
13	CAM, LATCH, ASSEMBLY, PANNIER, LH Part #: T9500591 Required per assembly: 1 $4.55 $4.14 - + Add to cart
14	CAM, LATCH, ASSEMBLY, PANNIER, RH Part #: T9500596 Required per assembly: 1 $4.55 $4.14 - + Add to cart
15	SPARES, KIT, PANNIER, RUBBERS Part #: T9500564 Required per assembly: 2 $14.00 $13.76 - + Add to cart
17	CLEANING SWAB Part #: A9930007 Required per assembly: 1 $1.29 $1.18 - + Add to cart
18	LOCK BARREL KIT Part #: T2509880 Required per assembly: 1 Note: Triumph OEM replacement lock barrel kit for luggage panniers. This kit consists of 3 barrels and two keys. Please note the keys will not be fitted for your ignition only the replacement barrels. Keys provided will be different to those provided with the motorcycle $70.00 $68.80 - + Add to cart
