Instruments replacement parts for Triumph Scrambler 1200 X

OEM Parts Triumph Scrambler 1200 X Instruments

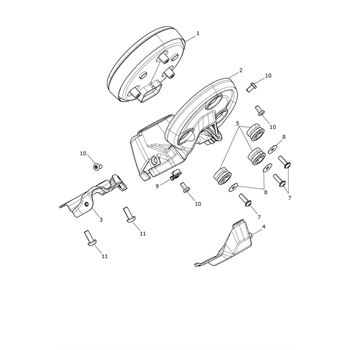

Instruments Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	INSTRUMENT, PACK, MPH, US Part #: T2507752 Required per assembly: 1 ~~$968.84~~ $952.17 - + Add to cart
1	INSTRUMENT, PACK, MPH, UK Part #: T2507751 Required per assembly: 1 ~~$968.84~~ $952.17 - + Add to cart
1	INSTRUMENT, PACK, KMH, EU Part #: T2507753 Required per assembly: 1 ~~$968.84~~ $952.17 - + Add to cart
1	INSTRUMENT, PACK, KMH, JP Part #: T2507754 Required per assembly: 1 ~~$968.84~~ $952.17 - + Add to cart
1	INSTRUMENT, PACK, KMH, CA/CN Part #: T2507755 Required per assembly: 1 ~~$968.84~~ $952.17 - + Add to cart
2	INSTRUMENT MOUNT Part #: T2043272 Required per assembly: 1 ~~$36.11~~ $35.49 - + Add to cart
3	INSTRUMENT MOUNT BRACKET Part #: T2503650 Required per assembly: 1 ~~$11.27~~ $10.24 - + Add to cart
4	COVER, INSTRUMENT, CONNECTOR, MLDG Part #: T2503924 Required per assembly: 1 ~~$8.20~~ $7.46 - + Add to cart
5	GROMMET, INSTRUMENTS Part #: T3020123 Required per assembly: 3 ~~$7.30~~ $6.63 - + Add to cart
7	SCREW, HHF, 50X16, SLV Part #: T3331414 Required per assembly: 3 ~~$1.59~~ $1.45 - + Add to cart
8	WASHER M5X15X1.6 Part #: T3551178 Required per assembly: 3 ~~$1.01~~ $0.92 - + Add to cart
9	NUT, CAPTIVE, M5 Part #: T3350129 Required per assembly: 1 ~~$3.57~~ $3.24 - + Add to cart
10	SCREW, M5, X, 10, S/S, ENC Part #: T3330356 Required per assembly: 4 ~~$6.39~~ $5.80 - + Add to cart
11	SCREW, PAN, /, HD, TX, M6, X, 16, SLV Part #: T3331044 Required per assembly: 2 ~~$1.01~~ $0.92 - + Add to cart
