OEM Parts Triumph Scrambler Carb Sixty8 / Single Seat & Rack Kit

Triumph Scrambler Carb - Sixty8 / Single Seat & Rack Kit

Sixty8 / Single Seat & Rack Kit Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

SINGLE SEAT & RACK KIT

Part #: A9708075 Required per assembly: 1
Not Available
2

SINGLE, SEAT, BLACK, PIPING

Part #: A9700003 Required per assembly: 1
Not Available
3

RACK, ASSEMBLY, CHROME

Part #: T2304441 Required per assembly: 1
Not Available
4

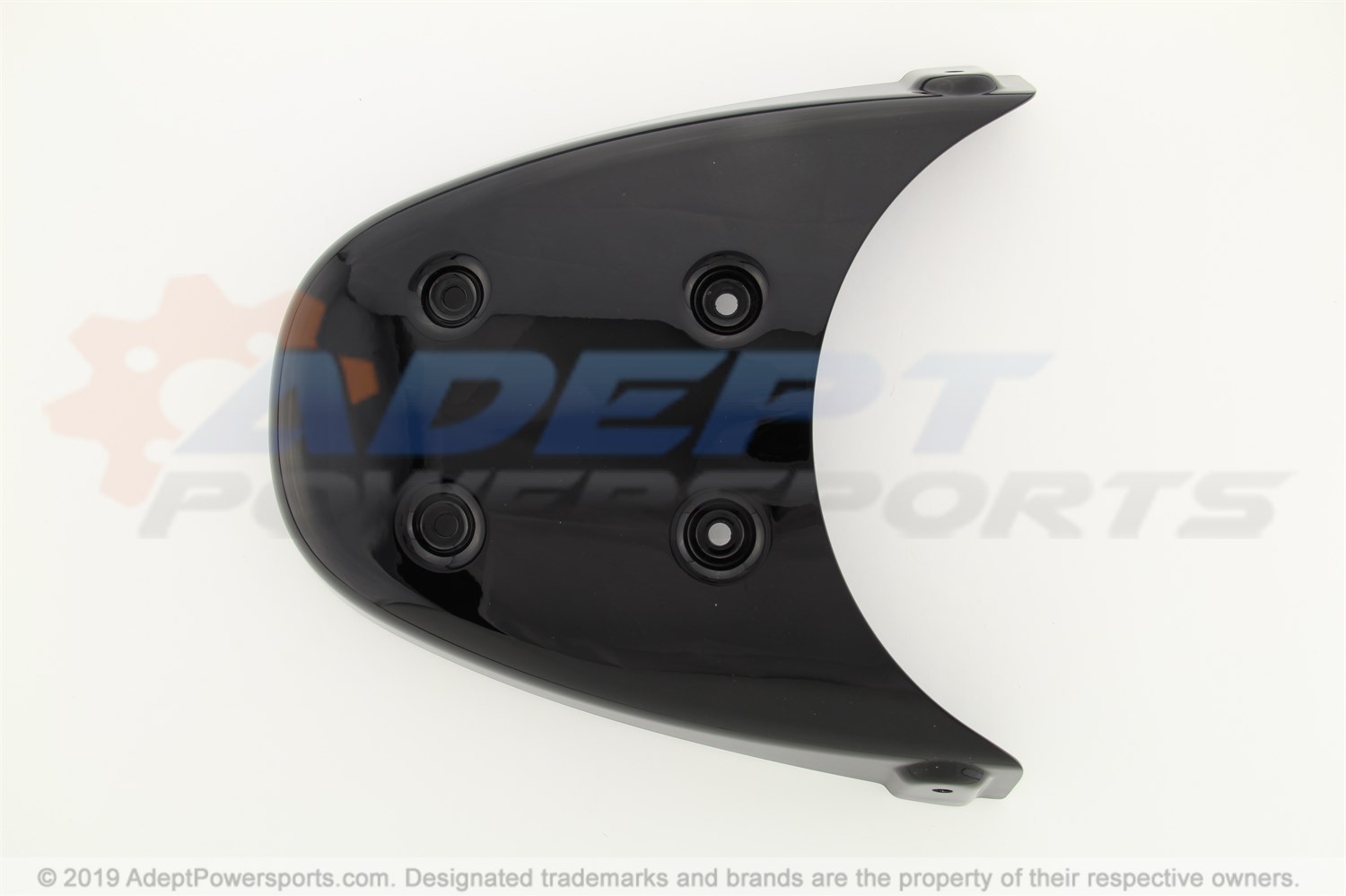

SEAT, COWL, SINGLE, JET, BLACK

Part #: A9700039PG Required per assembly: 1
Not Available
5

FLANGED, SLEEVE, M6, X, 7.8, X, 2.85

Part #: T3010062 Required per assembly: 8
$7.30
$6.63
-
+
Add to cart
6

BOLT, BUT/HD, M5X0.8X17, SHLD, SLV

Part #: T3331063 Required per assembly: 2
$2.20
$2.00
-
+
Add to cart
7

BOLT, RHHF, M6X1.0X25, SLV

Part #: T3200190 Required per assembly: 2
$2.68
$2.43
-
+
Add to cart
8

WASHER, NYLON, 12.45, X, 7.14X0.76

Part #: T3550094 Required per assembly: 2
$1.12
$1.02
-
+
Add to cart
