Rear Wheel & Final Drive replacement parts for Triumph Speed Triple 461332

OEM Parts Triumph Speed Triple 461332 > 735437 Rear Wheel & Final Drive

Rear Wheel & Final Drive Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CLIP, LOCKING Part #: T3700207 Required per assembly: 1 $3.71 - + Add to cart

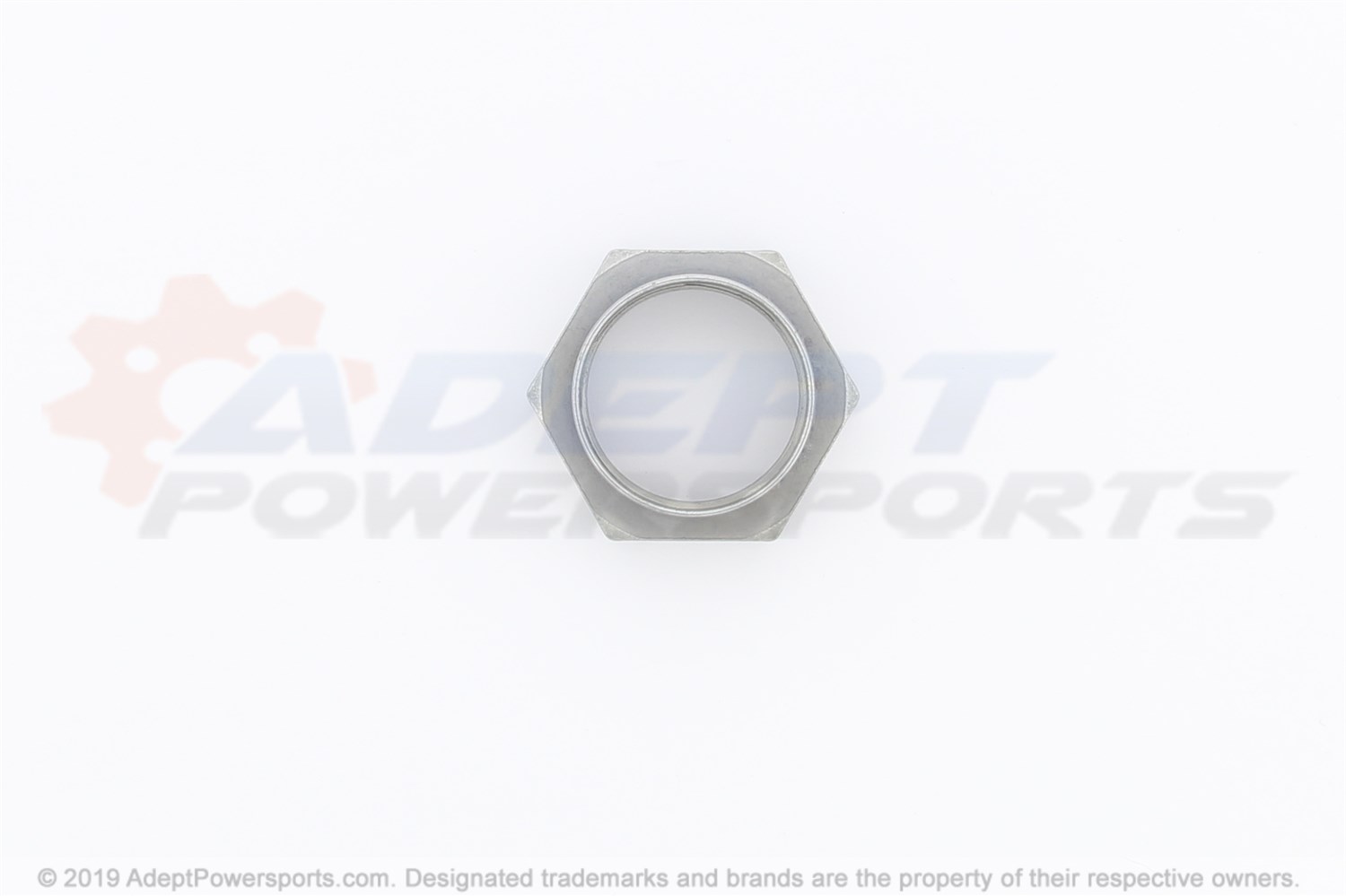

2	NUT, M38X1.5, SLV Part #: T2012596 Required per assembly: 1 ~~$37.13~~ $36.48 - + Add to cart
3	WASHER, CONICAL, 38.5X55.5X3.5 Part #: T3555036 Required per assembly: 1 $17.69 - + Add to cart
4	THRUST, WASHER, PLATED Part #: T3550955 Required per assembly: 1 $13.46 - + Add to cart
5	CONICAL, SPACER, ANODISED Part #: T2012575 Required per assembly: 1 ~~$27.20~~ $26.86 - + Add to cart
6	REAR, WHEEL, ASSEMBLY, BLUE, PINSTRIPE Part #: T2018918 Required per assembly: 1 Note: ABS Special Edition ~~$1,117.82~~ $661.02 - + Add to cart
6	REAR, WHEEL, ASSEMBLY, GOLD, PINSTRIPE Part #: T2018917 Required per assembly: 1 Note: 602553 > 657552 ~~$1,117.82~~ $661.02 - + Add to cart
6	REAR, WHEEL, ASSEMBLY, RED, PINSTRIPE Part #: T2018916 Required per assembly: 1 Note: 657553 > ~~$985.79~~ $586.04 - + Add to cart
6	REAR, WHEEL, ASSEMBLY, WHITE, PINSTRIPE Part #: T2013137 Required per assembly: 1 Note: Speed 94 Only ~~$1,056.22~~ $626.12 - + Add to cart
6	REAR, WHEEL, ASSEMBLY, YELLOW, PINSTRIPE Part #: T2013127 Required per assembly: 1 Note: Speed 94 Only ~~$1,056.22~~ $1,014.98 - + Add to cart
6	WHEEL, REAR, 17, X, 6.00 Part #: T2018915 Required per assembly: 1 Note: > 602552 ~~$1,117.82~~ $1,074.18 - + Add to cart
7	VALVE, ASSEMBLY, ALUM, 90, BLACK Part #: T2006635 Required per assembly: 1 $17.82 - + Add to cart
8	AXLE, ASSEMBLY, REAR Part #: T2010257 Required per assembly: 1 Note: 526696 > ~~$607.34~~ $586.70 - + Add to cart
8	SPARES, KIT, AXLE, ASSEMBLY, REAR Part #: T2010258 Required per assembly: 1 Note: > 526695 ~~$616.14~~ $594.85 - + Add to cart
9	DRIVE PIN Part #: T2012297 Required per assembly: 5 ~~$33.37~~ $32.80 - + Add to cart
10	M6, BOLT, PAN, HEAD Part #: T3050211 Required per assembly: 5 $3.94 - + Add to cart
11	BUNG, HOLE, DIA, 11, BLACK Part #: T3450042 Required per assembly: 5 Note: 526696 > $2.95 - + Add to cart
11	PLUG, DIA, 17.5MM Part #: T3451400 Required per assembly: 5 Note: > 526695 $2.76 - + Add to cart
12	ECCENTRIC ASSEMBLY Part #: T2012432 Required per assembly: 1 ~~$360.86~~ $354.24 - + Add to cart
13	SNAP, RING, NOM, BORE, 55, DIA Part #: T3501055 Required per assembly: 1 $2.13 - + Add to cart
14	BEARING, NEEDLE, 45X55X25, SEALED Part #: T3800221 Required per assembly: 1 ~~$98.66~~ $96.95 - + Add to cart
15	CIRCLIP, INT, 55X2 Part #: T3500209 Required per assembly: 1 $6.39 - + Add to cart
16	BEARING, TWIN, BALL, 40X62X24 Part #: T3800170 Required per assembly: 1 ~~$87.14~~ $85.64 - + Add to cart
17	SNAP, RING, BORE, 62, DIA Part #: T3501062 Required per assembly: 1 $3.94 - + Add to cart
18	WASHER, 40, X, 46.5, X, 1.6, SLV Part #: T2016667 Required per assembly: 1 $5.69 - + Add to cart
19	CUSH DRIVE ASSEMBLY Part #: T2012386 Required per assembly: 1 ~~$677.73~~ $651.66 - + Add to cart
20	CUSH, CENTRE, M/C Part #: T2012360 Required per assembly: 1 ~~$142.58~~ $140.12 - + Add to cart
21	CUSH RUBBER TYPE B Part #: T2012400 Required per assembly: 5 $23.00 - + Add to cart
22	O-RING, CUSH, DRIVE Part #: T3600155 Required per assembly: 1 $9.40 - + Add to cart
23	BEARING SPACER Part #: T2012620 Required per assembly: 1 $17.54 - + Add to cart
24	CUSH, OUTER, M/C Part #: T2012381 Required per assembly: 1 ~~$387.29~~ $379.54 - + Add to cart
25	BEARING, TWIN, BALL, 55X35X20 Part #: T3800150 Required per assembly: 1 ~~$58.98~~ $57.95 - + Add to cart
26	SEAL, CUSH, DRIVE Part #: T3600145 Required per assembly: 1 $5.51 - + Add to cart
27	FLANGED, SLEEVE, 30, X, 45, X, 7.5 Part #: T2012614 Required per assembly: 1 $9.40 - + Add to cart
28	CONICAL, WASHER, 35.5, 51, 5.3 Part #: T3555034 Required per assembly: 1 $19.68 - + Add to cart
29	NUT, M35X1.5, SLV Part #: T2012536 Required per assembly: 1 ~~$28.96~~ $28.46 - + Add to cart
30	530, CHAIN, 108L, SPARES, KIT Part #: T2015007 Required per assembly: 1 ~~$139.57~~ $136.61 - + Add to cart
31	CONNECTING, LINK, 530, CHAIN Part #: T2015148 Required per assembly: 1 $18.15 - + Add to cart
32	SPROCKET, REAR, 42T Part #: T2012495 Required per assembly: 1 Note: IN & BR Only ~~$49.85~~ $45.22 - + Add to cart
32	SPROCKET, REAR, 43T Part #: T2010184 Required per assembly: 1 Note: All Expt IN & BR ~~$49.85~~ $45.22 - + Add to cart
33	BOLT, PAN, HD, SHLD, M8, X, 32 Part #: T3050265 Required per assembly: 6 $8.00 - + Add to cart
34	LOCKNUT, FLANGED, M8 Part #: T3350004 Required per assembly: 6 $3.20 - + Add to cart
35	CHAIN, &, SPROCKET, KIT, 108/42/18 Part #: T2017315 Required per assembly: 1 Note: IN & BR Only $264.84 - + Add to cart
35	CHAIN, &, SPROCKET, KIT, 108/43/18 Part #: T2017330 Required per assembly: 1 Note: All Expt IN & BR ~~$254.23~~ $207.19 - + Add to cart
