Tool Kit replacement parts for Triumph Sprint Carbs

OEM Parts Triumph Sprint Carbs Tool Kit

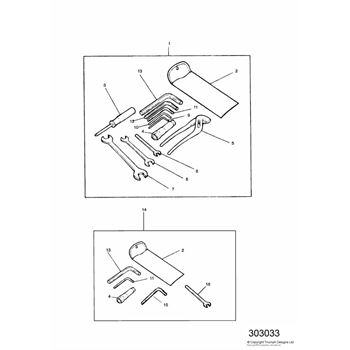

Tool Kit Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	TOOL KIT Part #: 2300103T0301 Required per assembly: 1 Note: Large Not Available
2	WALLET, TYPE, C, TOOLKIT. Part #: T2301434 Required per assembly: 1 Note: Small $11.19 $10.99 - + Add to cart
2	WALLET, TYPEB, TOOLKIT Part #: T2300279 Required per assembly: 1 Note: Large $19.39 $19.05 - + Add to cart
3	SCREWDRIVER, REVERSIBLE Part #: T2303676 Required per assembly: 1 Not Available
4	SPANNER, SPARK, PLUG Part #: T2300107 Required per assembly: 1 Note: Spark Plugs $23.64 $23.22 - + Add to cart
5	PLIERS Part #: 2300110T0301 Required per assembly: 1 $5.69 $5.17 - + Add to cart
6	SPANNER, OPEN, END, 10, X, 12 Part #: 2300114T0301 Required per assembly: 1 Note: 10mm - 12mm Not Available
7	SPANNER, OPEN, END, 13X17MM Part #: T2300350 Required per assembly: 1 Note: 13mm - 17mm Not Available
8	SPANNER, OPEN, END, 8MM Part #: 2300116T0301 Required per assembly: 1 Note: 8mm $4.09 $3.72 - + Add to cart
9	ALLEN, KEY, 6MM Part #: T2300108 Required per assembly: 1 Note: 3mm Not Available
10	ALLEN, KEY, 4MM Part #: 2300109T0301 Required per assembly: 1 Note: 4mm Not Available
11	ALLEN, KEY, 5MM Part #: T2300634 Required per assembly: 1 $5.02 $4.56 - + Add to cart
12	ALLEN, KEY, 8MM Part #: T2300112 Required per assembly: 1 Note: 8mm $9.72 $9.54 - + Add to cart
13	ALLAN, KEY, 12MM Part #: T2300113 Required per assembly: 2 Note: 12mm $4.44 $4.04 - + Add to cart
14	TOOLKIT, TYPE, E Part #: T2300438 Required per assembly: 1 Note: Comprises 1 off items 2,4,9,11,12,13,15,16 Not Available
15	ALLEN, KEY, 6MM Part #: T2300324 Required per assembly: 1 Note: 6mm Not Available
16	SPANNER OPEN END 10MM Part #: T2300437 Required per assembly: 1 Note: 10mm Not Available
