Front Sub-Frame & Fittings replacement parts for Triumph Sprint GT

OEM Parts Triumph Sprint GT Front Sub-Frame & Fittings

Front Sub-Frame & Fittings Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

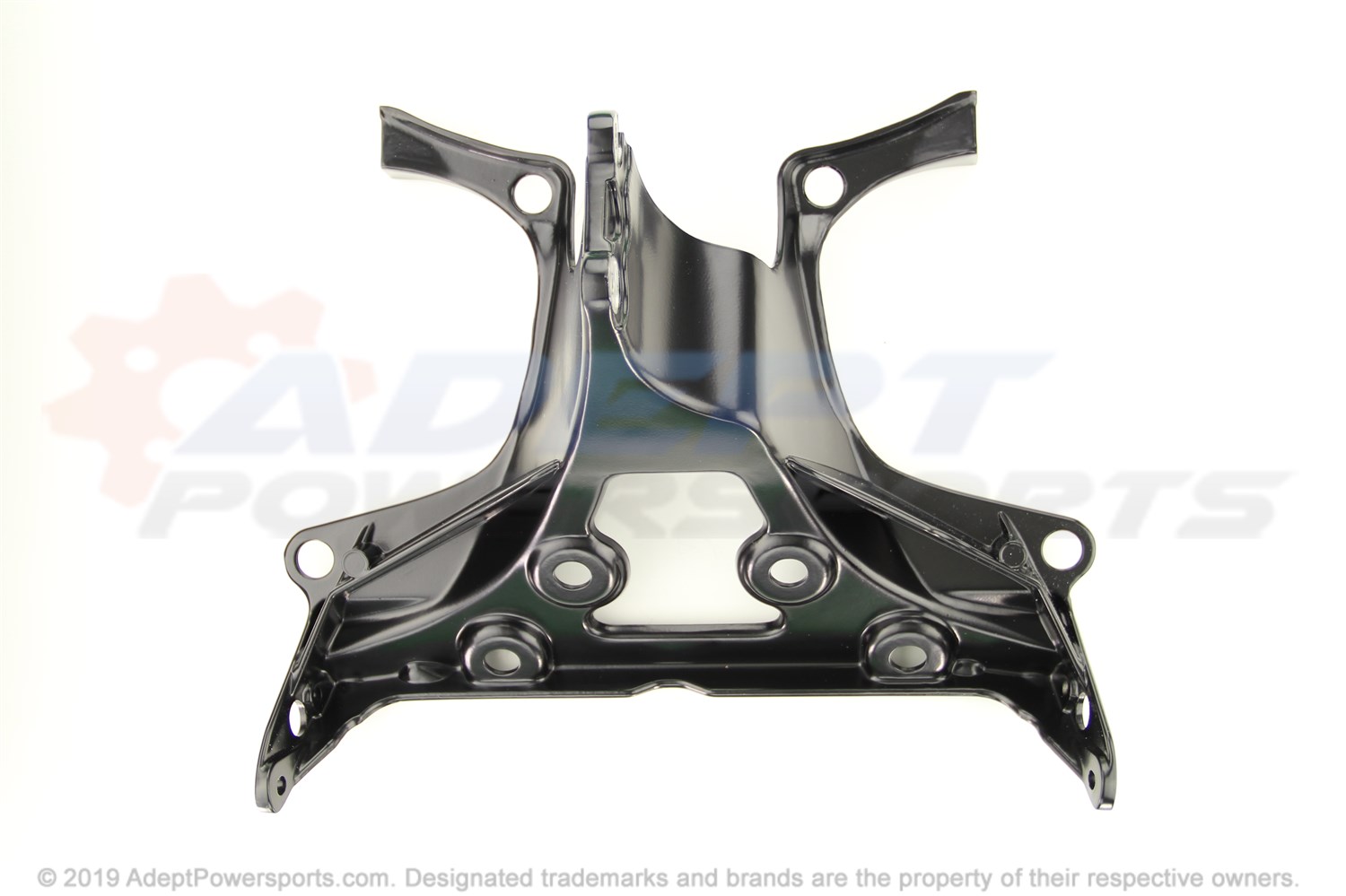

1	SUBFRAME, COCKPIT Part #: T2070302 Required per assembly: 1 $338.37 $332.55 - + Add to cart
2	BRACKET, SUBFRAME, GRP, RH Part #: T2070054 Required per assembly: 1 $18.46 $18.13 - + Add to cart
3	BOLT, HHF, LGHTD, M6, X, 16, SLV Part #: T3205063 Required per assembly: 4 $3.57 $3.24 - + Add to cart
4	NUT, CAPTIVE, M6 Part #: T3350111 Required per assembly: 2 $5.02 $4.56 - + Add to cart
5	GASKET, RUBBER, LH, MIRROR Part #: T2060008 Required per assembly: 1 $5.13 $4.66 - + Add to cart
6	BRACKET, SUBFRAME, GRP, LH Part #: T2070777 Required per assembly: 1 $18.46 $18.13 - + Add to cart
7	BOLT, RHHF, M8X1.25X45, SLV Part #: T3202118 Required per assembly: 2 $1.64 $1.49 - + Add to cart
8	LOCKNUT, FLANGED, M8 Part #: T3350004 Required per assembly: 2 $2.33 $2.12 - + Add to cart
9	GROMMET, RUBBER Part #: T3020030 Required per assembly: 4 $8.92 $8.11 - + Add to cart
10	GASKET, RUBBER, RH, MIRROR Part #: T2060009 Required per assembly: 1 $5.13 $4.66 - + Add to cart
11	MIRROR, ASSEMBLY, LH Part #: T2060028 Required per assembly: 1 $121.35 $119.25 - + Add to cart
12	MIRROR, ASSEMBLY, RH Part #: T2060029 Required per assembly: 1 $121.35 $119.25 - + Add to cart
13	BULB, INDICATOR Part #: T2060012 Required per assembly: 2 $5.67 $5.15 - + Add to cart
14	FLANGED, LOCK, NUT, M6 Part #: T3350003 Required per assembly: 4 $0.68 $0.62 - + Add to cart
15	ECU MOUNTING BRACKET Part #: T2304207 Required per assembly: 1 $35.70 $35.08 - + Add to cart
16	BOLT, HHF, M6112, SLV Part #: T3203222 Required per assembly: 2 $1.75 $1.59 - + Add to cart
17	INDICATOR, UNIT, LH Part #: T2060007 Required per assembly: 1 $37.45 $36.80 - + Add to cart
18	INDICATOR, UNIT, RH Part #: T2060017 Required per assembly: 1 $37.45 $36.80 - + Add to cart
19	MIRROR, GLASS, LH Part #: T2060005 Required per assembly: 1 Note: Not shown $71.78 $70.53 - + Add to cart
20	MIRROR, GLASS, RH Part #: T2060015 Required per assembly: 1 Note: Not shown $71.78 $70.53 - + Add to cart
21	NUT, CAPTIVE, M5, NON, SECURED Part #: T3350123 Required per assembly: 2 $2.52 $2.29 - + Add to cart
