Airbox replacement parts for Triumph Street Triple > 560476

OEM Parts Triumph Street Triple > 560476 Airbox

Airbox Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	AIRBOX, LOWER, ASSEMBLY Part #: T2200501 Required per assembly: 1 ~~$174.28~~ $171.28 - + Add to cart
2	AIRBOX, LOWER, MOULDING Part #: T2200492 Required per assembly: 1 ~~$93.29~~ $91.67 - + Add to cart
3	FILTER, AIR Part #: T2208164 Required per assembly: 1 ~~$36.15~~ $34.50 - + Add to cart
4	BOLT, DOMED, M5, X, 10 Part #: T3330771 Required per assembly: 6 ~~$6.39~~ $5.80 - + Add to cart
5	BOLT, HHF, LGHTD, M6X1.0X20, ENC Part #: T3205065 Required per assembly: 1 ~~$5.90~~ $5.36 - + Add to cart
6	SPARES, KIT, AIR, TEMP, SENSOR Part #: T2200628 Required per assembly: 1 Note: > 446598 ~~$64.23~~ $63.11 - + Add to cart
6	AIRBOX, UPPER, ASSEMBLY Part #: T2200618 Required per assembly: 1 Note: 446599 > ~~$139.06~~ $136.65 - + Add to cart
7	SCREW, HHF, 50X18, SLV Part #: T3331417 Required per assembly: 8 Note: > 424921 ~~$9.52~~ $8.65 - + Add to cart
7	SCREW, S/TAP, HHF, 5X20.5 Part #: T3332427 Required per assembly: 8 Note: 424922 > ~~$0.62~~ $0.61 - + Add to cart
8	INTAKE, TRUMPET, ASSEMBLY Part #: T2207603 Required per assembly: 3 ~~$38.89~~ $38.21 - + Add to cart
9	SCREW, PAN, SHLD, M5, X, 0.8 Part #: T3330887 Required per assembly: 6 ~~$2.06~~ $1.88 - + Add to cart
10	BREATHER, HOSE, CRANKCASE Part #: T2200440 Required per assembly: 1 ~~$23.65~~ $23.24 - + Add to cart
11	CLIP, BREATHER, PIPE Part #: T3700051 Required per assembly: 2 ~~$2.36~~ $2.15 - + Add to cart
12	WASHER, 6.4X19.0X1.6 Part #: T3555026 Required per assembly: 1 ~~$1.26~~ $1.15 - + Add to cart
13	FOAM, BREATHER, CHAMBER Part #: T2200449 Required per assembly: 1 ~~$20.50~~ $20.14 - + Add to cart
14	SEAL, AIRBOX Part #: T2208163 Required per assembly: 1 ~~$11.11~~ $10.10 - + Add to cart
15	O-RING, AIRBOX/THROTTLE, BODY Part #: T2208180 Required per assembly: 3 ~~$5.13~~ $4.66 - + Add to cart
16	SEAL, HEADSTOCK Part #: T2208185 Required per assembly: 1 ~~$7.30~~ $6.63 - + Add to cart

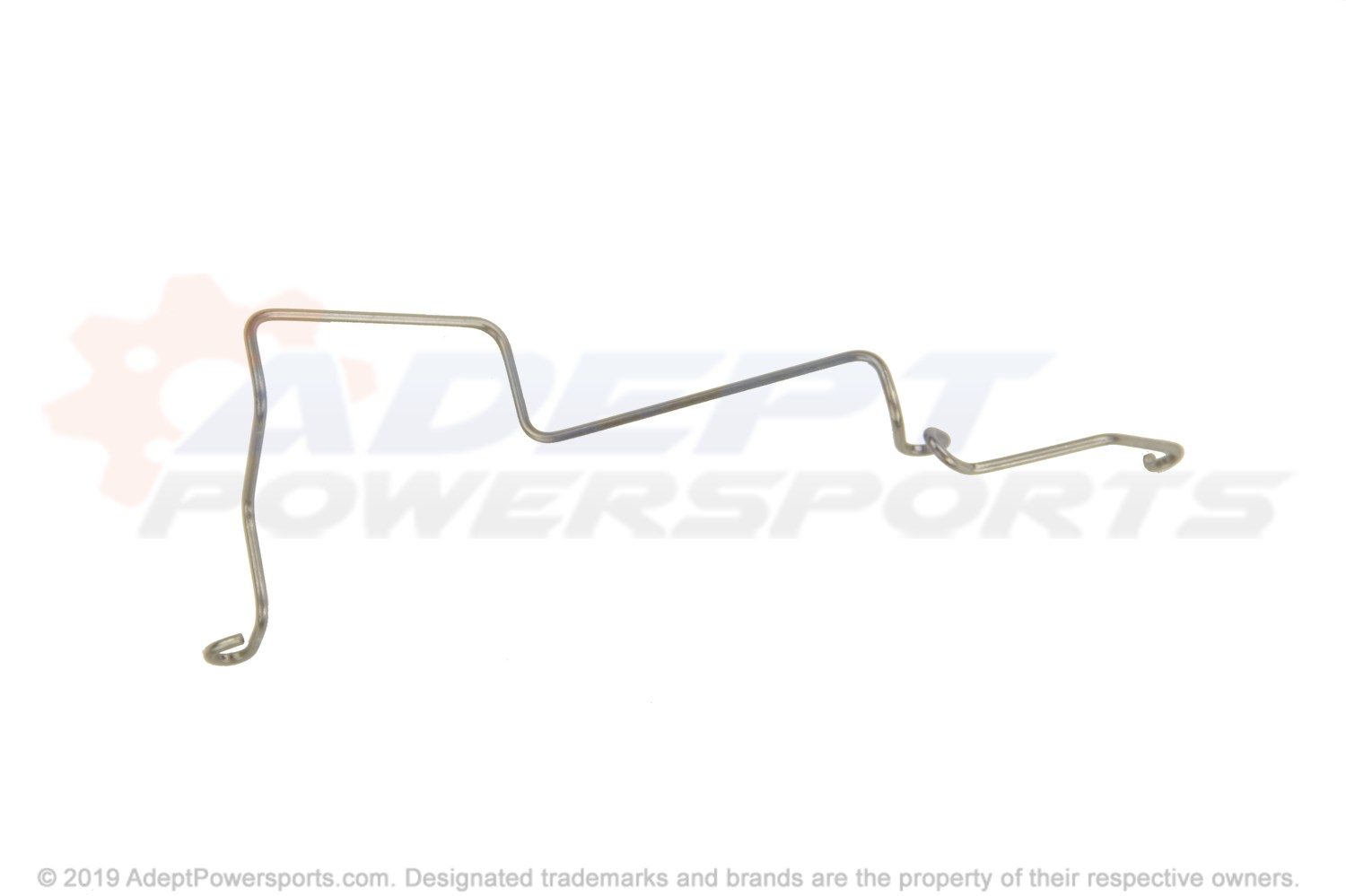

17	WIRE, GUIDE, FUEL, HOSE Part #: T2201111 Required per assembly: 1 ~~$4.78~~ $4.34 - + Add to cart
