Fuel Pump & Fittings replacement parts for Triumph Street Triple R

OEM Parts Triumph Street Triple R Fuel Pump & Fittings

Fuel Pump & Fittings Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FUEL, TANK, ED Part #: T2407560 Required per assembly: 1 ~~$1,004.78~~ $965.54 - + Add to cart
2	HEAT, PAD, FUEL, TANK, CENTRE Part #: T2401641 Required per assembly: 1 ~~$53.34~~ $52.42 - + Add to cart
3	HEAT, PAD, FUEL, TANK, LH Part #: T2401642 Required per assembly: 1 ~~$26.67~~ $26.58 - + Add to cart
4	HEAT, PAD, FUEL, TANK, RH Part #: T2401643 Required per assembly: 1 ~~$26.67~~ $26.58 - + Add to cart
5	PUMP, FUEL, 3.5, BAR Part #: T2403892 Required per assembly: 1 ~~$167.34~~ $164.46 - + Add to cart
6	SEAL, FUEL, PUMP, MODULE Part #: T2401887 Required per assembly: 1 $12.25 - + Add to cart
7	LOCATION, PLATE, FUEL, PUMP Part #: T2400562 Required per assembly: 1 ~~$34.34~~ $33.75 - + Add to cart
8	SCREW, TORX, P/H, M6120, SLV Part #: T3331234 Required per assembly: 6 $6.73 - + Add to cart
9	SEAL, FUEL, FILLER, CAP Part #: T2405473 Required per assembly: 1 $9.96 - + Add to cart
10	BUSH, RUBBER Part #: T2400446 Required per assembly: 2 $4.21 - + Add to cart
11	TURNED, SPACER, TANK, MOUNT Part #: T2401070 Required per assembly: 1 $9.92 - + Add to cart
12	BOLT, RHHF, M6X1X105, BLK, ENC Part #: T3205079 Required per assembly: 1 $4.52 - + Add to cart
13	BRACKET, FUEL, TANK Part #: T2403890 Required per assembly: 1 $15.34 - + Add to cart
14	SCREW, CAP/HD, M6X1.0X20, SLV Part #: T3050334 Required per assembly: 2 $2.00 - + Add to cart
15	WASHER, 6.4, X, 14, X, 1.6 Part #: T3555004 Required per assembly: 2 $1.85 - + Add to cart

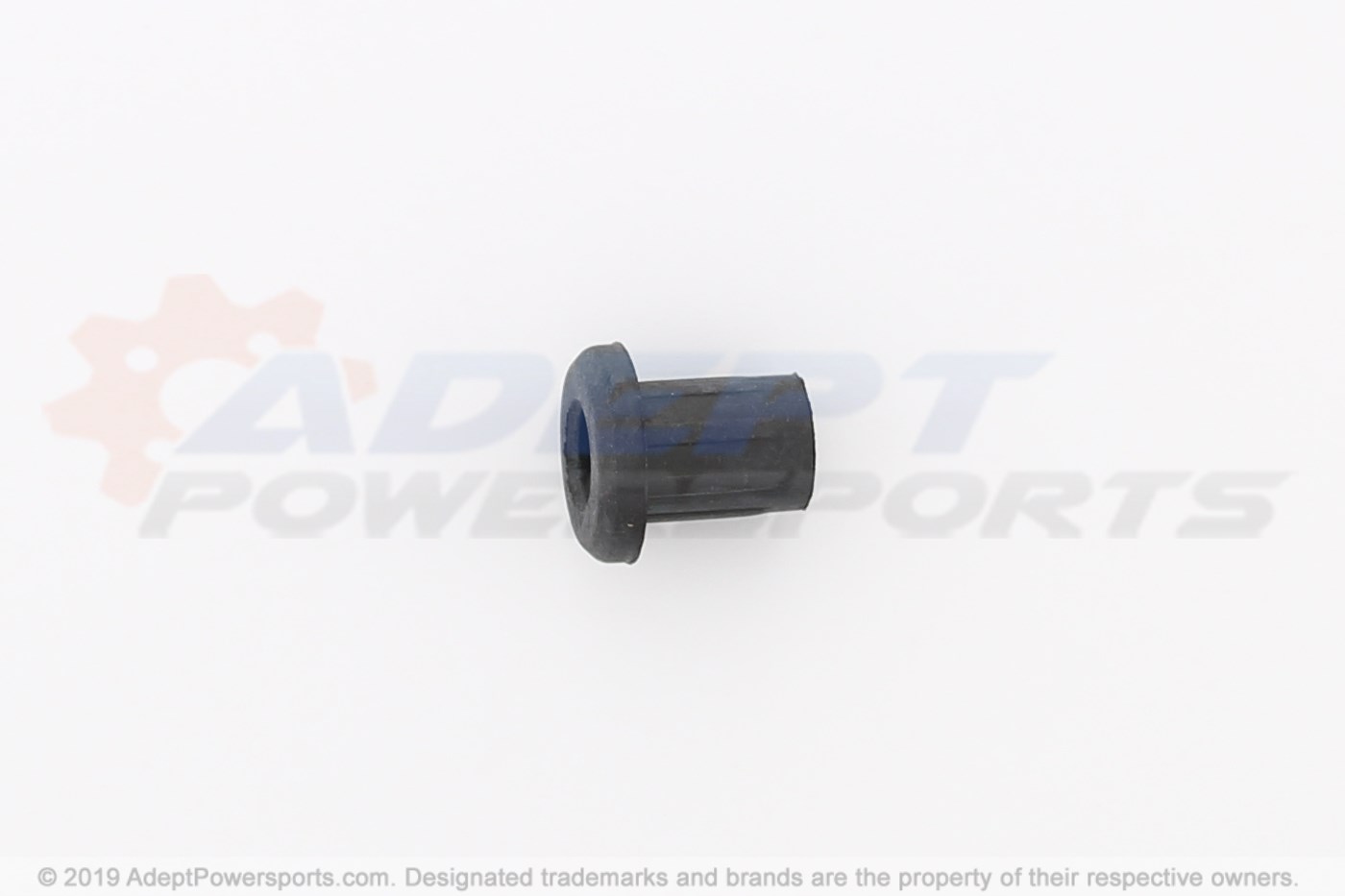

16	GROMMET, CASTELLATED Part #: T3020601 Required per assembly: 2 $5.16 - + Add to cart
17	FLANGED, SLEEVE, 6.4, X, 9.6, X, 13.4 Part #: T3010710 Required per assembly: 2 $5.28 - + Add to cart
18	BOLT, RHHF, M6X1.0X25, SLV Part #: T3200190 Required per assembly: 2 $3.42 - + Add to cart
19	PROTECTIVE, FILM, FUEL, TANK Part #: T2403440 Required per assembly: 2 $3.98 - + Add to cart
21	DRAIN, HOSE, FUEL, TANK Part #: T2401844 Required per assembly: 1 $14.65 - + Add to cart
22	PAD, RUBBER, FUEL, TANK, -, FRAME Part #: T2400641 Required per assembly: 2 $3.56 - + Add to cart
23	RUBBER, STRIP, 30, X, 10, X, 1.3 Part #: T3660194 Required per assembly: 2 $10.03 - + Add to cart
24	RUBBER, PAD, 30, X, 45, X, 3 Part #: T3660175 Required per assembly: 2 $7.28 - + Add to cart
25	CABLE TIE Part #: T3700015 Required per assembly: 1 $1.18 - + Add to cart
26	CLIP, WIRE, SADDLE, SIDE, ENTRY Part #: T3700243 Required per assembly: 1 $4.13 - + Add to cart
27	LEVEL, SENDER, FUEL, TANK Part #: T2406999 Required per assembly: 1 ~~$150.87~~ $148.27 - + Add to cart
