Instruments replacement parts for Triumph Thruxton 900 Carbs

OEM Parts Triumph Thruxton 900 Carbs Instruments

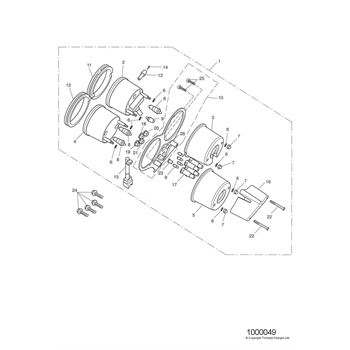

Instruments Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	INSTRUMENT, ASSEMBLY, KM/H Part #: T2501456 Required per assembly: 1 Note: All Markets except UK,CY,SG,TW & US - F2 Not Available
1	INSTRUMENT, ASSEMBLY, MPH Part #: T2501455 Required per assembly: 1 Note: UK,CY,SG,TW & US - F2 ~~$1,161.82~~ $351.01 - + Add to cart
2	SPEED, GAUGE, KPH Part #: T2501288 Required per assembly: 1 Note: All Markets except UK,CY,SG,TW & US 298540-F2> / 329810-F4> Not Available
2	SPEEDO, GAUGE, KPH Part #: T2501265 Required per assembly: 1 Note: All Markets except UK,CY,SG,TW & US >298539-F2 / >329809-F4 ~~$378.49~~ $114.44 - + Add to cart
2	SPEEDO, GAUGE, MPH Part #: T2501261 Required per assembly: 1 Note: UK,CY,SG,TW & US >311005-F2 / >329685-F4 Not Available
2	SPEEDO, GAUGE, MPH Part #: T2501287 Required per assembly: 1 Note: UK,CY,SG,TW & US 311006-F2> / 329686-F4> Not Available
3	SPEEDOMETER, CAN, BLACK Part #: T2501185 Required per assembly: 1 Note: SPEEDO CAN ~~$151.38~~ $148.77 - + Add to cart
4	GAUGE, TACHO Part #: T2503119 Required per assembly: 1 Note: MPH 311006-F2> / 329686-F4>; KPH 298540-F2> / 329810-F4> ~~$404.89~~ $396.33 - + Add to cart
4	TACHO GAUGE Part #: T2501262 Required per assembly: 1 Note: MPH >311005-F2 / >329685-F4; KPH >298539-F2 / >329809-F4 ~~$404.89~~ $396.33 - + Add to cart
5	TACHO, CAN, BLACK Part #: T2501186 Required per assembly: 1 Note: TACHO CAN ~~$151.38~~ $148.77 - + Add to cart
6	WASHER, INSTRUMENT, CAN Part #: T2501188 Required per assembly: 8 $1.68 - + Add to cart
7	NUT, INSTRUMENT, CAN Part #: T2501189 Required per assembly: 4 $2.95 - + Add to cart
8	BULB, INSTRUMENTS, 1.7W Part #: T2502089 Required per assembly: 3 Note: 12V,1.7W,DIA 6.5 mm $3.56 - + Add to cart
9	BULB, INSTRUMENTS, T6.5, 1.7W Part #: 2500085T0301 Required per assembly: 5 Note: 12V,1.7W,DIA 6.5 mm $7.09 - + Add to cart
10	PRESSING INSTRUMENTS Part #: T2501263 Required per assembly: 1 ~~$38.12~~ $37.45 - + Add to cart
11	DAMPER RUBBER Part #: T2501203 Required per assembly: 1 $19.11 - + Add to cart
12	DAMPER RING Part #: T2503839 Required per assembly: 1 $18.73 - + Add to cart
13	TRIP, KNOB, SPEEDO Part #: T2501172 Required per assembly: 1 Note: RESET KNOB $11.46 - + Add to cart
14	SCREW, RESET, KNOB Part #: T2501205 Required per assembly: 1 Note: RESET KNOB $1.85 - + Add to cart
15	SUBHARNESS, INSTRUMENTS Part #: T2501225 Required per assembly: 1 ~~$177.80~~ $174.74 - + Add to cart
16	COVER, LIGHT, UNIT Part #: T2501255 Required per assembly: 1 ~~$55.43~~ $54.46 - + Add to cart
17	LIGHT, UNIT, RUBBER Part #: T2501208 Required per assembly: 4 Note: RUBBER $7.28 - + Add to cart
18	LENS, INDICATOR Part #: T2501209 Required per assembly: 1 Note: INDICATOR $16.42 - + Add to cart
19	LENS, HIGH, BEAM Part #: T2501210 Required per assembly: 1 Note: HIGH BEAN $12.36 - + Add to cart
20	LENS, OIL, WARNING Part #: T2501211 Required per assembly: 1 Note: OIL WARNING $12.36 - + Add to cart
21	LENS, NEUTRAL Part #: T2501212 Required per assembly: 1 Note: NEUTRAL $22.65 - + Add to cart
22	SCREW, LIGHT, UNIT Part #: T2501216 Required per assembly: 2 Note: LIGHT UNIT $2.13 - + Add to cart
23	PLUG, LED Part #: T2501227 Required per assembly: 1 $3.84 - + Add to cart
24	BOLT, BUT/HD, M5X0.8X17, SHLD, SLV Part #: T3331063 Required per assembly: 4 $2.84 - + Add to cart
25	SCREW, M4X12.0X0.7, PAN, HD, SS Part #: T2501226 Required per assembly: 2 Note: M4 x 12,PAN HD,SS $2.13 - + Add to cart
26	HOLDER, WARNING, LIGHT Part #: T2501214 Required per assembly: 1 Note: WARNING LIGHT Not Available
