Styling / Screen, Short, Painted replacement parts for Triumph Thruxton R

OEM Parts Triumph Thruxton R Styling / Screen, Short, Painted

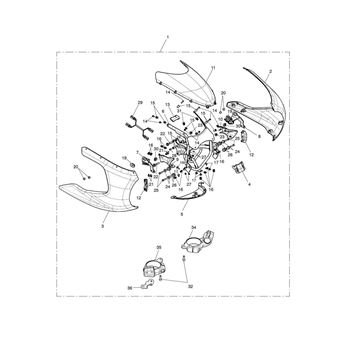

Styling / Screen, Short, Painted Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	COLOUR CO-ORDINATED SUMMER SCREEN - COMPETITION GR Part #: A9708381HN Required per assembly: 1 Note: Market Restrictions Apply - Requires Mount Kit A9708590 $250.00 $245.70 - + Add to cart
1	COLOUR CO-ORDINATED SUMMER SCREEN - MATT JET BLACK Part #: A9708381PS Required per assembly: 1 Note: Market Restrictions Apply - Requires Mount Kit A9708590 $250.00 $245.70 - + Add to cart
1	COLOUR CO-ORDINATED SUMMER SCREEN - PURE WHITE Part #: A9708381NK Required per assembly: 1 $250.00 $245.70 - + Add to cart
1	COLOUR CO-ORDINATED SUMMER SCREEN - DIABLO RED Part #: A9708381CW Required per assembly: 1 Note: Requires Mount Kit A9708590 $250.00 $198.80 - + Add to cart
1	COLOUR CO-ORDINATED SUMMER SCREEN - CRYSTAL WHITE Part #: A9708381NW Required per assembly: 1 Not Available
