Mudguards replacement parts for Triumph Thunderbird

OEM Parts Triumph Thunderbird Mudguards

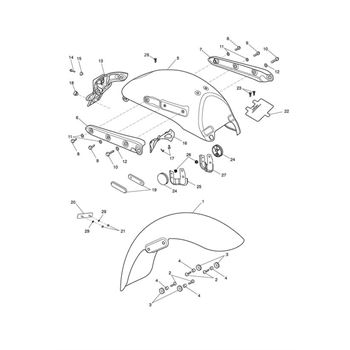

Mudguards Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	MUDGUARD, ASSEMBLY, FRONT, PAINTED, PV Part #: T2305920PV Required per assembly: 1 Note: Phantom Blue Haze $461.45 $453.51 - + Add to cart
1	MUDGUARD, ASSEMBLY, FRONT, PAINTED, PU Part #: T2305920PU Required per assembly: 1 Note: Phantom Red Haze $708.63 $696.43 - + Add to cart
1	MUDGUARD, ASSEMBLY, FRONT, PNTD, NW Part #: T2305920NW Required per assembly: 1 Note: Crystal White $708.63 $696.43 - + Add to cart
1	MUDGUARD, ASSEMBLY.FRNT.PNTD.MH/PG Part #: T2305920MH Required per assembly: 1 Note: Aluminium Silver/Jet Black > 450960 $708.63 $696.43 - + Add to cart
1	MUDGUARD, ASSEMBLY, FRONT, PAINTED, CY Part #: T2305920CY Required per assembly: 1 Note: Marble Red Haze - 519898 > $526.36 $478.51 - + Add to cart
1	MUDGUARD, ASSEMBLY, FRNT, PNTD, RED Part #: T2305920CU Required per assembly: 1 Note: Carnival Red - Special Edition Only $708.63 $696.43 - + Add to cart
1	MUDGUARD, ASSEMBLY, FRONT, PNTD, MH/PR Part #: T2303077MH Required per assembly: 1 Note: Aluminium Silver/Phantom Black; 450961 > $708.63 $696.43 - + Add to cart
1	MUDGUARD, ASSEMBLY, FRONT, PAINTED, PR Part #: T2303076PR Required per assembly: 1 Note: Phantom Black; 450961 > $708.63 $696.43 - + Add to cart
1	MUDGUARD, ASSEMBLY, FRNT, PNTD, BLACK Part #: T2303076PG Required per assembly: 1 Note: Jet Black > 450960 $708.63 $696.43 - + Add to cart
1	MUDGUARD, ASSEMBLY, FRNT, PNTD, JI/NF Part #: T2303076JI Required per assembly: 1 Note: Pacific Blue/Fusion White > 550006 $461.45 $453.51 - + Add to cart
1	MUDGUARD, ASSEMBLY, FRNT, PNTD, CX Part #: T2303076CX Required per assembly: 1 Note: Cranberry Red; 472064 > 550006 $788.07 $716.43 - + Add to cart
1	FRONT MUDGUARD ASSEMBLY Part #: T2305920JW Required per assembly: 1 Note: Marble Blue Haze - 568250 > $793.57 $721.43 - + Add to cart
1	FRONT MUDGUARD ASSEMBLY Part #: T2305919JD Required per assembly: 1 Note: Caspian Blue/Phantom Black - 550007 > 657552 $793.57 $721.43 - + Add to cart
1	FRONT MUDGUARD ASSEMBLY Part #: T2305919CX Required per assembly: 1 Note: Cranberry Red/Phantom Black - 550007 > 603095 $526.36 $478.51 - + Add to cart
1	FRONT MUDGUARD ASSEMBLY Part #: T2303077CD Required per assembly: 1 Note: Lava Red/Silver Frost; 603096 > $793.57 $721.43 - + Add to cart
2	SCREW, PAN/HD, TX, M6X1.0X25, ENC Part #: T3331041 Required per assembly: 4 $1.07 $0.97 - + Add to cart
3	GROMMET, DIA11.8X4.0 Part #: T3020050 Required per assembly: 4 $5.25 $4.77 - + Add to cart
4	COMPRESSION, LIMITER, ID6.5 Part #: T3010297 Required per assembly: 4 $4.37 $3.98 - + Add to cart
5	MUDGUARD, REAR, ASSEMBLY, PNTD, MH/PR Part #: T2303079MH Required per assembly: 1 Note: Aluminium Silver/Phantom Black; 450961 > $820.37 $806.26 - + Add to cart
5	MUDGUARD, REAR, ASSEMBLY, PAINTED, PR Part #: T2303078PR Required per assembly: 1 Note: Phantom Black; 450961 > $895.48 $880.07 - + Add to cart
5	MUDGUARD, ASSEMBLY, REAR, PNTD, BLACK Part #: T2303078PG Required per assembly: 1 Note: Jet Black > 450960 $895.48 $880.07 - + Add to cart
5	MUDGUARD, REAR, ASSEMBLY, PNTD, JI/NF Part #: T2303078JI Required per assembly: 1 Note: Pacific Blue/Fusion White > 550006 $895.48 $880.07 - + Add to cart
5	MUDGUARD, REAR, ASSEMBLY, PNTD, CX/PR Part #: T2303078CX Required per assembly: 1 Note: Cranberry Red; 472064 > 550006 $895.48 $880.07 - + Add to cart
5	MUDGUARD, ASSEMBLY, REAR, PNTD, NW/JM Part #: T2306411NW Required per assembly: 1 Note: Crystal White/Sapphire Blue with Blue Decal $895.48 $880.07 - + Add to cart
5	MUDGUARD, REAR, ASSEMBLY, PAINTED, PV Part #: T2306320PV Required per assembly: 1 Note: Phantom Blue Haze $828.94 $814.68 - + Add to cart
5	MUDGUARD, ASSEMBLY, REAR, PNTD, NW/JM Part #: T2306320NW Required per assembly: 1 Note: Crystal White/Sapphire Blue with Red Decal $895.48 $880.07 - + Add to cart
5	MUDGUARD, RA, PAINTED, MH/PG Part #: T2306320MH Required per assembly: 1 Note: Aluminium Silver/Jet Black > 450960 $895.48 $880.07 - + Add to cart
5	MUDGUARD, REAR, ASSEMBLY, PAINTED, CY Part #: T2306320CY Required per assembly: 1 Note: Marble Red Haze - 519898 > 603095 $895.48 $880.07 - + Add to cart
5	MUDGUARD, REAR, ASSEMBLY, PNTD, RED Part #: T2306320CU Required per assembly: 1 Note: Carnival Red - Special Edition Only $828.94 $814.68 - + Add to cart
5	REAR MUDGUARD ASSEMBLY Part #: T2306320PU Required per assembly: 1 Note: Phantom Red Haze Not Available
5	REAR MUDGUARD ASSEMBLY Part #: T2303078JD Required per assembly: 1 Note: Caspian Blue/Phantom Black - 550007 > 657552 $895.48 $880.07 - + Add to cart
5	REAR MUDGUARD ASSEMBLY Part #: T2306320JW Required per assembly: 1 Note: Marble Blue Haze - 568250 > $828.94 $814.68 - + Add to cart
5	REAR MUDGUARD ASSEMBLY Part #: T2303079CD Required per assembly: 1 Note: Lava Red/Silver Frost; 603096 > $895.48 $880.07 - + Add to cart
6	MUDGUARD, SUPPORT, PRESSING, RH Part #: T2306348 Required per assembly: 1 $58.09 $57.08 - + Add to cart
7	MUDGUARD, SUPPORT, PRESSING, LH Part #: T2306349 Required per assembly: 1 $58.09 $57.08 - + Add to cart
8	BOLT, HHF, LGHTD, M8X1.25X25, SLV Part #: T3205781 Required per assembly: 2 Note: > 458367 $1.64 $1.49 - + Add to cart
8	BOLT, HHF, LGHTD, M8X1.25X25, SLV Part #: T3205781 Required per assembly: 2 Note: 458368 > $1.64 $1.49 - + Add to cart
9	BOLT, HHF, M8X1.25X33, A2SS Part #: T3200455 Required per assembly: 2 Note: N/A to Special Edition > 458361 $6.79 $6.17 - + Add to cart
9	BOLT, HHF, LGHTD, M8X1.25X33, SLV Part #: T3205868 Required per assembly: 2 Note: N/A to Special Edition - 458362 > $6.79 $6.17 - + Add to cart
10	BOLT, HHF, M8X1.25X45, A2SS Part #: T3200452 Required per assembly: 2 Note: N/A to Special Edition > 458361 $8.03 $7.30 - + Add to cart
10	BOLT, HHF, LGHTD, M10X1.25X45, SLV Part #: T3205825 Required per assembly: 2 Note: N/A to Special Edition - 458362 > $6.98 $6.35 - + Add to cart
11	WASHER, M8, 8.4X15.0X1.6, SLV Part #: T3551282 Required per assembly: 4 $3.46 $3.15 - + Add to cart
12	WASHER, M10, 10.5X18.0X1.6, SLV Part #: T3551283 Required per assembly: 2 $2.05 $1.86 - + Add to cart
13	MOULDING, REG, PLATE Part #: T2700827 Required per assembly: 1 $53.82 $52.89 - + Add to cart
14	BOLT, HHF, LGHTD, M6, X, 16, SLV Part #: T3205063 Required per assembly: 1 $3.57 $3.24 - + Add to cart
15	FLANGED, SLEEVE, M6X10X6.5 Part #: T3010707 Required per assembly: 1 $3.66 $3.32 - + Add to cart
16	MOULDING, COVER, HARNESS Part #: T2304224 Required per assembly: 1 $11.69 $11.48 - + Add to cart
17	BOLT, RHHF, M6X1X10, S/S Part #: T3203201 Required per assembly: 2 $6.88 $6.25 - + Add to cart
18	FOOT, RUBBER, DIA14.2X7.11 Part #: T3021161 Required per assembly: 1 $2.20 $2.00 - + Add to cart
19	REFLECTOR, RED, OVAL, US, UC, CA, SG Part #: T2700443 Required per assembly: 2 Note: US, ZA & CA Only - N/A to Special Edition $6.26 $5.69 - + Add to cart
20	REFLEX REFLECTOR Part #: T2707111 Required per assembly: 1 $8.88 $8.72 - + Add to cart
21	WASHER, DIA, 5MM, RETAINING Part #: T3550253 Required per assembly: 2 $0.98 $0.89 - + Add to cart
22	BAFFLE, RUBBER Part #: T2306032 Required per assembly: 1 Note: > 433196 $13.73 $13.49 - + Add to cart
23	CLIP, BUTTON, HEAD, BLACK Part #: T3702073 Required per assembly: 2 Note: > 433196 $1.05 $0.95 - + Add to cart
23	CLIP, BUTTON, HEAD, BLACK Part #: T3702073 Required per assembly: 2 $1.05 $0.95 - + Add to cart
24	REFLECTOR, RED, CIRCULAR Part #: T2700464 Required per assembly: 2 Note: Special Edition Only; US, CA, AR, ZA & TW Only $7.30 $6.63 - + Add to cart
25	REFLECTOR, BRACKET, RH Part #: T2705500 Required per assembly: 1 Note: Special Edition Only; US, CA, AR, ZA & TW Only $9.69 $8.81 - + Add to cart
26	LOCKNUT M5 Part #: T3350010 Required per assembly: 2 Note: Special Edition Only; US, CA, AR, ZA & TW Only $2.29 $2.08 - + Add to cart
27	REFLECTOR, BRACKET, LH Part #: T2705501 Required per assembly: 1 Note: Special Edition Only; US, CA, AR, ZA & TW Only $59.81 $58.77 - + Add to cart
28	BUTTON, ., FIR, TREE, M6 Part #: T3450101 Required per assembly: 1 $1.42 $1.29 - + Add to cart
29	O-RING ID5.6 X 2.2 Part #: T3600109 Required per assembly: 2 $5.42 $4.93 - + Add to cart
