Alternator/ Starter Drive Gears replacement parts for Triumph Thunderbird

OEM Parts Triumph Thunderbird Alternator/ Starter Drive Gears

Alternator/ Starter Drive Gears Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT, M8, X, 1.25, X, 102.5 Part #: T3150129 Required per assembly: 1 Note: ENG NO 62372 > M8 x 102.5mm $4.37 $3.98 - + Add to cart
1	SPARES, KIT, ALT, THRO, BOLT/NUT Part #: T3150135 Required per assembly: 1 Note: ENG NO 56685 > > ENG NO 62371 $3.66 $3.32 - + Add to cart
1	BOLT Part #: 3150015T0301 Required per assembly: 1 Note: > ENG NO 56684 $5.04 $4.58 - + Add to cart
2	WASHER, HARDENED, M8 Part #: T3550022 Required per assembly: 2 Note: Hardened $3.22 $2.93 - + Add to cart
3	ALTERNATOR GEAR ASSEMBLY Part #: T1220960 Required per assembly: 1 Note: 23707 > Not Available
3	GEAR, ASSEMBLY, ALTERNATOR, DRIVE Part #: 1220460T0301 Required per assembly: 1 Note: > 23706 Not Available
4	SLEEVE ALT SHAFT Part #: T1220285 Required per assembly: 1 $37.49 $36.83 - + Add to cart
5	NEEDLE BEARING Part #: 3800019T0301 Required per assembly: 1 $61.50 $60.43 - + Add to cart
6	CIRCLIP, EXT, 23.5X1.2 Part #: T3500201 Required per assembly: 1 $4.44 $4.04 - + Add to cart
7	THRUST WASHER Part #: 1220330T0301 Required per assembly: 2 $0.88 $0.85 - + Add to cart
8	BEARING, BALL, 254712 Part #: T3800011 Required per assembly: 1 $39.39 $38.71 - + Add to cart
11	SCREW, CAP/HD, M6X1X16, ENC, RAW Part #: T3051063 Required per assembly: 6 $0.58 $0.52 - + Add to cart
14	SPACER, SPRAG, CLUTCH Part #: 1220291T0301 Required per assembly: 1 Not Available
15	SHAFT, SPLINED, ALTERNATOR, DRIVE Part #: T1220268 Required per assembly: 1 Note: Eng No 56685 > Not Available
15	ALTERNATOR SHAFT SPARES KIT Part #: T1220800 Required per assembly: 1 Note: > Eng No 56684 Not Available
16	BALL BEARING Part #: 3800020T0301 Required per assembly: 1 Not Available
17	WASHER, M10, 10.5X18.0X1.6, SLV Part #: T3551283 Required per assembly: 3 $2.05 $1.86 - + Add to cart
18	SCREW, CAP/HD, M6X1X12, ENC, RAW Part #: T3051062 Required per assembly: 2 $1.40 $1.27 - + Add to cart
19	HOUSING, ALTERNATOR, SHOCK Part #: T1220247 Required per assembly: 1 $57.26 $56.26 - + Add to cart

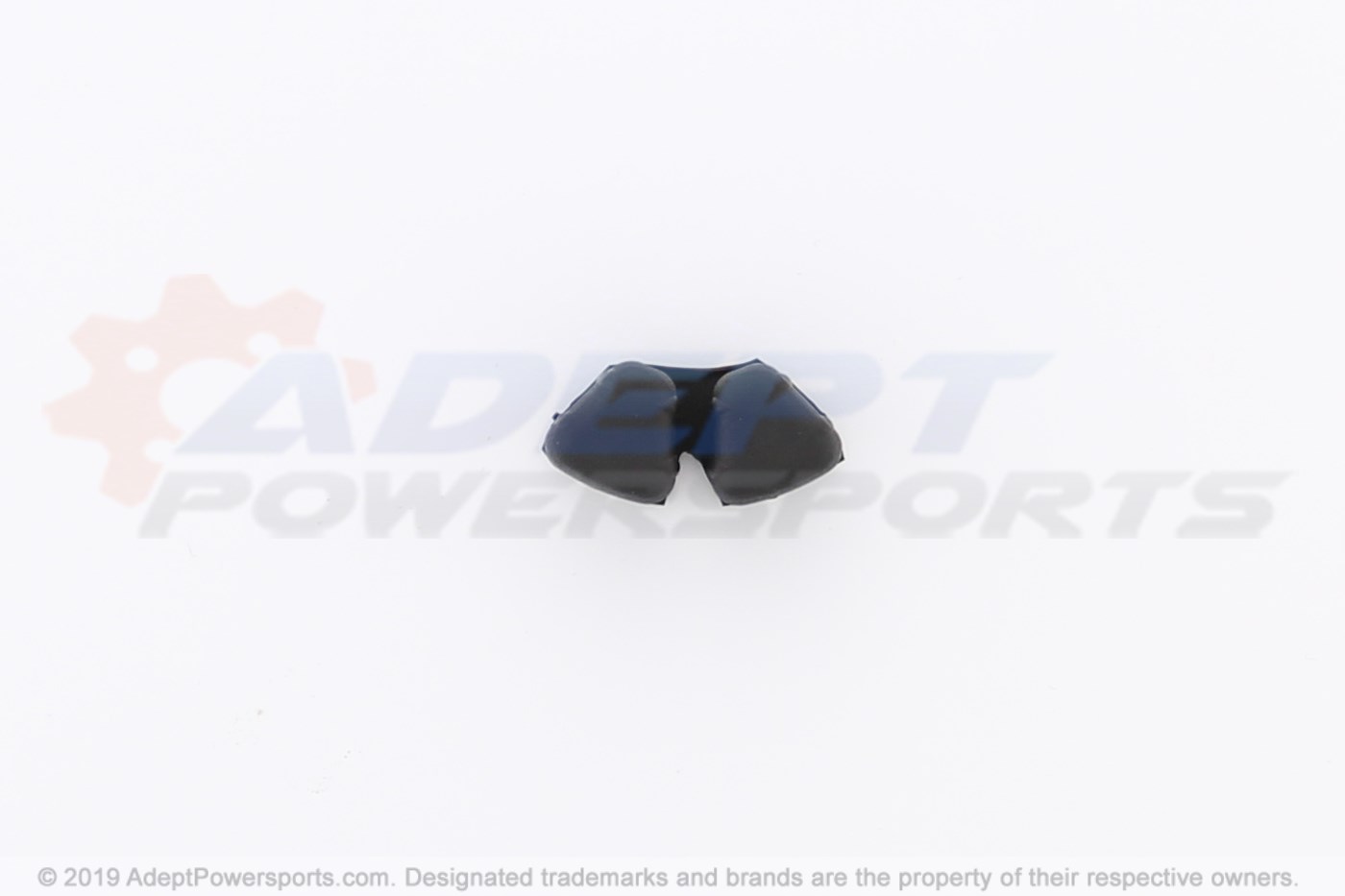

20	RUBBER, ALT, CUSH, DRIVE Part #: T1220325 Required per assembly: 4 Not Available
21	BOLT, HHF, ENCAP, M6X16, RAW Part #: T3150125 Required per assembly: 1 Note: M6 x 13mm Not Available
22	BELLEVILLE WASHER Part #: 3550031T0301 Required per assembly: 1 $1.00 $0.91 - + Add to cart
23	CENTRE, ALTERNATOR, SHOCK Part #: T1220307 Required per assembly: 1 Note: PART NO LONGER AVAILABLE Not Available
24	ASSEMBLY, SPRAG, CL, 51T Part #: T1221035 Required per assembly: 1 Note: ENG NO 109316 > > ENG NO 114565 Use with 15 tooth starter gear For further information, see Service Bulletin 194 $352.27 $346.20 - + Add to cart
24	ASSEMBLY, SPRAG, CL, 51T Part #: T1221035 Required per assembly: 1 Note: ENG NO 114693 > $352.27 $346.20 - + Add to cart
24	ASSEMBLY, SPRAG., CL., 51T Part #: T1221025 Required per assembly: 1 Note: > ENG NO 109315 Use with 15 tooth starter gear For further information, see Service Bulletin 194 $352.27 $346.20 - + Add to cart
24	ASSEMBLY, SPRAG., CL., 51T Part #: T1221025 Required per assembly: 1 Note: ENG NO 114566 > > ENG NO 114692 $352.27 $346.20 - + Add to cart
24	ASSEMBLY, SPRAG., CL., 53T Part #: T1221030 Required per assembly: 1 Note: Use with 13 tooth starter gear For further information, see Service Bulletin 194 $352.27 $346.20 - + Add to cart
25	BOLT Part #: 3150015T0301 Required per assembly: 1 Note: > ENG NO 56684 $5.04 $4.58 - + Add to cart
25	NUT M8 X 1.25 Part #: T3350112 Required per assembly: 1 Note: ENG NO 62372 > $8.50 $7.73 - + Add to cart
25	SPARES, KIT, ALT, THRO, BOLT/NUT Part #: T3150135 Required per assembly: 1 Note: ENG NO 56685 > > ENG NO 62371 $3.66 $3.32 - + Add to cart
