Fuel Tank & Fittings replacement parts for Triumph Thunderbird Commander

OEM Parts Triumph Thunderbird Commander Fuel Tank & Fittings

Fuel Tank & Fittings Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FUEL, TANK, SPARES, ASSEMBLY Part #: T2401379DE Required per assembly: 1 Note: Crimson Sunset/Lava Red > 713760; Includes badges item 2 & 3 and heat pads, items 15, 16 & 17 $3,478.76 $3,418.92 - + Add to cart
1	FUEL, TANK, SPARES, ASSEMBLY Part #: T2401379PG Required per assembly: 1 Note: Jet Black; Includes badges item 2 & 3 and heat pads, items 15, 16 & 17 $2,512.44 $2,469.22 - + Add to cart
1	FUEL, TANK, SPARES, ASSEMBLY Part #: T2401379PR Required per assembly: 1 Note: Phantom Black/Storm Grey; Includes badges item 2 & 3 and heat pads, items 15, 16 & 17 $3,478.76 $3,418.92 - + Add to cart
1	FUEL, TANK, SPARES, ASSEMBLY Part #: T2401379DC Required per assembly: 1 Note: Lithium Flame/Frozen Silver 713761 >; Includes badges item 2 & 3 and heat pads, items 15, 16 & 17 $3,478.76 $3,418.92 - + Add to cart
2	TANK, BADGE, RH Part #: T2400696 Required per assembly: 1 $58.99 $57.97 - + Add to cart
3	TANK, BADGE, LH Part #: T2400697 Required per assembly: 1 $58.99 $57.97 - + Add to cart
4	FUEL, FILLER, CAP, SCREW, TYPE Part #: T2400597 Required per assembly: 1 $99.14 $97.43 - + Add to cart
5	SCREW, CSK, M6, X, 50, SLV Part #: T3330934 Required per assembly: 1 $1.14 $1.03 - + Add to cart
6	GROMMET, CASTELATED Part #: T3020603 Required per assembly: 1 $4.09 $3.72 - + Add to cart
7	FLANGED, SLEEVE, CSK, M6 Part #: T3010180 Required per assembly: 1 $15.38 $15.10 - + Add to cart
8	BUSH, RUBBER Part #: T2400446 Required per assembly: 2 $3.31 $3.01 - + Add to cart
9	COMPRESSION LIMITING ROD Part #: T3330588 Required per assembly: 1 $7.87 $7.16 - + Add to cart
10	BOLT, RHHF, M6X1X105, BLK, ENC Part #: T3205079 Required per assembly: 1 $3.57 $3.24 - + Add to cart
11	FLANGED, LOCK, NUT, M6 Part #: T3350003 Required per assembly: 1 $0.68 $0.62 - + Add to cart
12	VALVE, ROLL-OVER Part #: T2405042 Required per assembly: 1 $36.30 $35.67 - + Add to cart
13	HOSE, TANK, VENT, UPPER Part #: T2404155 Required per assembly: 1 $16.24 $15.95 - + Add to cart
14	NUT, CAPTIVE, M6 Part #: T3350111 Required per assembly: 3 $5.02 $4.56 - + Add to cart
15	HEAT, PAD, FUEL, TANK, LH Part #: T2404105 Required per assembly: 1 $51.79 $50.89 - + Add to cart
16	HEAT, PAD, FUEL, TANK, CENTRE Part #: T2404106 Required per assembly: 1 $51.79 $50.89 - + Add to cart
17	HEAT, PAD, FUEL, TANK, RH Part #: T2404107 Required per assembly: 1 $51.79 $50.89 - + Add to cart

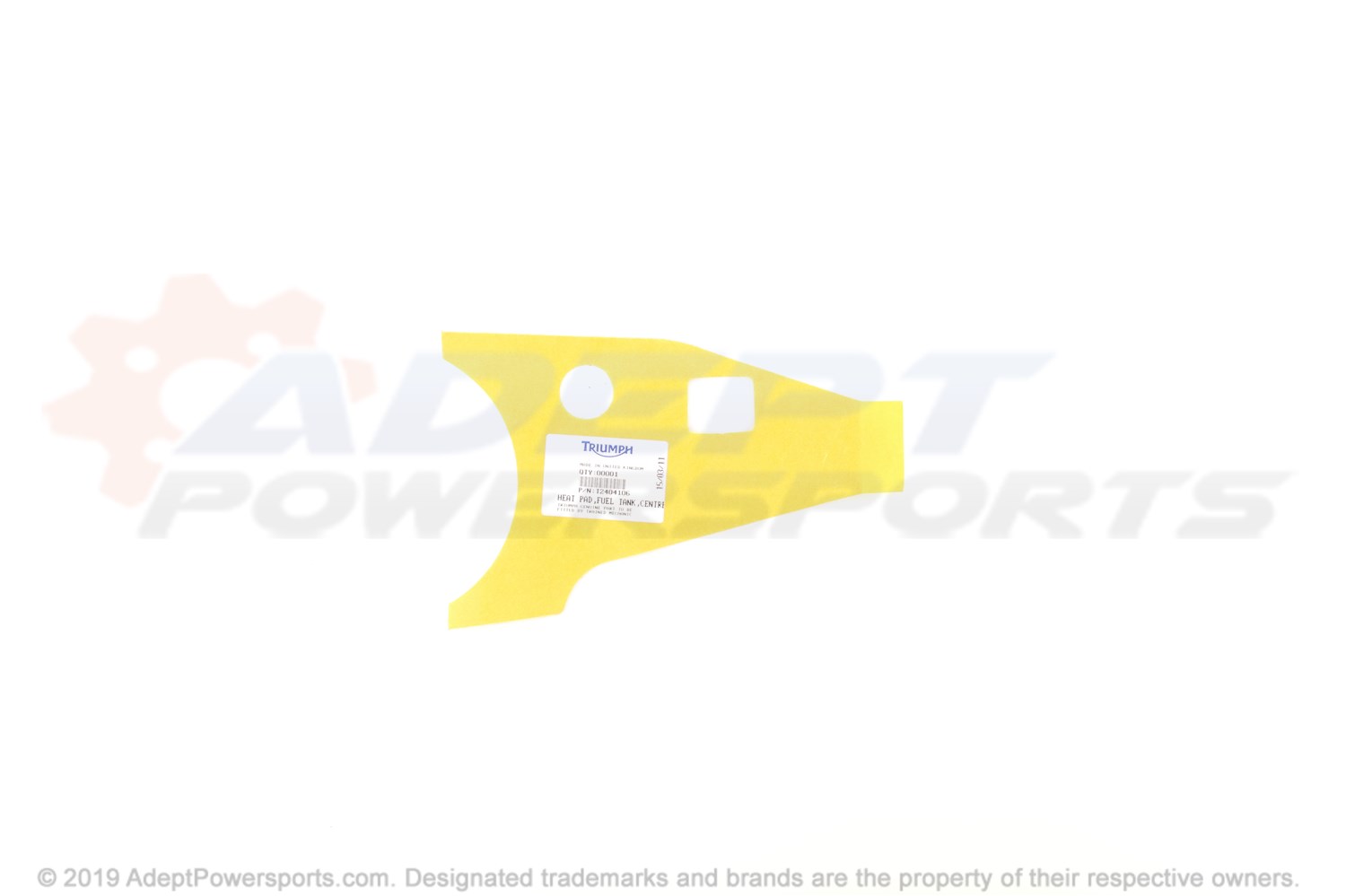

18	COVER, FUEL, TANK, BRACKET Part #: T2401511 Required per assembly: 1 $18.46 $18.13 - + Add to cart
