Handlebars, Top Yoke, Cables & Mirrors replacement parts for Triumph Thunderbird Storm

OEM Parts Triumph Thunderbird Storm Handlebars, Top Yoke, Cables & Mirrors

Handlebars, Top Yoke, Cables & Mirrors Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	YOKE, UPPER, ASSEMBLY, BLK Part #: T2049234 Required per assembly: 1 ~~$448.88~~ $438.15 - + Add to cart
2	SCREW, CAP, H/D, M10X30, SS Part #: T3050191 Required per assembly: 2 $8.00 - + Add to cart
3	RISER, HANDLEBAR, BLK Part #: T2049235 Required per assembly: 2 ~~$79.19~~ $77.82 - + Add to cart
4	BOLT, SKT, HD, M10, 75LG, ENC Part #: T3332545 Required per assembly: 2 $7.01 - + Add to cart
5	WIRE/HOSE GUIDE Part #: T2049206 Required per assembly: 1 $8.40 - + Add to cart
6	WIRE/HOSE GUIDE Part #: T2049212 Required per assembly: 1 $8.40 - + Add to cart
7	SCREW, BUT/HD, SKT, M8X1.25X20 Part #: T3335011 Required per assembly: 2 Note: N/A to Special Edition $4.52 - + Add to cart
8	CLAMP, RISER, CAP, BLK Part #: T2046730 Required per assembly: 2 ~~$37.47~~ $36.82 - + Add to cart
10	HANDLEBAR, ASSEMBLY, FLAT, BLK, 25, 4MM Part #: T2049271 Required per assembly: 1 Note: Night Storm Only $232.58 - + Add to cart
10	HANDLEBAR, FLAT, O.D, 25.4 Part #: T2049228 Required per assembly: 1 Note: N/A to Night Storm $232.58 - + Add to cart
11	WEIGHT, END, HANDLEBAR, BLACK Part #: T2044244 Required per assembly: 2 Not Available
12	SCREW, C/SUNK, SKT, M6X1.0X40, S/S Part #: T3330876 Required per assembly: 2 $5.28 - + Add to cart
13	GRIP, LH Part #: T2043716 Required per assembly: 1 Note: 610947 > ~~$47.37~~ $46.55 - + Add to cart
13	GRIP, RH Part #: T2043717 Required per assembly: 1 Note: 610947 > ~~$47.37~~ $46.55 - + Add to cart
13	KIT, HANDLEBAR, GRIPS Part #: T2043718 Required per assembly: 1 Note: > 610946 - Kit Contains LH & RH Grip ~~$43.30~~ $42.55 - + Add to cart

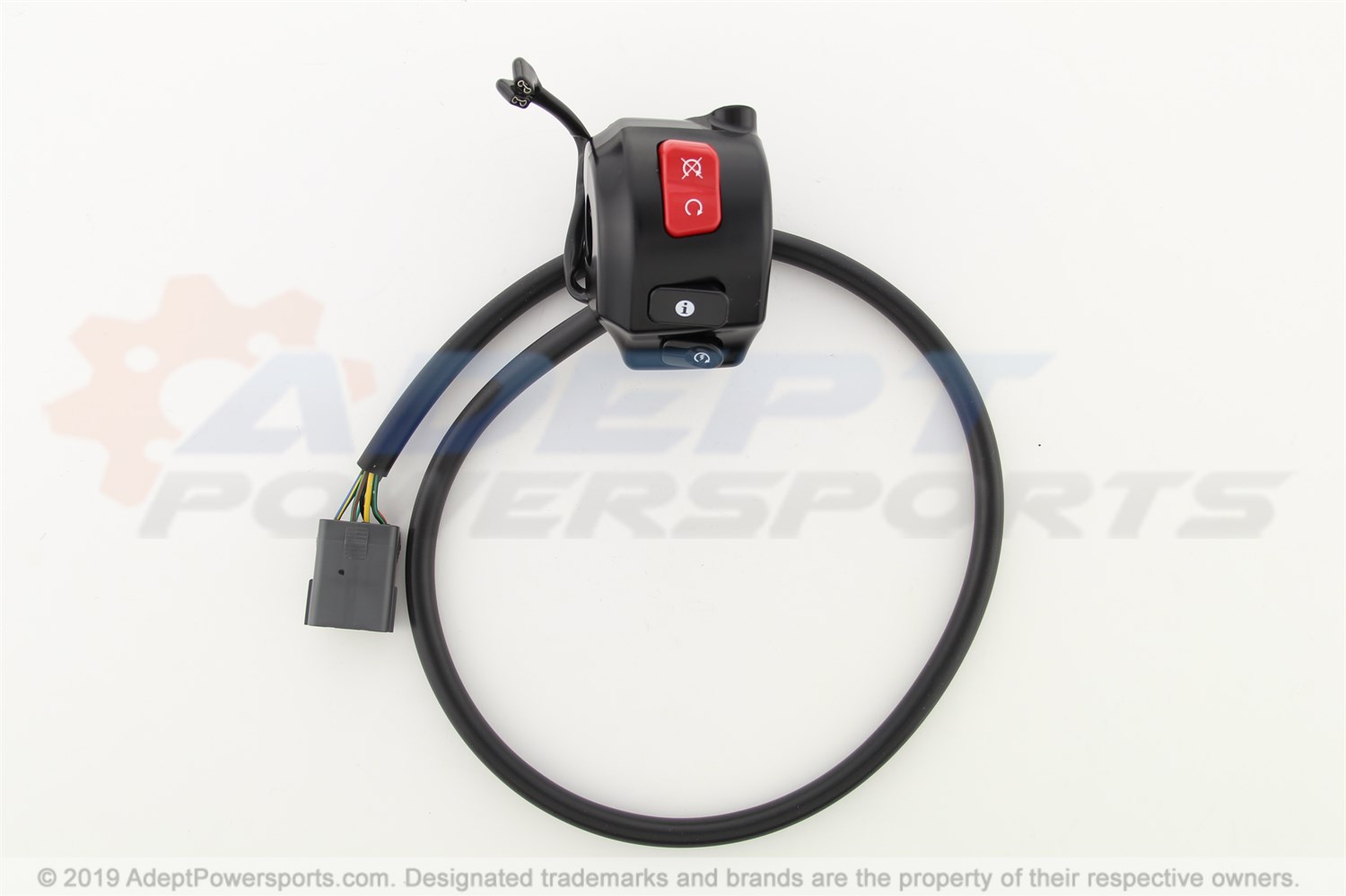

15	SWITCH, SET, ASSEMBLY, RH Part #: T2046701 Required per assembly: 1 ~~$204.21~~ $200.69 - + Add to cart
16	SCREW, PHIL, M5, X, 25 Part #: T3330018 Required per assembly: 2 $2.84 - + Add to cart
17	SCREW, CAP/HD, M8X1.25X30, SLV Part #: T3050323 Required per assembly: 4 $6.05 - + Add to cart
18	TWIN, CLIP, BRAKE, HOSE Part #: T2040811 Required per assembly: 2 $3.42 - + Add to cart
19	MOULDING, CABLE, ROUTING Part #: T2040604 Required per assembly: 1 $24.86 - + Add to cart
20	SCREW, TORX, P.H., SHLD, M6*16, BLK Part #: T3331517 Required per assembly: 2 $1.29 - + Add to cart
21	CLIP, CABLE, 15MM, T-STUD Part #: T3700350 Required per assembly: 4 $7.18 - + Add to cart
22	WASHER, 10.5, X, 30, X, 2.5 Part #: T3555030 Required per assembly: 2 $8.31 - + Add to cart
23	BUSH, RUBBER, H/BAR Part #: T2047400 Required per assembly: 2 $4.21 - + Add to cart
24	SLEEVE, DIA, 14X43 Part #: T2047589 Required per assembly: 2 $9.18 - + Add to cart
25	SCREW, PHIL, PAN/HD, M5.812, SLV Part #: T3330382 Required per assembly: 1 $0.58 - + Add to cart
26	CAP, HANDLEBAR, BUSH, BLACK Part #: T2049394 Required per assembly: 4 $25.83 - + Add to cart
27	MIRROR, ASSEMBLY, RH Part #: T2066040 Required per assembly: 1 Note: 493114 > ~~$120.01~~ $117.94 - + Add to cart
27	SPARES, KIT, MIRROR, ASSEMBLY, RH Part #: T2066080 Required per assembly: 1 Note: > 493113 ~~$124.99~~ $122.83 - + Add to cart
28	MIRROR, ASSEMBLY, LH Part #: T2066041 Required per assembly: 1 Note: 493114 > ~~$124.99~~ $122.83 - + Add to cart
28	SPARES, KIT, MIRROR, ASSEMBLY, LH Part #: T2066081 Required per assembly: 1 Note: > 493113 ~~$124.99~~ $122.83 - + Add to cart
29	TOLERANCE, RING, 12, X, 8 Part #: T3550550 Required per assembly: 2 $6.05 - + Add to cart
30	WASHER, WAVE, SPRING, M10 Part #: T3550203 Required per assembly: 2 $2.84 - + Add to cart
31	BOLT, BUT/HD, M6X1.0X21, SHLD, SLV Part #: T3330848 Required per assembly: 2 Note: 493114 > $7.42 - + Add to cart
31	SCREW, BUT/HD, M6X1.0X20, SLV Part #: T3330727 Required per assembly: 2 Note: > 493113 $4.40 - + Add to cart
32	THROTTLE, CABLE, PULL Part #: T2044300 Required per assembly: 1 ~~$44.88~~ $44.11 - + Add to cart
33	THROTTLE, CABLE, PUSH Part #: T2044301 Required per assembly: 1 ~~$44.01~~ $43.24 - + Add to cart
34	BUSH, RUBBER, H/BAR Part #: T2047400 Required per assembly: 2 $4.21 - + Add to cart
35	MIRROR, ASSEMBLY, BLACK Part #: T2066603P Required per assembly: 2 ~~$124.99~~ $122.83 - + Add to cart
