Silencers / Arrow Silencer replacement parts for Triumph Tiger 1050

OEM Parts Triumph Tiger 1050 Silencers / Arrow Silencer

Silencers / Arrow Silencer Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ARROW SILENCER "RACE Part #: A9600348 Required per assembly: 1 Note: Includes items 2-6 Not Available
2	SCREW, BUT/HD, SKT, M6, X, 1.0, X, 12, S/S Part #: T3332666 Required per assembly: 3 $4.37 $3.98 - + Add to cart
3	NUT, CAPTIVE, M6 Part #: T3350111 Required per assembly: 3 $5.02 $4.56 - + Add to cart
4	BOLT, HHF, M8X1.25X35, SLV Part #: T3202319 Required per assembly: 2 $2.68 $2.43 - + Add to cart
5	LOCKNUT, FLANGED, M8 Part #: T3350004 Required per assembly: 1 $2.33 $2.12 - + Add to cart
6	GASKET, EXHAUST Part #: T2202115 Required per assembly: 1 $10.93 $10.74 - + Add to cart
7	SIL, SLIP-ON, RACE, S/S, 5890555 Part #: A9600357 Required per assembly: 1 Note: Not structured in kit, spares condition only Not Available
8	MID-PIPE, SLIP-ON, S/S, 5735433 Part #: A9600353 Required per assembly: 1 Note: Not structured in kit, spares condition only Not Available
9	BRKT, MID-PIPE, SLIP-ON, 5833027 Part #: A9600354 Required per assembly: 1 Note: Not structured in kit, spares condition only $47.00 $46.19 - + Add to cart
10	BRKT, SILENCER, SLIP-ON, 5833026 Part #: A9600355 Required per assembly: 1 Note: Not structured in kit, spares condition only $87.00 $85.50 - + Add to cart
11	CLAMP, SILENCER, SUPPORT, 11029TH Part #: A9600359 Required per assembly: 1 Note: Not structured in kit, spares condition only Not Available

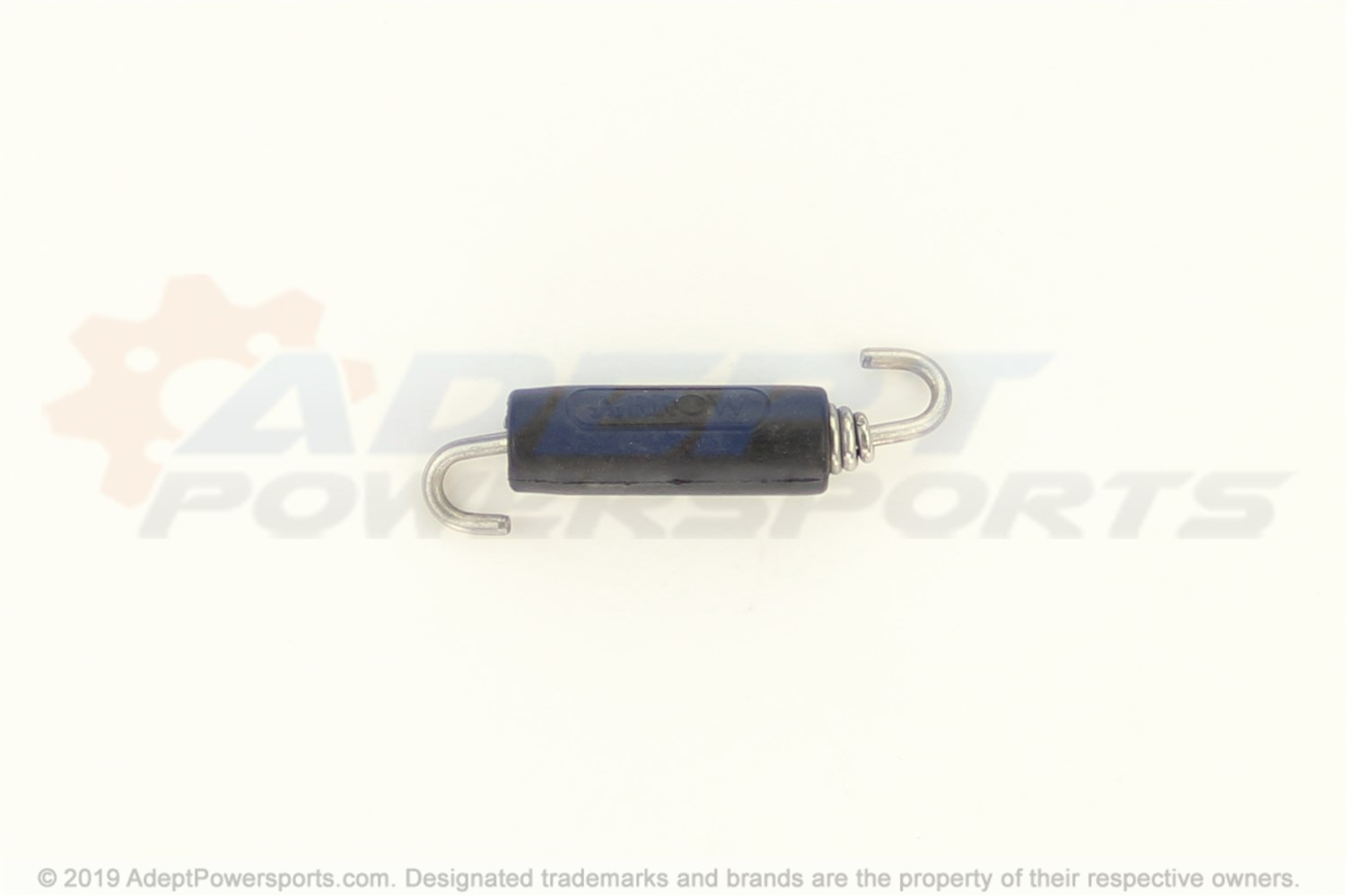

12	SPRING, RACE, (11001TH) Part #: A9600187 Required per assembly: 2 Note: Not structured in kit, spares condition only Not Available
13	H/SHLD, SIL, SLIP-ON, SS5705014 Part #: A9600356 Required per assembly: 1 Note: Not structured in kit, spares condition only Not Available
14	WASHER, M6 Part #: T3550034 Required per assembly: 1 Note: Not structured in kit, spares condition only $1.22 $1.11 - + Add to cart
15	SCREW, M6X1X16, BH, A2, SS Part #: A9910057 Required per assembly: 1 Note: Not structured in kit, spares condition only $3.41 $3.10 - + Add to cart
16	SCREW, BUT/HD, SKT, M8X1.25X25, SS Part #: T3330371 Required per assembly: 1 Note: Not structured in kit, spares condition only Not Available
17	WASHER S/S M8 X 17 Part #: A9910039 Required per assembly: 1 Note: Not structured in kit, spares condition only $1.14 $1.03 - + Add to cart
