Chassis Cooling System replacement parts for Triumph Tiger 1200 GT Explorer

OEM Parts Triumph Tiger 1200 GT Explorer Chassis Cooling System

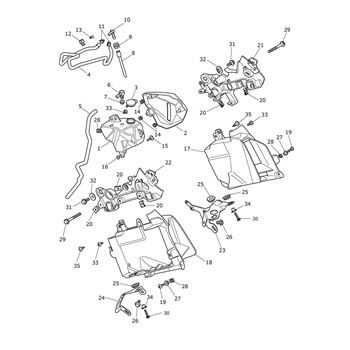

Chassis Cooling System Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	EXPANSION TANK Part #: T2100973 Required per assembly: 1 ~~$84.07~~ $82.62 - + Add to cart
2	COVER, EXPANSION, TANK Part #: T2100996 Required per assembly: 1 ~~$13.06~~ $12.82 - + Add to cart
3	CAP, EXPANSION, TANK Part #: T2101015 Required per assembly: 1 ~~$2.10~~ $1.91 - + Add to cart
4	HOSE, RADIATOR, TO, EXPANSION, TANK Part #: T2101235 Required per assembly: 1 ~~$16.57~~ $16.28 - + Add to cart
5	HOSE, OVERFLOW, EXPANSION, TANK Part #: T2101134 Required per assembly: 1 ~~$9.97~~ $9.07 - + Add to cart
6	ELBOW, OVERFLOW, COOLANT Part #: T2100433 Required per assembly: 1 ~~$7.19~~ $6.54 - + Add to cart
7	GROMMET TPE QUICKFIT. Part #: T3450141 Required per assembly: 1 ~~$2.27~~ $2.07 - + Add to cart
8	HOSE, EXPANSION, TANK, FILL Part #: T2101084 Required per assembly: 1 ~~$4.60~~ $4.18 - + Add to cart
9	GROMMET, DIA, 14.0, X, 4.0, PANEL Part #: T3021200 Required per assembly: 1 ~~$3.32~~ $3.02 - + Add to cart
10	ELBOW, I.D., 8.0, TUBE Part #: T2100405 Required per assembly: 1 ~~$1.47~~ $1.34 - + Add to cart
11	CLIP, HOSE, 11.0-12.5MM Part #: T3700440 Required per assembly: 2 ~~$5.70~~ $5.18 - + Add to cart
12	CLIP, DIA, 9.5, PLASTIC, BLACK Part #: T3700149 Required per assembly: 1 ~~$4.99~~ $4.53 - + Add to cart
13	FIR, TREE, DIA, 5.7, X, 12.7 Part #: T3450295 Required per assembly: 1 ~~$1.47~~ $1.34 - + Add to cart
14	GROMMET; 926 Part #: T3020131 Required per assembly: 3 ~~$2.10~~ $1.91 - + Add to cart
15	SCREW, BUT/HD, M6X1.0X20, SLV Part #: T3330727 Required per assembly: 1 ~~$3.57~~ $3.24 - + Add to cart
16	FLANGED, SLEEVE, M6X9.0X3.25 Part #: T3010061 Required per assembly: 1 ~~$7.59~~ $6.90 - + Add to cart
17	DUCT, RAD, MLDG, LH Part #: T2101214 Required per assembly: 1 ~~$29.25~~ $28.74 - + Add to cart
18	DUCT, RAD, MLDG, RH Part #: T2101213 Required per assembly: 1 ~~$29.25~~ $28.74 - + Add to cart
19	SCREW, BUTN/HD, M5, X, 20, SLV Part #: T3330952 Required per assembly: 2 ~~$2.59~~ $2.35 - + Add to cart
20	NUT, CAPTIVE, M5, NON, SECURED Part #: T3350123 Required per assembly: 5 ~~$2.59~~ $2.35 - + Add to cart
21	RAD, MOUNT, ASSY, LH Part #: T2101246 Required per assembly: 1 ~~$47.35~~ $46.52 - + Add to cart
22	RAD, MOUNT, ASSY, RH Part #: T2101248 Required per assembly: 1 ~~$47.35~~ $46.52 - + Add to cart
23	BRACKET, RAD, LH Part #: T2101238 Required per assembly: 1 ~~$33.72~~ $33.13 - + Add to cart
24	BRACKET, RAD, RH Part #: T2101237 Required per assembly: 1 ~~$33.72~~ $33.13 - + Add to cart
25	GROMMET, SIDE, PANEL Part #: T3020029 Required per assembly: 3 ~~$2.68~~ $2.43 - + Add to cart
26	BOLT, HHF, LGHTD, M8, X, 18, SLV Part #: T3205156 Required per assembly: 2 ~~$1.70~~ $1.54 - + Add to cart
27	FLANGE, SLEEVE, 6.4, X, 8.8.X.7.5 Part #: T3013344 Required per assembly: 2 ~~$7.30~~ $6.63 - + Add to cart
28	NUT, CAPTIVE, M5 Part #: T3350129 Required per assembly: 3 ~~$3.57~~ $3.24 - + Add to cart
29	BOLT, HHF, M8X1.25X65, SLV Part #: T3202315 Required per assembly: 2 ~~$8.61~~ $7.82 - + Add to cart
30	BOLT, HHF, LGHTD, M6X1.0X25, SLV Part #: T3205067 Required per assembly: 2 ~~$2.57~~ $2.34 - + Add to cart
31	BOLT, HHF, LGHTD, M8, X20, SLV Part #: T3205254 Required per assembly: 2 ~~$1.70~~ $1.54 - + Add to cart
32	INSERT, 8.2, X, 12.2, X, 6.3 Part #: T2310456 Required per assembly: 2 ~~$7.65~~ $6.95 - + Add to cart
33	BOLT, BUT/HD, M5, X, 14, SHLD, SLV Part #: T3331078 Required per assembly: 3 ~~$9.10~~ $8.27 - + Add to cart
34	FLANGED, SLEEVE, 6.4, X, 9, X, 8.5 Part #: T3010159 Required per assembly: 2 ~~$6.07~~ $5.52 - + Add to cart
35	PLASTIC, RIVET, PUSH, RELEASE Part #: T3701150 Required per assembly: 2 ~~$1.01~~ $0.92 - + Add to cart
