Handlebars & Switches replacement parts for Triumph Tiger 800

OEM Parts Triumph Tiger 800 Handlebars & Switches

Handlebars & Switches Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	YOKE, UPPER Part #: T2049750 Required per assembly: 1 ~~$267.06~~ $262.45 - + Add to cart
2	SCREW, CAP/HD, M8X1.25X35, SLV Part #: T3050324 Required per assembly: 4 ~~$4.99~~ $4.53 - + Add to cart
3	NUT, UPPER, YOKE, M27, X, 1.0 Part #: T2040442 Required per assembly: 1 ~~$23.23~~ $22.82 - + Add to cart
4	HANDLEBAR CLAMP KIT Part #: T2048951 Required per assembly: 2 Note: Kit comprises of 1 upper & 1 lower handlebar clamp ~~$96.82~~ $95.15 - + Add to cart
6	SCREW, CAP/HD, M8X1.25X30, SLV Part #: T3050323 Required per assembly: 2 ~~$4.99~~ $4.53 - + Add to cart
7	SCREW, CAP/HD, M10X1.25X60 Part #: T3050153 Required per assembly: 2 ~~$7.80~~ $7.09 - + Add to cart
8	HANDLEBAR, TAPERED, SILVER Part #: T2041007 Required per assembly: 1 ~~$212.07~~ $192.79 - + Add to cart
9	HANDLEBAR END WEIGHT Part #: T2041849 Required per assembly: 2 ~~$31.17~~ $30.63 - + Add to cart
10	SCREW, CSK, M6X1.0X20, SLV Part #: T3330931 Required per assembly: 2 ~~$7.59~~ $6.90 - + Add to cart

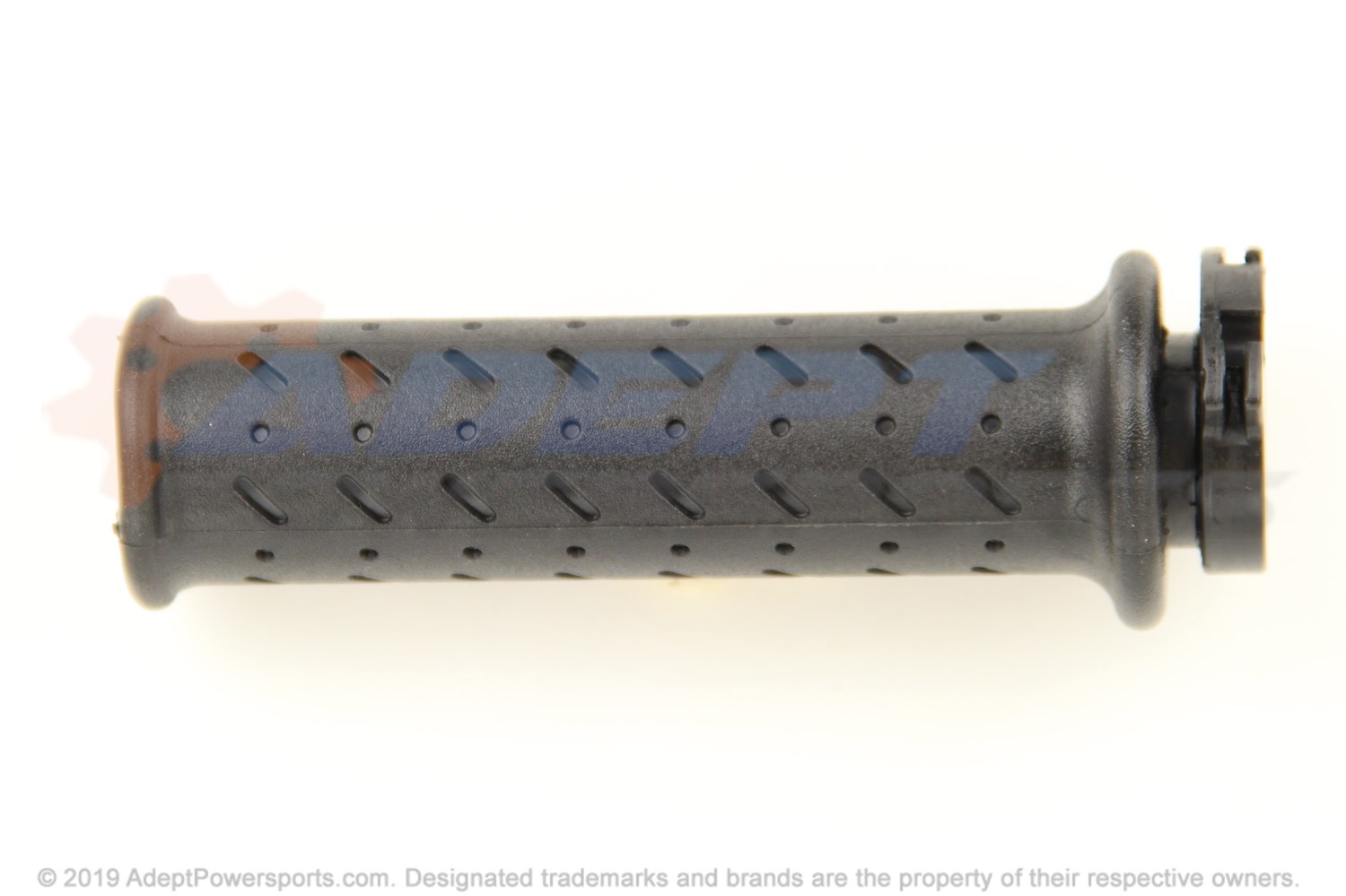

11	GRIP, HANDLEBAR, RH Part #: T2040254 Required per assembly: 1 Note: Includes Throttle Tube ~~$16.81~~ $16.51 - + Add to cart

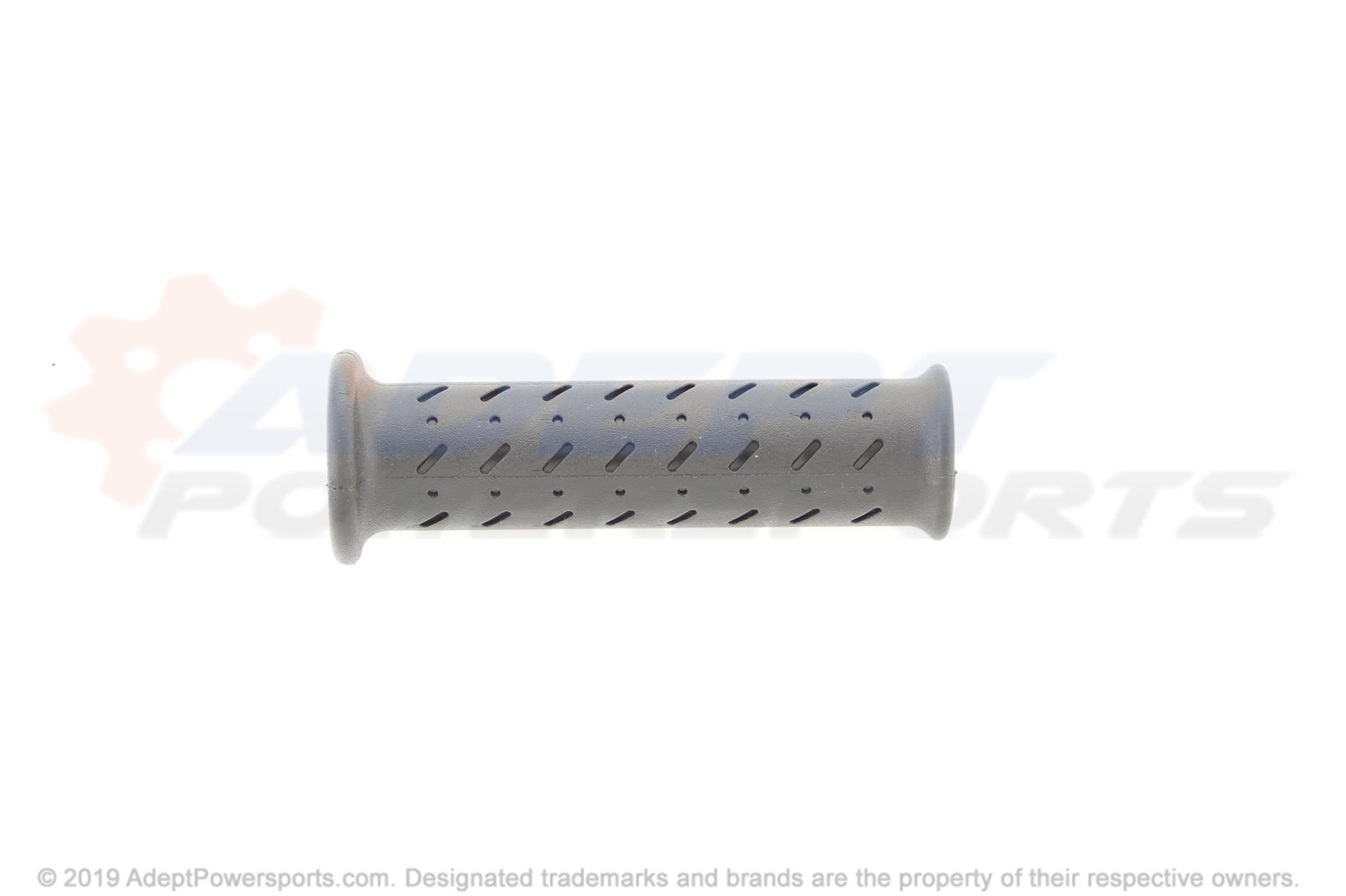

12	GRIP, HANDLEBAR, LH Part #: T2040740 Required per assembly: 1 ~~$16.81~~ $16.51 - + Add to cart
13	SWITCH, ASSEMBLY, LIGHTS, ON, LH Part #: T2504519 Required per assembly: 1 ~~$311.19~~ $305.83 - + Add to cart
14	SCREW, M5, X, 40 Part #: T3331810 Required per assembly: 1 Not Available
15	SCREW, M5, X, 30 Part #: T3331790 Required per assembly: 1 ~~$0.93~~ $0.84 - + Add to cart
16	SWITCH, ASSEMBLY, HANDLEBAR, RH Part #: T2049255 Required per assembly: 1 ~~$226.80~~ $222.90 - + Add to cart
17	SCREW, M5, X, 22 Part #: T3331800 Required per assembly: 2 ~~$1.26~~ $1.15 - + Add to cart
18	THROTTLE, ACTUATOR, TWIN, CABLE Part #: T2040252 Required per assembly: 1 ~~$59.83~~ $58.79 - + Add to cart
19	CABLE, THROTTLE, TWIN Part #: T2049139 Required per assembly: 1 ~~$54.85~~ $53.90 - + Add to cart
20	BAND, RUBBER Part #: T3700212 Required per assembly: 2 ~~$3.45~~ $3.13 - + Add to cart
21	MIRROR, ASSEMBLY, LH Part #: T2060019 Required per assembly: 1 ~~$120.01~~ $117.94 - + Add to cart
22	MIRROR, ASSEMBLY, RH Part #: T2060018 Required per assembly: 1 ~~$120.01~~ $117.94 - + Add to cart
23	WASHER, 27.5, X, 35, X, 0.5 Part #: T3551551 Required per assembly: 1 ~~$1.87~~ $1.70 - + Add to cart
