Electrical System replacement parts for Triumph Tiger 900 Bond Edition

OEM Parts Triumph Tiger 900 Bond Edition Electrical System

Electrical System Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	MAIN HARNESS Part #: T2501955 Required per assembly: 1 ~~$783.58~~ $770.09 - + Add to cart
2	FUSE, MINI, 5A Part #: T2501305 Required per assembly: 3 ~~$4.99~~ $4.53 - + Add to cart
3	FUSE, MINI, 10A Part #: T2501310 Required per assembly: 2 ~~$4.99~~ $4.53 - + Add to cart
4	FUSE, MINI, 15A Part #: T2501315 Required per assembly: 2 ~~$4.99~~ $4.53 - + Add to cart
5	FUSE, MINI, 20A Part #: T2501320 Required per assembly: 4 ~~$4.99~~ $4.53 - + Add to cart
6	FUSE, MINI, 25A Part #: T2501325 Required per assembly: 3 ~~$4.99~~ $4.53 - + Add to cart
7	SENSOR, AIR, TEMPERATURE Part #: T1290088 Required per assembly: 1 ~~$59.95~~ $58.91 - + Add to cart
8	SCREW, CAP/HD, M5X0.8X16, SLV Part #: T3050342 Required per assembly: 1 ~~$2.99~~ $2.72 - + Add to cart
9	SENSOR, AIR, PRESSURE Part #: T1290975 Required per assembly: 1 ~~$133.79~~ $131.48 - + Add to cart
10	REGULATOR, RECTIFIER, 50A Part #: T1300675 Required per assembly: 1 Not Available

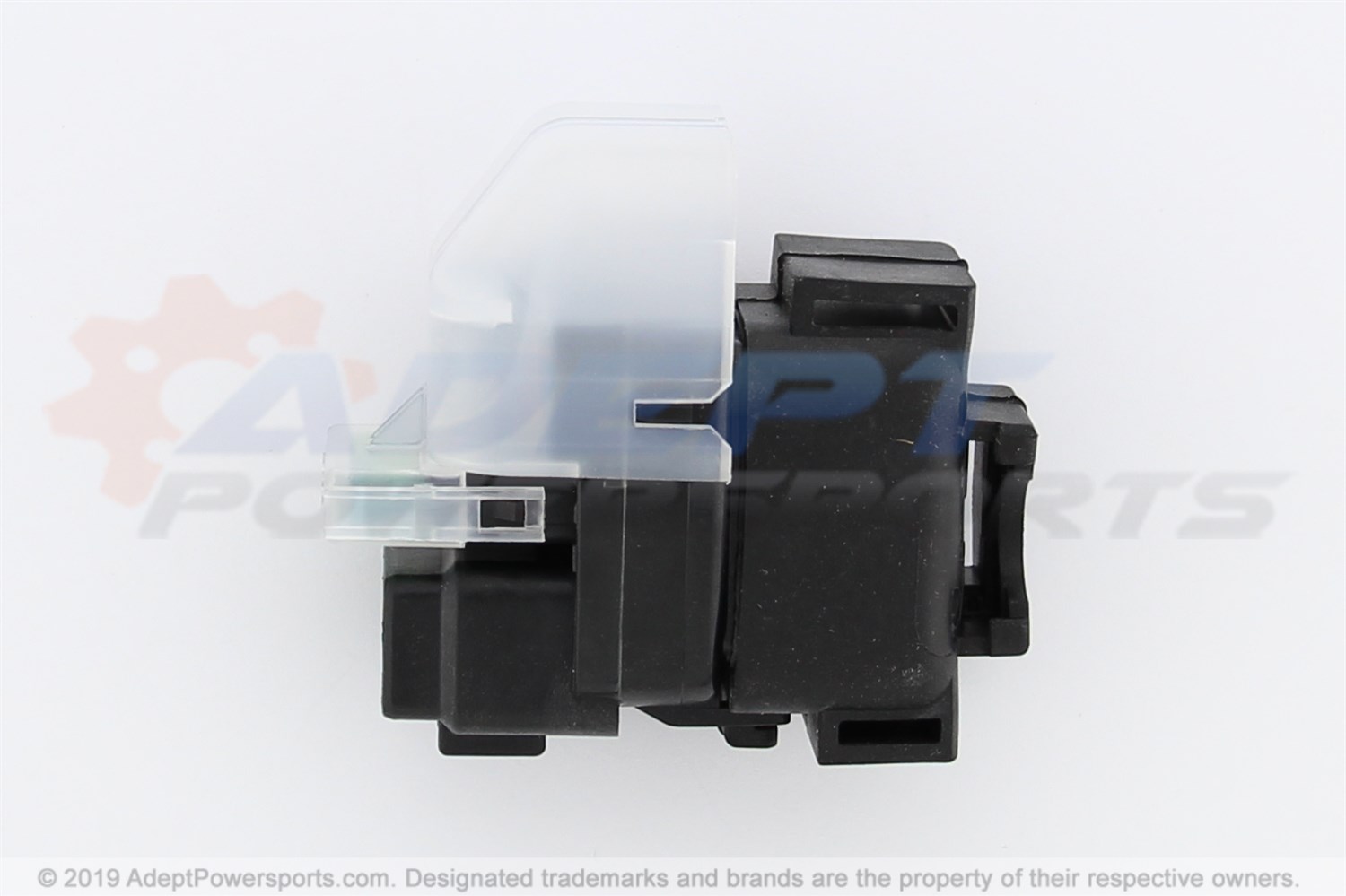

11	STARTER, SOLENOID, FUSED Part #: T1310120 Required per assembly: 1 ~~$57.74~~ $56.75 - + Add to cart
12	FLANGED, LOCK, NUT, M6 Part #: T3350003 Required per assembly: 2 ~~$0.70~~ $0.64 - + Add to cart
13	COVER, REGULATOR, RECTIFIER, CONNECTORS Part #: T2507988 Required per assembly: 1 ~~$11.44~~ $10.40 - + Add to cart
14	FUSE, 30, A Part #: T2500805 Required per assembly: 1 ~~$1.47~~ $1.34 - + Add to cart
16	TWEEZERS, FUSE Part #: T2300883 Required per assembly: 1 ~~$16.66~~ $16.36 - + Add to cart
18	GASKET, USB Part #: T2308282 Required per assembly: 1 ~~$10.65~~ $10.46 - + Add to cart
19	HORN, ASSEMBLY, 440, HZ Part #: T2507002 Required per assembly: 1 Note: All Except IN ~~$49.29~~ $48.43 - + Add to cart
19	HORN, ASSEMBLY, HI-TONE Part #: T2500113 Required per assembly: 1 Note: IN Only ~~$38.72~~ $38.04 - + Add to cart
20	STRAP, BATTERY Part #: T2501789 Required per assembly: 1 ~~$11.11~~ $10.10 - + Add to cart
21	BATTERY Part #: T2501823 Required per assembly: 1 Note: All Except BR - > AW2962 All Expt IN & > AW5770 IN Only Not Available
21	KIT, BATTERY Part #: T2501834 Required per assembly: 1 Note: BR Only ~~$140.03~~ $137.61 - + Add to cart
21	BATTERY, 12V, 10AH Part #: T2503395 Required per assembly: 1 Note: All Except BR - AW2963 > All Expt IN & AW5771 > IN Only Not Available
22	CHARGER, USB, 5V Part #: T2501965 Required per assembly: 1 ~~$37.58~~ $36.92 - + Add to cart
23	EARTH LEAD Part #: T2503563 Required per assembly: 1 Note: All Except BR - AW2963 > All Expt IN & AW5771 > IN Only ~~$14.81~~ $14.55 - + Add to cart
23	EARTH LEAD Part #: T2502042 Required per assembly: 1 Note: All Except BR - > AW2962 All Expt IN & > AW5770 IN Only ~~$9.99~~ $9.08 - + Add to cart
24	BATTERY POSITIVE LEAD Part #: T2502044 Required per assembly: 1 Note: All Except BR - > AW2962 All Expt IN & > AW5770 IN Only ~~$33.23~~ $32.64 - + Add to cart
24	BATTERY POSITIVE LEAD Part #: T2503558 Required per assembly: 1 Note: All Except BR - AW2963 > All Expt IN & AW5771 > IN Only ~~$33.23~~ $32.64 - + Add to cart
25	P-CLIP, 8MM, I.D. Part #: T3700192 Required per assembly: 1 ~~$10.30~~ $10.12 - + Add to cart
28	COVER, USB, RUBBER Part #: T2502507 Required per assembly: 1 ~~$5.97~~ $5.42 - + Add to cart
29	SOCKET, AUXIARY, POWER Part #: T2505075 Required per assembly: 2 ~~$55.43~~ $54.46 - + Add to cart
30	SWITCH, HEATED, SEAT Part #: T2505150 Required per assembly: 1 ~~$138.78~~ $126.16 - + Add to cart
31	CHASSIS CONTROL UNIT Part #: T2505562 Required per assembly: 1 ~~$2,243.63~~ $2,205.03 - + Add to cart
33	JACKET, CCU Part #: T2505567 Required per assembly: 1 ~~$13.55~~ $13.31 - + Add to cart
36	COVER, ECU, MOULDING Part #: T2505569 Required per assembly: 1 ~~$21.44~~ $21.06 - + Add to cart
37	RELAY, ULTRA, MICRO, ISO, 280 Part #: T2507729 Required per assembly: 1 ~~$7.92~~ $7.20 - + Add to cart
38	SUBHARNESS, ENGINE Part #: T2507820 Required per assembly: 1 ~~$86.24~~ $84.75 - + Add to cart
39	INERTIAL MEASUREMENT UNIT Part #: T2508035 Required per assembly: 1 ~~$431.44~~ $424.01 - + Add to cart
40	CARRIER, IMU Part #: T2508950 Required per assembly: 1 ~~$35.12~~ $34.50 - + Add to cart
41	BLUETOOTH UNIT Part #: T2508989 Required per assembly: 1 ~~$345.16~~ $339.22 - + Add to cart
42	JACKET, BLUETOOTH, UNIT Part #: T2508990 Required per assembly: 1 ~~$12.58~~ $12.35 - + Add to cart
43	COVER, THROTTLE, BODY, CONNECTOR Part #: T2509669 Required per assembly: 1 ~~$6.84~~ $6.22 - + Add to cart
44	FLANGED, SLEEVE, 6.4, X, 9.6, X, 13.4 Part #: T3010710 Required per assembly: 4 ~~$4.32~~ $3.93 - + Add to cart
45	GROMMET, CASTELLATED Part #: T3020601 Required per assembly: 4 ~~$4.22~~ $3.83 - + Add to cart
46	BOLT, HHF, LGHTD, M8, X20, SLV Part #: T3205254 Required per assembly: 1 ~~$1.70~~ $1.54 - + Add to cart
47	BOLT, HHF, LGHTD, M6X1.0X8, SLV Part #: T3205077 Required per assembly: 2 ~~$5.13~~ $4.66 - + Add to cart
48	SCREW, BUT/HD, M5X0.8X14, SLV Part #: T3330943 Required per assembly: 2 ~~$5.18~~ $4.71 - + Add to cart
49	BOLT, BUT/HD, SKT, M6, X, 16, S/S Part #: T3331010 Required per assembly: 2 ~~$4.51~~ $4.10 - + Add to cart
50	SCREW, PAN/HD, TX, M6X1.0X25, ENC Part #: T3331041 Required per assembly: 2 ~~$1.10~~ $1.00 - + Add to cart
51	SCREW, S/TAP, TORX, 5, X, 20 Part #: T3331422 Required per assembly: 1 ~~$2.75~~ $2.50 - + Add to cart
53	CABLE TIE Part #: T3700015 Required per assembly: 2 ~~$0.93~~ $0.84 - + Add to cart
54	BAND, RUBBER Part #: T3700212 Required per assembly: 2 ~~$3.45~~ $3.13 - + Add to cart
57	HEATSHIELD, RUBBER Part #: T2505828 Required per assembly: 1 Note: Not Illustrated ~~$30.70~~ $30.16 - + Add to cart
58	TOLL GATE FLYLEAD Part #: T2509847 Required per assembly: 1 Note: JP Only ~~$24.99~~ $24.55 - + Add to cart
59	RUBBER PAD Part #: T2503398 Required per assembly: 2 Note: All Except BR - AW2963 > All Expt IN & AW5771 > IN Only ~~$3.13~~ $2.85 - + Add to cart
