Handguards replacement parts for Triumph Tiger XCA

OEM Parts Triumph Tiger XCA Handguards

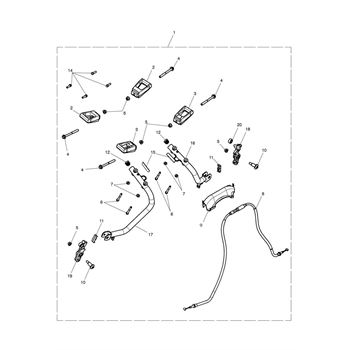

Handguards Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HANDGUARD, MOULDING, LH Part #: T2308505 Required per assembly: 1 $50.41 $49.53 - + Add to cart
2	HANDGUARD, MOULDING, RH Part #: T2308506 Required per assembly: 1 $50.41 $49.53 - + Add to cart
3	SPACER, HANDGUARD, KNURLED Part #: T2308477 Required per assembly: 2 $9.22 $8.38 - + Add to cart
4	SPACER, CSK Part #: T2308627 Required per assembly: 2 $9.22 $8.38 - + Add to cart
5	SCREW, CSK, SKT, M6, X, 40, ENC Part #: T3331890 Required per assembly: 2 $4.37 $3.98 - + Add to cart
6	BRACKET, HANDGUARD, LH Part #: T2306724 Required per assembly: 1 $19.55 $19.20 - + Add to cart
7	BRACKET, HANDGUARD, RH Part #: T2306728 Required per assembly: 1 $20.51 $20.15 - + Add to cart
8	SCREW, PAN/HD, TX, M6X1.0X12, ENC Part #: T3331042 Required per assembly: 2 $1.42 $1.29 - + Add to cart
9	BOLT, PIVOT, CLUTCH Part #: T2309213 Required per assembly: 1 $11.13 $10.93 - + Add to cart
10	BOLT, PIVOT, M6, DIA, 7.9 Part #: T2021568 Required per assembly: 1 $11.28 $11.08 - + Add to cart
11	SLEEVE, 8.2, X, 11.0, X, 2.3 Part #: T2309027 Required per assembly: 1 $11.98 $11.76 - + Add to cart
12	FLANGED, LOCK, NUT, M6 Part #: T3350003 Required per assembly: 1 $0.68 $0.62 - + Add to cart
