Fuel Pump And Filter replacement parts for Triumph TT600

OEM Parts Triumph TT600 Fuel Pump And Filter

Fuel Pump and Filter Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PLATE, FUEL, PUMP, ASSEMBLY Part #: T1241085 Required per assembly: 1 Not Available
2	FUEL, PUMP, EFI Part #: T1240911 Required per assembly: 1 ~~$264.04~~ $259.49 - + Add to cart
3	WIE, TIE, TWIST, 5.0, ID Part #: T3350200 Required per assembly: 1 Not Available
4	STRAP, RETAINING, FUEL, PUMP Part #: T1240990 Required per assembly: 1 ~~$13.50~~ $13.26 - + Add to cart
5	BOLT, H/HD, M4X0.7X16, SLV Part #: T3332130 Required per assembly: 1 ~~$0.59~~ $0.54 - + Add to cart
6	CUSHION, FUEL, PUMP Part #: T1247557 Required per assembly: 1 ~~$9.50~~ $8.64 - + Add to cart
7	'O', RING, 112.0, ID, DIA, 5.3 Part #: T3600048 Required per assembly: 1 ~~$5.67~~ $5.15 - + Add to cart
8	FUEL FILTER Part #: T1240850 Required per assembly: 1 ~~$63.03~~ $60.13 - + Add to cart
9	FUEL, HOSE, 45MM Part #: T3620395 Required per assembly: 3 ~~$10.39~~ $9.45 - + Add to cart
10	PIPE, FUEL, PUMP, TO, FILTER Part #: T1240975 Required per assembly: 1 Note: > 156332 Fuel pump to filter Not Available
10	PIPE, FUEL, PUMP, TO, FILTER Part #: T1240995 Required per assembly: 1 Note: 156333 > Fuel pump to filter Not Available
11	CLIP, HOSE, DIA, 12.5 Part #: T3700089 Required per assembly: 6 ~~$4.22~~ $3.83 - + Add to cart

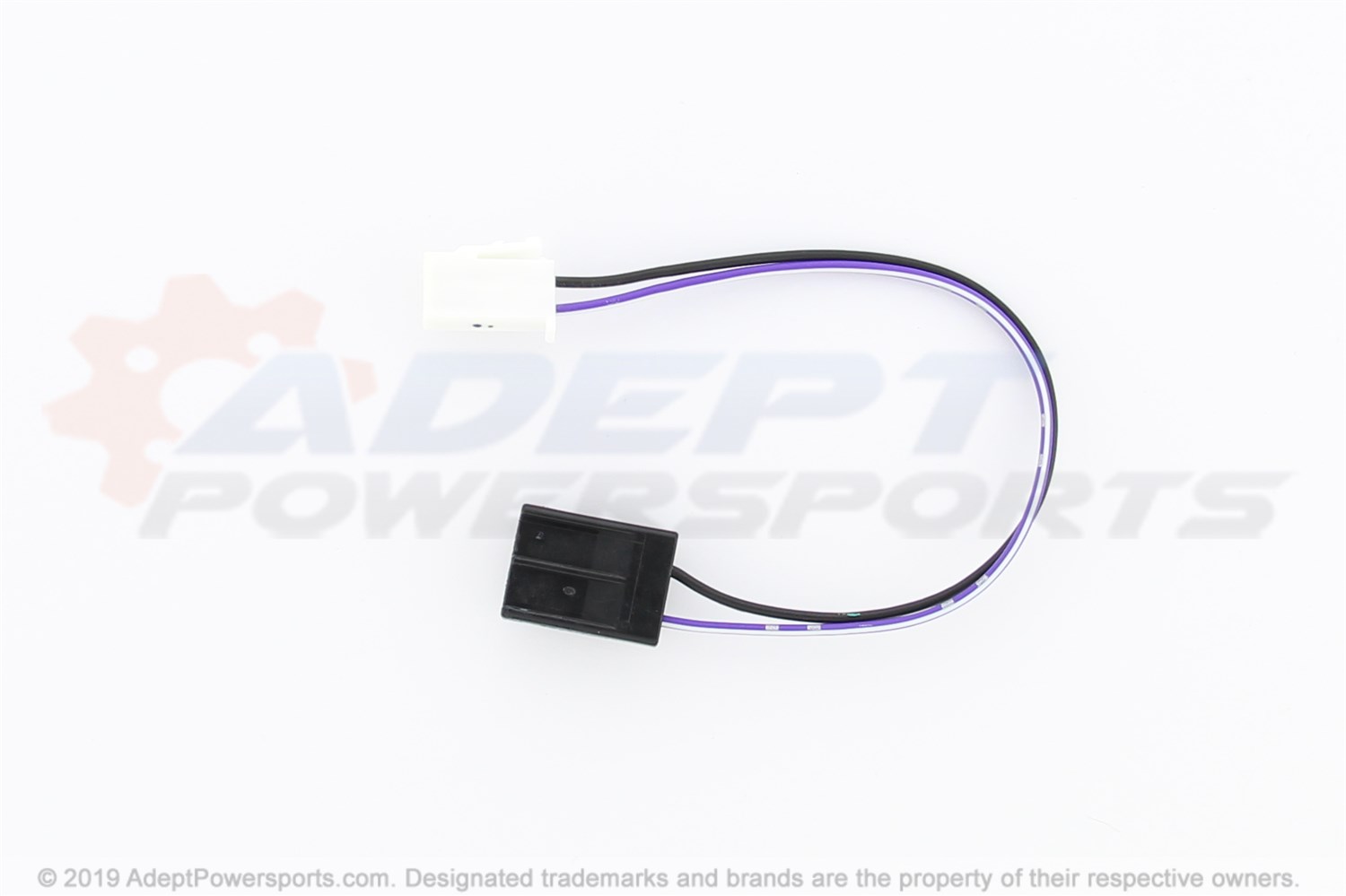

12	FUEL PUMP FLY LEAD Part #: T1240847 Required per assembly: 1 ~~$22.18~~ $21.79 - + Add to cart
13	SCREW, CAP/HD, M6X1X12, ENC, RAW Part #: T3051062 Required per assembly: 1 ~~$1.54~~ $1.40 - + Add to cart
14	FUEL, SENSOR, LOW, LEVEL, WARNING Part #: T2400645 Required per assembly: 1 Note: Fuel low level warning ~~$223.57~~ $219.72 - + Add to cart
15	WASHER M5X15X1.6 Part #: T3551178 Required per assembly: 6 ~~$1.01~~ $0.92 - + Add to cart
16	LOCKNUT M5 Part #: T3350010 Required per assembly: 6 Note: M5 ~~$2.36~~ $2.15 - + Add to cart
17	CONNECTOR, DRY, BREAK, FEMALE, RED Part #: T1240858 Required per assembly: 1 Note: Dry break - Female ~~$52.81~~ $16.79 - + Add to cart
18	FEMALE DRY BREAK CONNECTORS Part #: T1240868 Required per assembly: 1 Note: Dry break - Male ~~$51.92~~ $51.01 - + Add to cart
19	O'RING Part #: T3600056 Required per assembly: 1 ~~$9.48~~ $8.62 - + Add to cart
20	ELEC, CONN, 4-WAY, FUEL, WAY Part #: T1240970 Required per assembly: 1 Note: PART NO LONGER AVAILABLE Not Available
