Carburetor replacement parts for 1960-1966 BMW R27 (T27)

OEM Parts Bmw 1960-1966 Bmw R27 (T27) Carburetor

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	CARBURETOR Part #: 13110039005 Required per assembly: 1 Not Available
02	THREADED RING Part #: 13110039220 Required per assembly: 1 Currently Not Available
03	ADJUSTER Part #: 13110039179 Required per assembly: 1 Currently Not Available
03	ADJUSTER Part #: 13110039178 Required per assembly: 1 Currently Not Available
04	NUT Part #: 13110039182 Required per assembly: 1 Currently Not Available
04	HEX NUT (TO 06/86) Part #: 32731236644 Required per assembly: 1 Note: FG 09/78 R100/7* Currently Not Available
06	NOZZLE NEEDLE Part #: 13110039274 Required per assembly: 1 Currently Not Available
07	SLUICE VALVE SPRING Part #: 13110039167 Required per assembly: 1 Currently Not Available
08	PISTON Part #: 13110039226 Required per assembly: 1 Currently Not Available
09	GASKET Part #: 13110042145 Required per assembly: 1 Currently Not Available
10	GASKET Part #: 13110042145 Required per assembly: 1 Currently Not Available
12	SCREW Part #: 13111336968 Required per assembly: 1 Currently Not Available
13	CLAMP RING Part #: 13110039231 Required per assembly: 1 Not Available
14	NUT Part #: 13111336969 Required per assembly: 1 Currently Not Available
15	WAVE WASHER - B8 Part #: 07119932093 Required per assembly: 2 Currently Not Available
16	HEX BOLT - M8X35 Part #: 07119913676 Required per assembly: 2 Currently Not Available
17	NUT Part #: 13110039184 Required per assembly: 1 Not Available
18	SCREW Part #: 13110039180 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 13110039181 Required per assembly: 1 Not Available
19	CAP Part #: 13110039185 Required per assembly: 1 Not Available
20	SLEEVE Part #: 13110039183 Required per assembly: 1 Not Available
21	SPRING Part #: 13110039171 Required per assembly: 1 Currently Not Available
22	ADJUSTER Part #: 13110039282 Required per assembly: 1 Currently Not Available
23	IDLING JET - 35 Part #: 13110039137 Required per assembly: 1 Currently Not Available
24	GASKET Part #: 13110042126 Required per assembly: 1 Currently Not Available
25	SCREW PLUG Part #: 13110039196 Required per assembly: 1 Currently Not Available
27	FLOAT NEEDLE Part #: 13110039188 Required per assembly: 1 Currently Not Available
28	HOSE CONNECTOR Part #: 13110039191 Required per assembly: 1 Currently Not Available
30	SCREW Part #: 13110039192 Required per assembly: 1 Currently Not Available
32	MAIN JET - 115 Part #: 13110039245 Required per assembly: 1 Currently Not Available

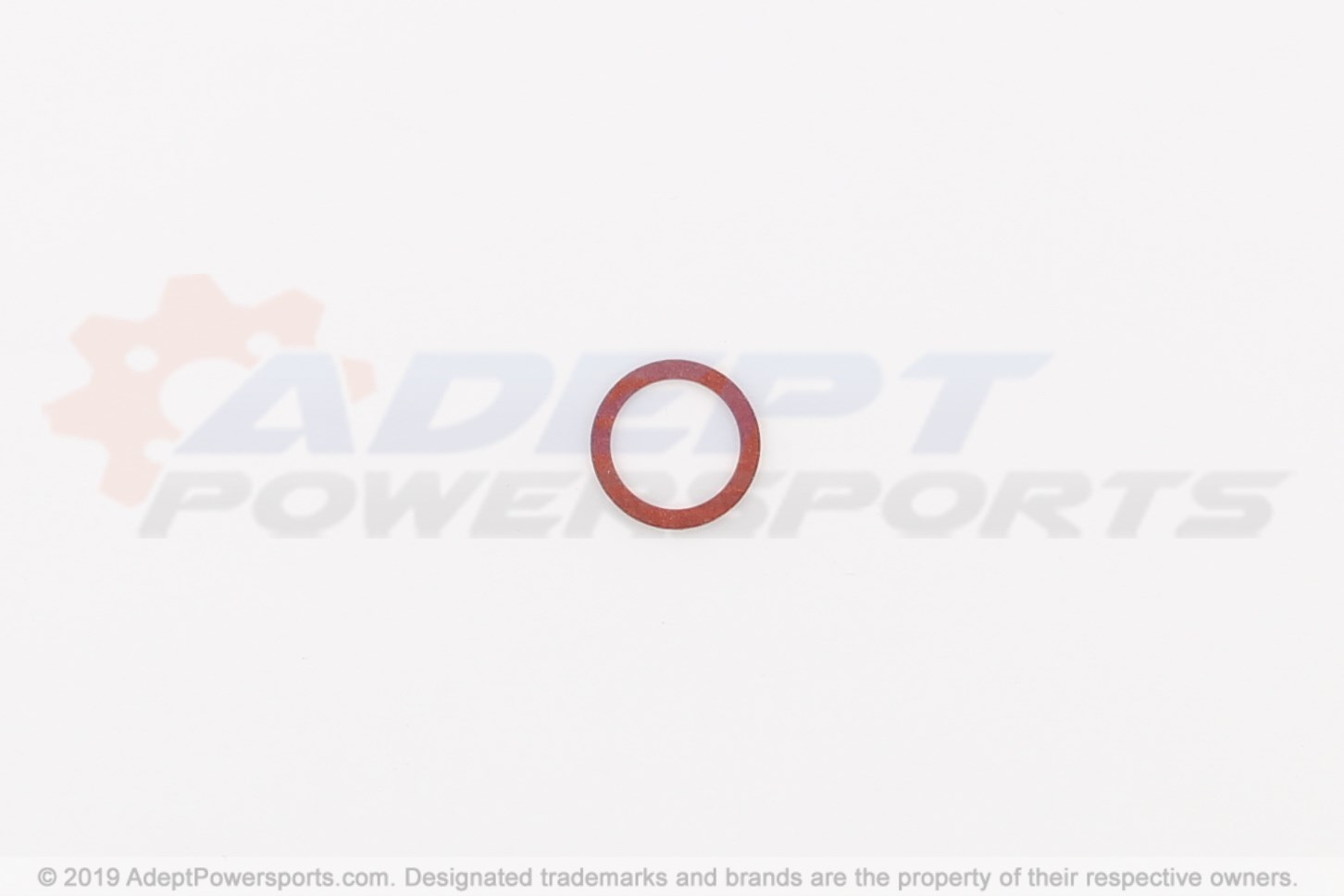

33	GASKET Part #: 13110042130 Required per assembly: 1 $1.87 $1.40 - + Add to cart
34	SCREW Part #: 13110039192 Required per assembly: 1 Currently Not Available
35	ACCELERATOR PUMP Part #: 13110039290 Required per assembly: 1 Currently Not Available
36	MAIN JET - 125 Part #: 13110039292 Required per assembly: 1 Currently Not Available
37	SCREW PLUG Part #: 13110039291 Required per assembly: 1 Currently Not Available
38	GASKET Part #: 13110042148 Required per assembly: 1 Currently Not Available
40	RUBBER GROMMET Part #: 13720042161 Required per assembly: 1 Currently Not Available
41	HOSE CLAMP - L42-48 Part #: 07129952119 Required per assembly: 2 $3.71 $2.79 - + Add to cart
41	HOSE CLAMP Part #: 13119952119 Required per assembly: 2 Not Available
43	FLOAT Part #: 13110039187 Required per assembly: 1 Note: 7 G Currently Not Available
43	FLOAT Part #: 13110039186 Required per assembly: 1 Note: 11 G Currently Not Available
44	GASKET Part #: 13110042150 Required per assembly: 1 Currently Not Available
45	HOUSING COVER Part #: 13110039158 Required per assembly: 1 Not Available
46	SCREW Part #: 13110039156 Required per assembly: 2 Currently Not Available
47	COMPRESSION SPRING Part #: 13110039164 Required per assembly: 1 Currently Not Available
48	SPRING WASHER Part #: 13110039193 Required per assembly: 2 Currently Not Available
49	TRIGGER Part #: 13110039161 Required per assembly: 1 Currently Not Available
51	GASKET Part #: 13720043116 Required per assembly: 1 Currently Not Available
52	RUBBER WASHER Part #: 13720010293 Required per assembly: 1 Currently Not Available
53	AIR CLEANER Part #: 13720043002 Required per assembly: 1 Not Available
55	WAVE WASHER - B10-ZN Part #: 07119932112 Required per assembly: 2 Currently Not Available
57	AIR FILTER SCREW - R27 POLIERT Part #: 13720043147 Required per assembly: 1 Currently Not Available
58	SPRING Part #: 13720043001 Required per assembly: 2 Currently Not Available
59	FILTER CARTRIDGE Part #: 13721250391 Required per assembly: 1 Currently Not Available
60	SET: GASKET SET CARBURETTOR Part #: 13115590038 Required per assembly: 1 Currently Not Available
