Right Crankcase Cover replacement parts for 1979 Honda TRAIL 90 (CT90)

OEM Parts Honda 1979 Honda TRAIL 90 (CT90) Right Crankcase Cover

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

002	PROTECTOR, R. Part #: 11335-102-700 Required per assembly: 1 $13.53 $11.28 - + Add to cart

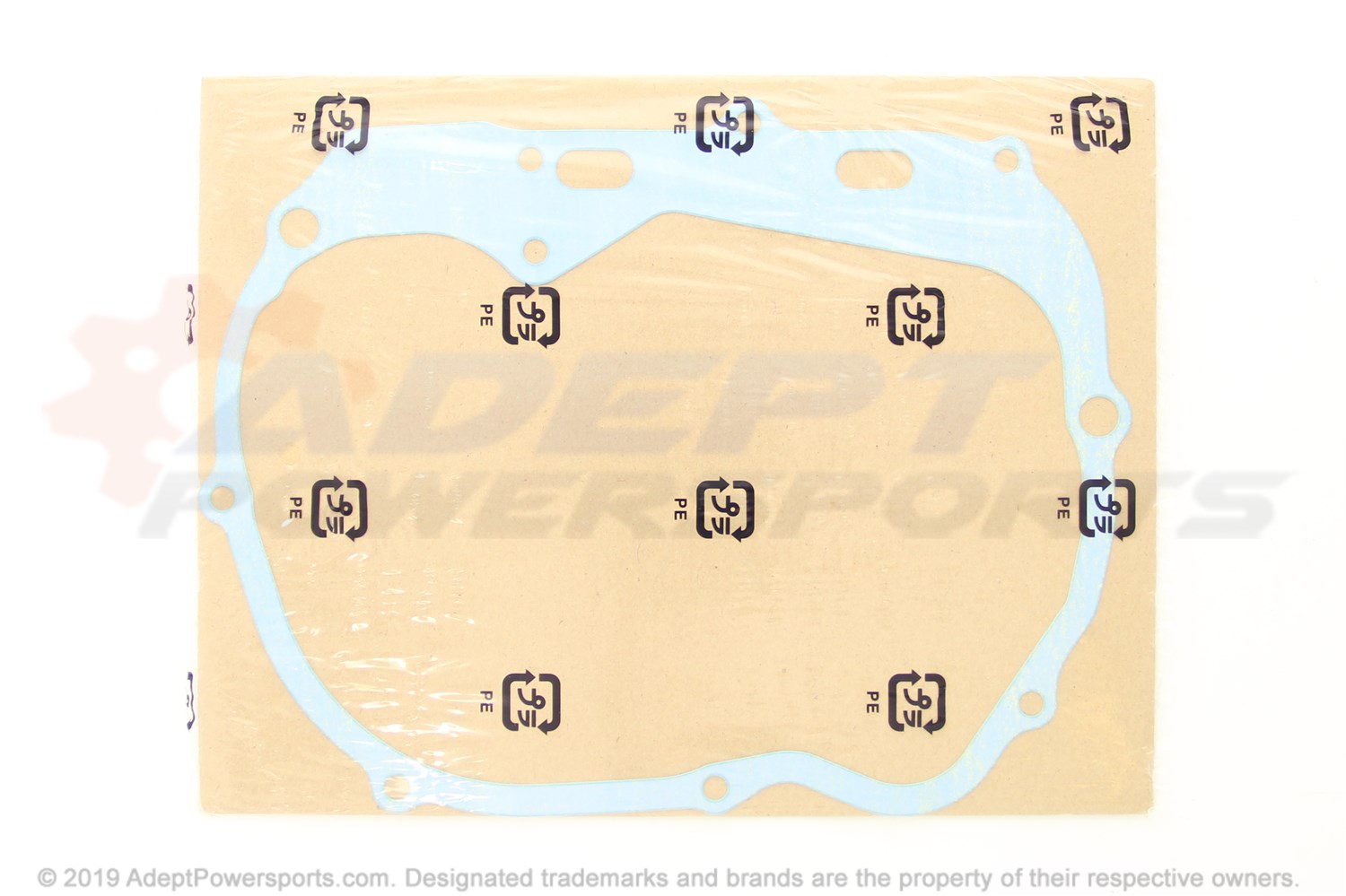

003	GASKET, R. Part #: 11393-028-306 Required per assembly: 1 $14.58 $12.15 - + Add to cart
004	DIPSTICK, OIL Part #: 15650-102-701 Required per assembly: 1 Not Available
005	LEVER, CLUTCH Part #: 22811-046-010 Required per assembly: 1 Not Available
006	PLATE, CLUTCH, CAM Part #: 22820-918-020 Required per assembly: 1 $23.65 $17.04 - + Add to cart
007	SPRING Part #: 22825-046-000 Required per assembly: 1 $3.15 $2.93 - + Add to cart
008	PLATE, CLUTCH, LIFTER Part #: 22830-046-000 Required per assembly: 1 Not Available
009	BOLT, CLUTCH, ADJ. Part #: 22846-046-020 Required per assembly: 1 Not Available
010	RETAINER Part #: 22860-046-000 Required per assembly: 1 $8.45 $7.34 - + Add to cart
011	THROUGH, OIL Part #: 25551-GEL-A80 Required per assembly: 1 $7.23 $6.36 - + Add to cart
012	SPRING, OIL, THROUGH Part #: 25555-046-000 Required per assembly: 1 Not Available
014	WASHER, CLUTCH, ADJ. Part #: 90485-102-701 Required per assembly: 1 Not Available
015	OIL SEAL (14X26X6) Part #: 91251-ZW5-003 Required per assembly: 1 $5.18 $4.71 - + Add to cart
016	O-RING (8X1.7) Part #: 91306-HB3-003 Required per assembly: 1 $2.88 $2.68 - + Add to cart
017	O-RING (18X3) Part #: 91307-035-000 Required per assembly: 1 $4.00 $3.64 - + Add to cart
017	O-RING (18X3) Part #: 91307-KF0-003 Required per assembly: 1 $3.96 $3.60 - + Add to cart
018	SCREW, PAN, (6X20) Part #: 93500-06020-0A Required per assembly: 3 $2.06 $1.90 - + Add to cart
019	SCREW, PAN, (6X32) Part #: 93500-06032-0A Required per assembly: 2 $2.27 $2.10 - + Add to cart
020	NUT, HEX., (8MM) Part #: 94030-08000 Required per assembly: 1 $2.10 $1.94 - + Add to cart
021	PIN, DOWEL, (10X16) Part #: 94301-10160 Required per assembly: 4 $3.50 $3.18 - + Add to cart
