Front Fork replacement parts for 1980 Honda GOLD WING INTERSTATE (GL1100I)

OEM Parts Honda 1980 Honda GOLD WING INTERSTATE (GL1100I) Front Fork

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

002	FORK, ASSEMBLY, R., FR. Part #: 51400-463-013 Required per assembly: 1 Not Available
003	SPRING, A, FR., FORK Part #: 51401-463-003 Required per assembly: 2 Not Available
005	PLATE, SPRING, JOINT Part #: 51403-463-003 Required per assembly: 2 Not Available
008	RING, BACK-UP Part #: 51412-463-003 Required per assembly: 2 $9.30 $8.04 - + Add to cart
009	PLATE, BACK-UP Part #: 51413-463-003 Required per assembly: 2 Not Available

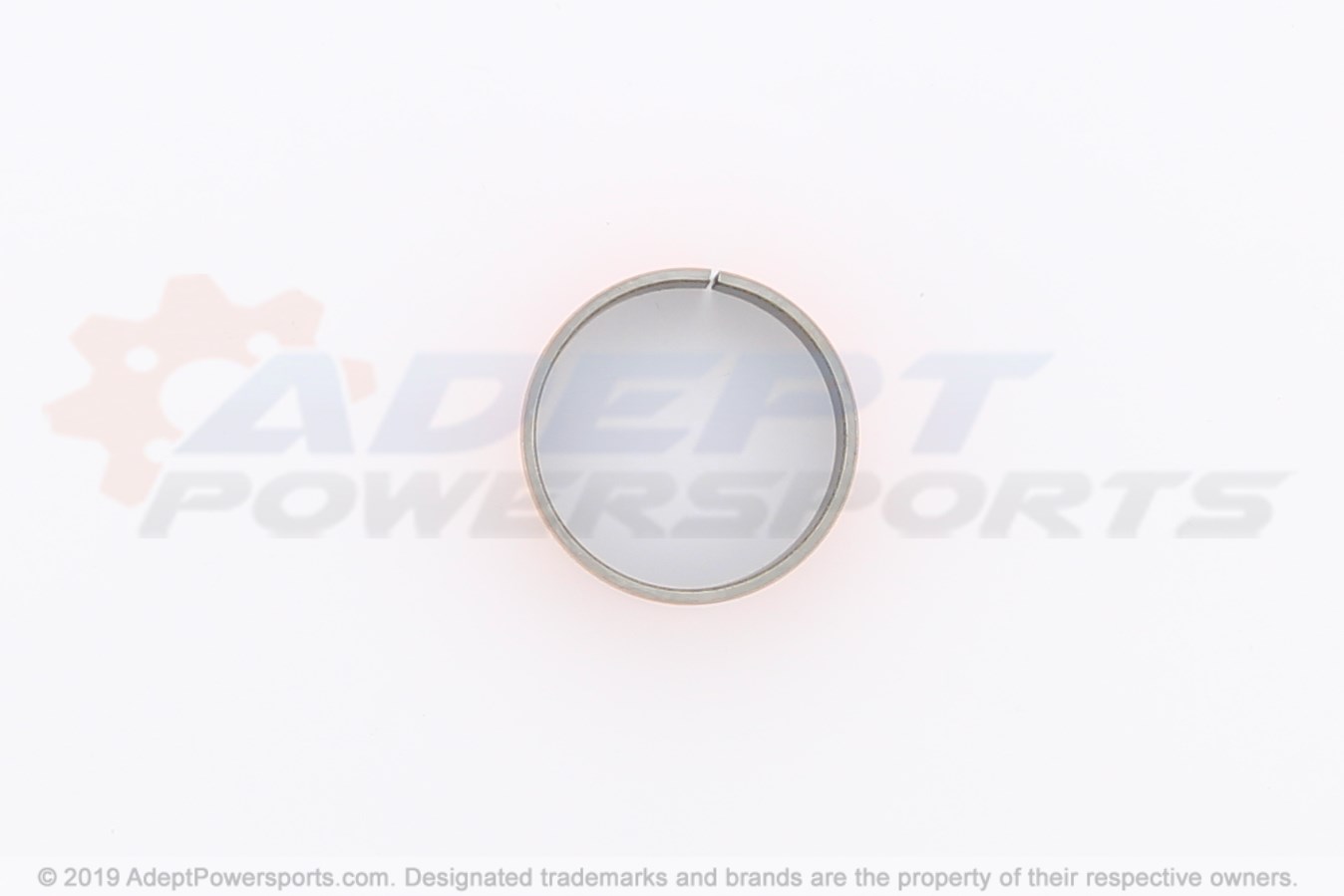

010	BUSH, FORK, PIPE Part #: 51414-463-003 Required per assembly: 2 $18.27 $15.24 - + Add to cart
011	SLEEVE, FORK, PIPE Part #: 51415-463-003 Required per assembly: 1 $21.72 $18.13 - + Add to cart
014	RING, PISTON Part #: 51437-KAZ-003 Required per assembly: 2 $11.59 $9.88 - + Add to cart
016	CIRCLIP (INNER) Part #: 51447-463-003 Required per assembly: 2 $5.44 $4.89 - + Add to cart
017	BOLT, ASSEMBLY, FR., FORK Part #: 51454-463-013 Required per assembly: 1 Not Available
020	VALVE, AIR Part #: 51456-469-013 Required per assembly: 1 $39.05 $32.57 - + Add to cart
021	CAP, ASSEMBLY, AIR, VALVE Part #: 51457-469-000 Required per assembly: 1 Not Available

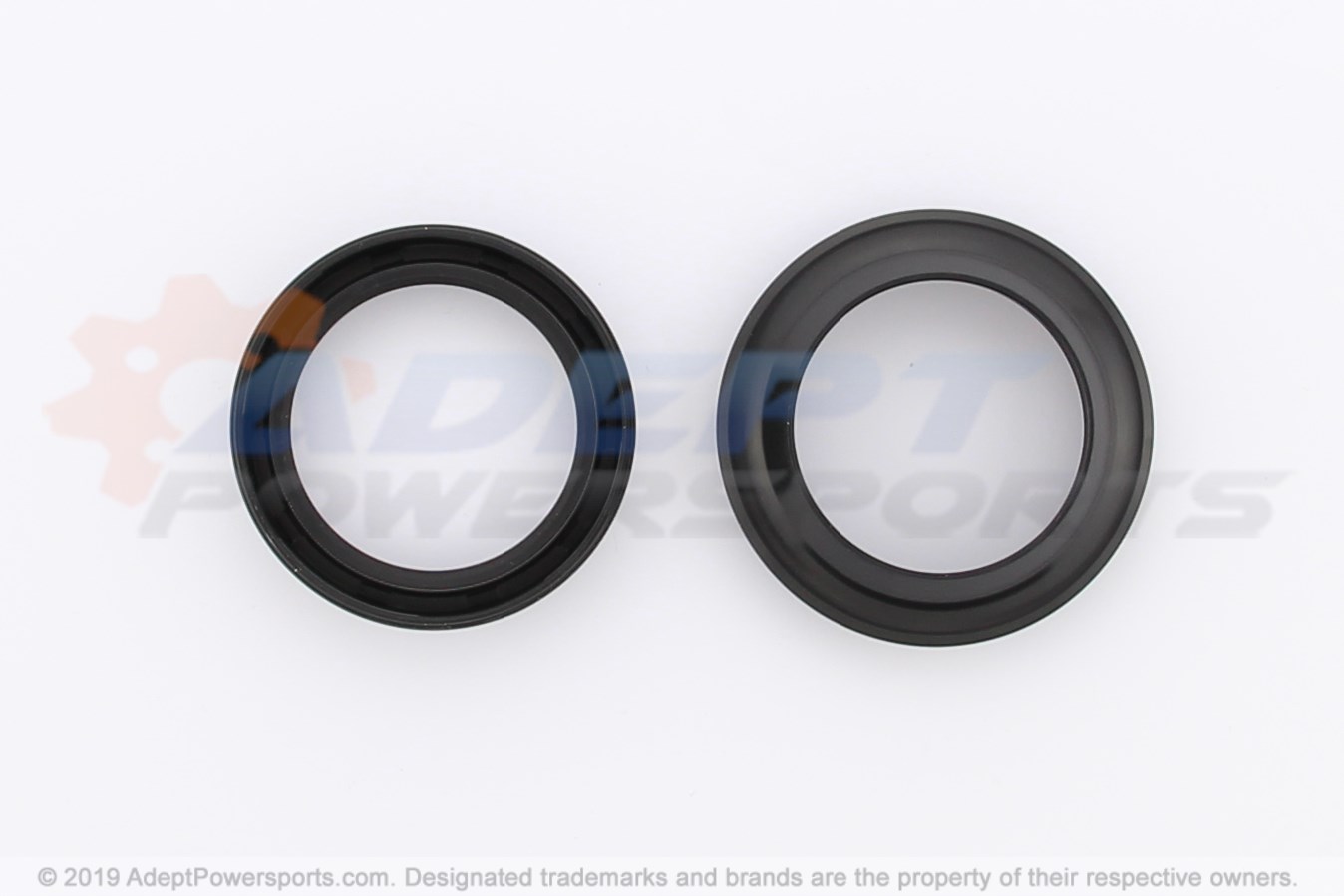

022	SEAL, SET, FR., FORK Part #: 51490-MB9-782 Required per assembly: 2 $44.72 $37.28 - + Add to cart
029	WEIGHT, INERTIA Part #: 51605-463-770 Required per assembly: 1 Not Available
035	CONNECTOR Part #: 53139-463-000 Required per assembly: 1 Not Available
036	HOLDER, CONNECTOR Part #: 61305-463-770 Required per assembly: 1 Not Available
037	LABEL Part #: 87521-463-770 Required per assembly: 1 Not Available
039	BOLT, SOCKET, (8X27) Part #: 90116-383-721 Required per assembly: 2 $6.04 $5.49 - + Add to cart
040	GASKET, FR. Part #: 90543-273-000 Required per assembly: 1 $3.50 $3.18 - + Add to cart
041	WASHER (8MM) Part #: 90544-283-000 Required per assembly: 2 $3.89 $3.54 - + Add to cart

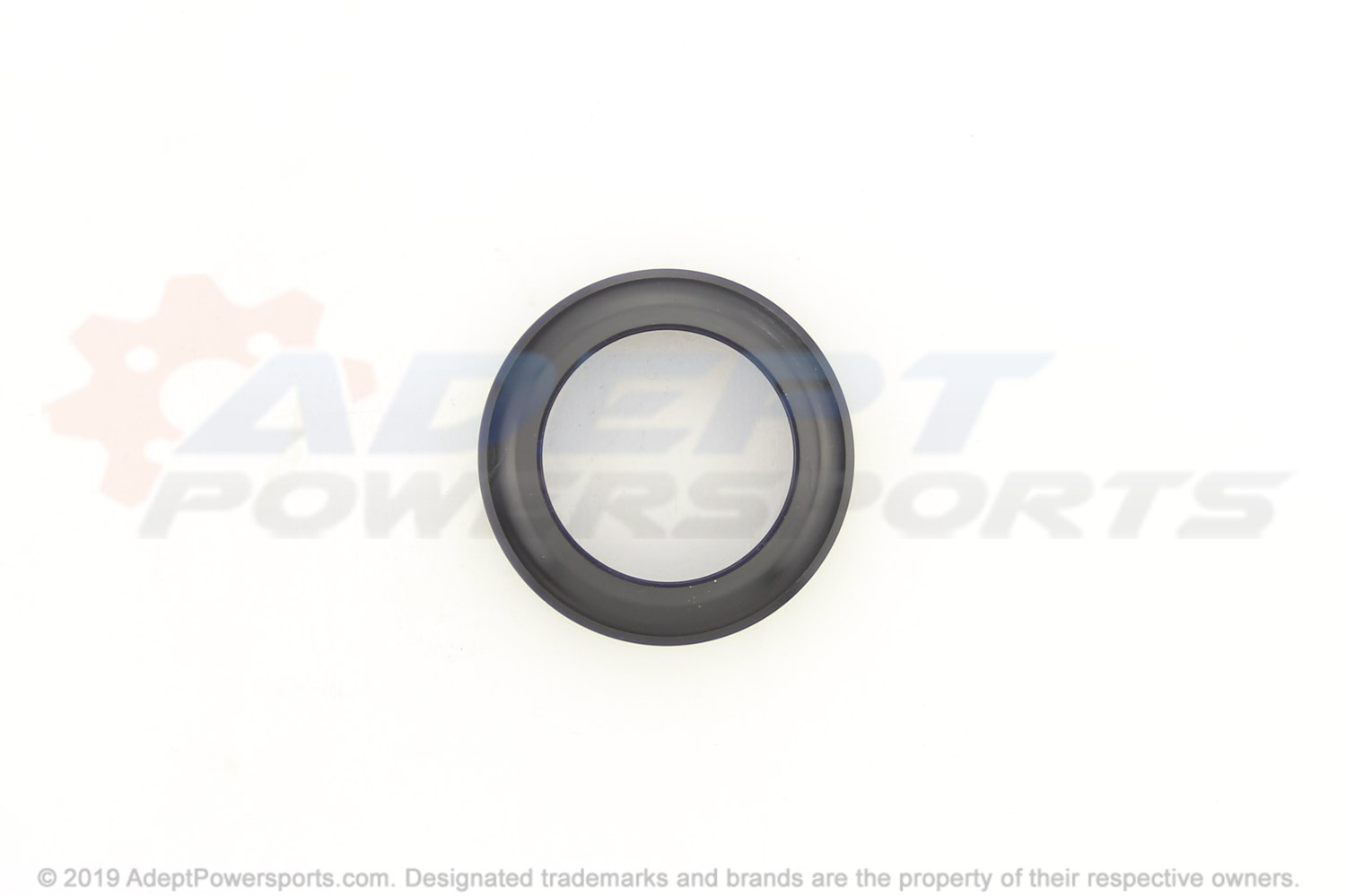

043	DUST SEAL Part #: 91254-463-003 Required per assembly: 2 $26.09 $21.13 - + Add to cart
045	O-RING (5.6X1.9) Part #: 91318-ME5-003 Required per assembly: 1 $5.04 $4.58 - + Add to cart
045	O-RING (5.8X1.9) Part #: 91305-323-000 Required per assembly: 2 $4.08 $3.71 - + Add to cart
046	O-RING (29X3.5) Part #: 91356-463-003 Required per assembly: 2 $5.35 $5.32 - + Add to cart
047	BOLT, HEX., (6X8) Part #: 92101-06008-0A Required per assembly: 1 $2.26 $2.05 - + Add to cart
050	NUT, HEX., (8MM) Part #: 94001-08000-0S Required per assembly: 4 $2.33 $2.16 - + Add to cart
051	NUT, HEX., (10MM) Part #: 94001-10000-0S Required per assembly: 1 $2.45 $2.28 - + Add to cart
052	WASHER, PLAIN, (10MM) Part #: 94102-10000 Required per assembly: 2 $1.80 $1.67 - + Add to cart
053	WASHER, SPRING, (8MM) Part #: 94111-08800 Required per assembly: 4 $2.02 $1.87 - + Add to cart
054	WASHER (10MM) Part #: 94111-10000 Required per assembly: 1 $2.37 $2.19 - + Add to cart
055	BOLT, FLANGE, (8X25) Part #: 95701-08025-00 Required per assembly: 1 $2.78 $2.58 - + Add to cart
