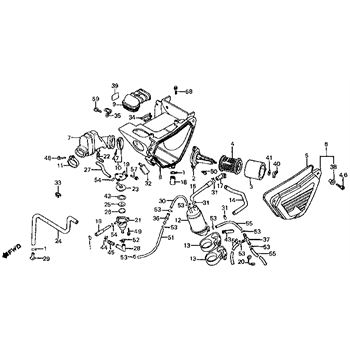

Air Cleaner replacement parts for 1983 Honda XL200R

OEM Parts Honda 1983 Honda XL200R Air Cleaner

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CLIP, BREATHER, TUBE Part #: 15772-292-010 Required per assembly: 1 $4.10 $3.73 - + Add to cart
002	STAY Part #: 17212-KB9-000 Required per assembly: 1 Not Available
003	ELEMENT, AIR, CLEANER Part #: 17213-383-670 Required per assembly: 1 $10.93 $9.75 - + Add to cart
004	TRAP, FLAME Part #: 17214-KB9-000 Required per assembly: 1 Not Available
005	SEAL Part #: 17222-MN4-405 Required per assembly: 1 $8.78 $7.61 - + Add to cart
006	COVER, A/CLNR, HSG Part #: 17220-KB9-000 Required per assembly: 1 Not Available
008	HOUSING, AIR, CLEANER Part #: 17230-KG1-000 Required per assembly: 1 Not Available
008	HOUSING, AIR, CLEANER Part #: 17230-KG1-790 Required per assembly: 1 Not Available
009	DUCT, AIR, CLEANER Part #: 17240-KB9-620 Required per assembly: 1 Not Available
010	BAND (58) Part #: 95018-58250 Required per assembly: 2 $6.92 $6.11 - + Add to cart
010	BAND (58) Part #: 95018-58250 Required per assembly: 1 $6.92 $6.11 - + Add to cart
011	BAND, A, A/CLNR, TUBE Part #: 17255-323-000 Required per assembly: 1 Not Available
012	CANISTER ASSEMBLY Part #: 17300-KF9-661 Required per assembly: 1 Not Available
013	RUBBER Part #: 17301-KF9-660 Required per assembly: 2 Not Available
014	TUBE, A, CANISTER Part #: 17305-KG1-790 Required per assembly: 1 Not Available
016	TUBE, DRAIN Part #: 17356-425-720 Required per assembly: 1 Not Available
018	TUBE, DRAIN Part #: 17358-170-000 Required per assembly: 1 $5.10 $4.64 - + Add to cart
020	CLAMP Part #: 17361-KG1-790 Required per assembly: 1 Not Available
021	BODY Part #: 17361-419-670 Required per assembly: 1 Not Available
023	CAP Part #: 17362-419-670 Required per assembly: 1 Not Available
024	TUBE, DRAIN Part #: 17363-KG1-670 Required per assembly: 1 Not Available
025	HOLDER, ELEMENT Part #: 17363-419-670 Required per assembly: 1 Not Available
026	ELEMENT Part #: 17364-419-000 Required per assembly: 1 Not Available
028	TUBE, A, DRAIN Part #: 17366-428-670 Required per assembly: 1 $9.17 $7.92 - + Add to cart
029	PLUG, BREATHER, TUBE Part #: 17370-382-870 Required per assembly: 1 $5.10 $4.64 - + Add to cart
030	TUBE, BREATHER Part #: 17531-KG1-790 Required per assembly: 1 Not Available
031	CLIP (16MM) Part #: 18534-634-670 Required per assembly: 1 $6.92 $6.60 - + Add to cart
034	CLIP, WIRE Part #: 32985-KC1-830 Required per assembly: 1 Not Available
035	CLAMP, RR. Part #: 35351-KG1-000 Required per assembly: 1 Not Available
036	JOINT, RR. Part #: 38562-SA5-003 Required per assembly: 2 Not Available
037	JOINT, TUBE Part #: 38581-679-003 Required per assembly: 1 $20.45 $18.59 - + Add to cart
038	COLLAR, COVER, SETTING Part #: 83601-357-000 Required per assembly: 3 $4.24 $3.95 - + Add to cart
039	LABEL Part #: 87506-KB9-600 Required per assembly: 1 Not Available
040	NUT Part #: 90325-044-000 Required per assembly: 1 $5.20 $4.73 - + Add to cart
041	WASHER (6MM) Part #: 90416-551-000 Required per assembly: 2 Not Available
042	O-RING (47X1.9) Part #: 91305-419-670 Required per assembly: 1 Not Available
043	CLIP, WIRE, HARNESS Part #: 91406-657-671 Required per assembly: 1 Not Available
045	JOINT, TUBE Part #: 91463-393-780 Required per assembly: 1 $2.79 $2.60 - + Add to cart
046	BOLT (6X16) Part #: 92301-06016-0A Required per assembly: 1 $2.64 $2.45 - + Add to cart
047	SCREW, PAN, (4X25) Part #: 93500-04025-0A Required per assembly: 2 $2.92 $2.71 - + Add to cart
048	SCREW, PAN, (5X20) Part #: 93500-05020-0A Required per assembly: 1 $1.87 $1.73 - + Add to cart
049	SCREW-WASHER (4X16) Part #: 93891-04016-00 Required per assembly: 2 Not Available
050	SCREW, TAP, (6X16) Part #: 93903-36220 Required per assembly: 1 $2.02 $1.87 - + Add to cart
051	BULK HOSE (3.5X3000) Part #: 95001-35003-50M Required per assembly: 1 Not Available
052	CLIP, TUBE, (A16) Part #: 95002-01160 Required per assembly: 1 $4.87 $4.14 - + Add to cart
053	CLIP, TUBE, (B8) Part #: 95002-02080 Required per assembly: 5 $2.79 $2.60 - + Add to cart
054	CLIP, TUBE, (B12.5) Part #: 95002-02130 Required per assembly: 2 $2.18 $2.02 - + Add to cart
055	BULK HOSE (3.5X1000) Part #: 95005-35001-20M Required per assembly: 1 $14.08 $12.80 - + Add to cart
056	BULK HOSE (3.5X1000) Part #: 95005-35001-20M Required per assembly: 1 $14.08 $12.80 - + Add to cart
057	BOLT, FLANGE, (6X12) Part #: 95701-06012-00 Required per assembly: 2 $2.63 $2.44 - + Add to cart
058	BOLT, FLANGE, (6X12) Part #: 95701-06012-08 Required per assembly: 1 $2.67 $2.48 - + Add to cart
058	BOLT, FLANGE, (6X12) Part #: 95701-06012-08 Required per assembly: 1 $2.67 $2.48 - + Add to cart
059	BOLT, FLANGE, (6X16) Part #: 95701-06016-08 Required per assembly: 1 $2.50 $2.32 - + Add to cart
