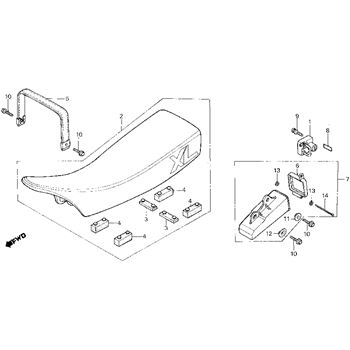

Seat replacement parts for 1983 Honda XL600R

OEM Parts Honda 1983 Honda XL600R Seat

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	HOLDER, ASSEMBLY, HELMET Part #: 50710-MG2-003 Required per assembly: 1 Not Available
002	SEAT ASSEMBLY Part #: 77200-ML6-P00ZA Required per assembly: 1 Not Available
003	RUBBER, SEAT, SETTING Part #: 77204-312-000 Required per assembly: 1 $7.28 - + Add to cart
004	RUBBER, SEAT, SETTING Part #: 77205-GB5-670 Required per assembly: 5 $11.14 - + Add to cart
005	SEAT BELT Part #: 77210-MG2-670ZA Required per assembly: 1 Not Available
006	CAP, TOOL, BOX Part #: 83504-MG2-000 Required per assembly: 1 Not Available
008	LABEL, HELMET, HOLDER Part #: 87511-323-670 Required per assembly: 1 $3.70 - + Add to cart
009	BOLT B (6MM) Part #: 90107-195-860 Required per assembly: 2 Not Available
011	WASHER (6X20) Part #: 90512-300-000 Required per assembly: 4 $6.36 - + Add to cart
012	WASHER (6X9) Part #: 90513-323-000 Required per assembly: 2 ~~$2.83~~ $2.52 - + Add to cart
013	WASHER, PLAIN, (3MM) Part #: 94101-03000 Required per assembly: 2 ~~$1.72~~ $0.91 - + Add to cart
014	PIN, SPLIT, (3.0X50) Part #: 94201-30500 Required per assembly: 1 Not Available
