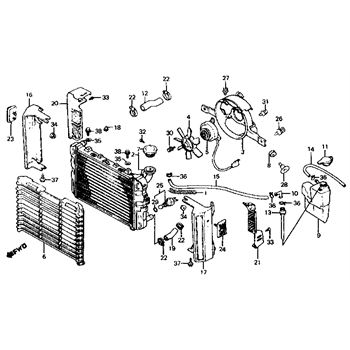

Radiator 84 replacement parts for 1984 Honda MAGNA (VF700C)

OEM Parts Honda 1984 Honda MAGNA (VF700C) Radiator 84

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	SPRING Part #: 17532-404-000 Required per assembly: 2 Not Available
002	RADIATOR Part #: 19100-MB1-305 Required per assembly: 1 Not Available
003	SHROUD Part #: 19015-MB1-872 Required per assembly: 1 Not Available
003	SHROUD Part #: 19015-MB1-013 Required per assembly: 1 Not Available
004	FAN, COOLING Part #: 19020-MB0-013 Required per assembly: 1 Not Available
004	FAN, COOLING Part #: 19020-MB0-702 Required per assembly: 1 Not Available
005	MOTOR, COOLING, FAN Part #: 19030-MB0-405 Required per assembly: 1 Not Available
005	MOTOR, FAN Part #: 19030-MB0-950 Required per assembly: 1 Not Available
007	CAP, RADIATOR Part #: 19045-MZ3-405 Required per assembly: 1 $37.65 $31.39 - + Add to cart
008	RUBBER Part #: 19051-KA4-000 Required per assembly: 2 $5.17 $4.70 - + Add to cart
011	CAP, RESERVE, TANK Part #: 19104-MB0-700 Required per assembly: 1 $14.10 $11.75 - + Add to cart
013	TUBE, LEVEL Part #: 19108-MB0-010 Required per assembly: 1 $13.32 $11.11 - + Add to cart
015	TUBE, RESERVE, TANK Part #: 19109-MB1-000 Required per assembly: 1 Not Available
018	RUBBER Part #: 19113-MB1-870 Required per assembly: 2 $4.80 $4.36 - + Add to cart
021	COVER, L., RR., RADIATOR Part #: 19119-MB1-000 Required per assembly: 1 Not Available
022	CLAMP, WATER, HOSE Part #: 19503-MB1-870 Required per assembly: 2 $14.56 $12.14 - + Add to cart
025	SWITCH, ASSEMBLY, THERMO Part #: 37760-MB4-770 Required per assembly: 1 Not Available
027	BOLT-WASHER (5X8) Part #: 90046-MB0-003 Required per assembly: 2 Not Available
028	BOLT Part #: 90111-MB1-000 Required per assembly: 2 Not Available
029	O-RING (13.5X1.4) Part #: 91307-PH7-660 Required per assembly: 1 $4.07 $3.70 - + Add to cart
030	SCREW-WASHER (4X8) Part #: 93893-04008-08 Required per assembly: 1 $2.37 $2.19 - + Add to cart
031	SCREW-WASHER (5X10) Part #: 93893-05010-08 Required per assembly: 1 $2.37 $2.19 - + Add to cart
032	SCREW, TAPPING, (3X8) Part #: 93901-22180 Required per assembly: 1 $1.95 $1.80 - + Add to cart
033	SCREW, TAP, (5X10) Part #: 93903-35180 Required per assembly: 1 $1.87 $1.73 - + Add to cart
034	NUT, FLANGE, (6MM) Part #: 94050-06080 Required per assembly: 7 Note: Sold in multiples of 5 only $1.73 $1.59 - + Add to cart
035	WASHER, PLAIN, (6MM) Part #: 94101-06200 Required per assembly: 2 $1.75 $1.61 - + Add to cart
036	CLIP, TUBE, (C11) Part #: 95002-70000 Required per assembly: 1 $2.64 $2.45 - + Add to cart
037	BOLT, FLANGE, (6X10) Part #: 95701-06010-00 Required per assembly: 4 $2.29 $2.12 - + Add to cart
038	BOLT, FLANGE, (6X10) Part #: 96001-06010-02 Required per assembly: 2 $2.55 $2.36 - + Add to cart
