Rear Wheel (Model E) replacement parts for 1984 Suzuki LT125

OEM Parts Suzuki 1984 Suzuki LT125 Rear Wheel (Model E)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HUB, REAR Part #: 64110-24311 Required per assembly: 2 Not Available
2	WASHER, HUB Part #: 09160-18015 Required per assembly: 2 $8.03 $7.23 - + Add to cart
3	NUT Part #: 09141-18003 Required per assembly: 2 $5.35 $4.82 - + Add to cart
4	PIN, COTTER Part #: 04111-4040A Required per assembly: 2 Note: PIN, COTTER; $1.70 $1.53 - + Add to cart
5	RIM, WHEEL, INNER Part #: 65312-24301-13T Required per assembly: 2 Not Available
6	RIM, WHEEL, OUTER Part #: 65313-24301-13T Required per assembly: 2 Not Available
7	GASKET, WHEEL, RIM Part #: 55315-24200 Required per assembly: 2 Not Available
8	PLATE, WHEEL Part #: 65317-24301-13T Required per assembly: 4 Not Available
10	NUT, WHEEL, SET Part #: 08316-10107 Required per assembly: 6 Note: MODEL M/N/P $2.97 $2.67 - + Add to cart
11	NUT (CHROME) Part #: 08316-10087 Required per assembly: 6 Note: MODEL V/W/X $2.80 $2.52 - + Add to cart
12	DRUM, REAR, BRAKE Part #: 64120-24401 Required per assembly: 1 $297.77 $267.99 - + Add to cart
13	COVER, DRUM, INNER Part #: 64122-24401 Required per assembly: 1 Not Available
14	COVER, DRUM, OUTER Part #: 64130-24413 Required per assembly: 1 Not Available
15	BOLT Part #: 01550-06127 Required per assembly: 6 $2.88 $2.59 - + Add to cart

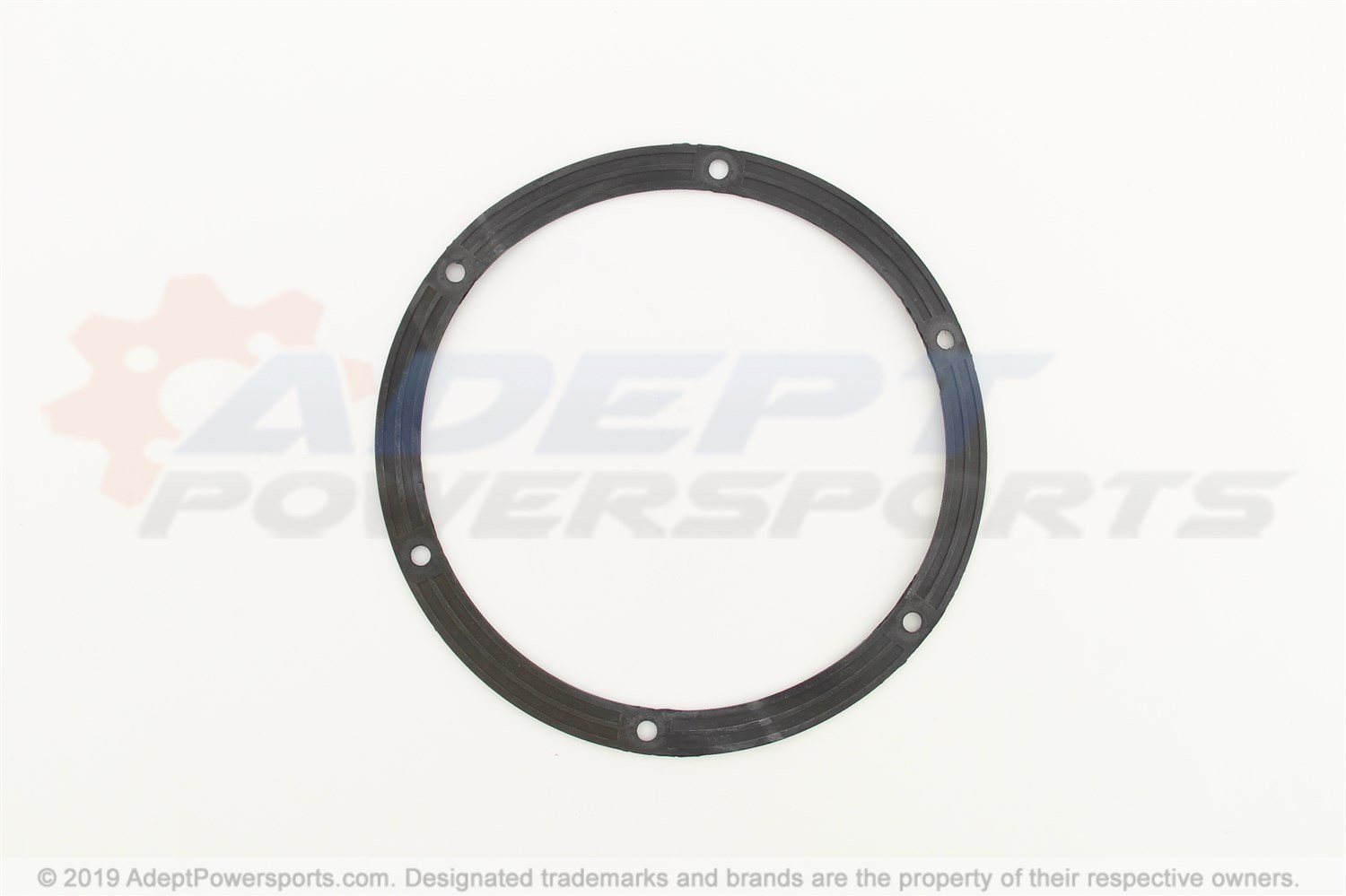

16	PACKING, COVER Part #: 64160-24400 Required per assembly: 1 $24.00 $21.60 - + Add to cart
17	PLUG, BREATHER Part #: 09259-12002 Required per assembly: 2 Not Available
18	CAP, DRAIN Part #: 09250-08001 Required per assembly: 1 Note: PLUG; Not Available
19	HOSE, BREATHER Part #: 09352-70121-00B Required per assembly: 1 $34.56 $31.10 - + Add to cart
20	JOINT Part #: 09367-08001 Required per assembly: 1 $4.39 $3.95 - + Add to cart
21	CLAMP (L:141) Part #: 09407-14401 Required per assembly: 1 Note: CLAMP; $3.97 $3.57 - + Add to cart
22	DUST, SEAL, BRAKE, ANCHOR, PIN Part #: 64233-24400 Required per assembly: 1 Not Available
23	SHOE, SET, REAR, BRAKE Part #: 64400-02830 Required per assembly: 2 $60.13 $51.40 - + Add to cart
24	SPRING, SHOE Part #: 55420-30000 Required per assembly: 2 $5.95 $5.36 - + Add to cart
25	CAM, REAR, BRAKE Part #: 64440-24402 Required per assembly: 1 $22.75 $19.44 - + Add to cart
26	O RING Part #: 64443-24300 Required per assembly: 1 Note: O RING (D:1.7,ID:14.8); $2.25 $2.03 - + Add to cart
28	WASHER Part #: 09160-15048 Required per assembly: 1 $3.23 $2.91 - + Add to cart
29	LEVER, BRAKE, CAM Part #: 64451-24302 Required per assembly: 1 $37.42 $33.68 - + Add to cart
30	BOLT Part #: 01550-06307 Required per assembly: 1 Note: BOLT (CHROME); MODEL V/W/X $3.38 $3.04 - + Add to cart
31	NUT Part #: 08319-31067 Required per assembly: 1 Note: Sold in multiples of 10 only $2.53 $2.28 - + Add to cart
33	PIN Part #: 64231-24400 Required per assembly: 1 Not Available
34	NUT Part #: 08319-31107 Required per assembly: 1 Note: NUT, FR DIFFERENTIAL; $3.38 $3.04 - + Add to cart
35	NIPPLE, GREASE Part #: 08351-2100A Required per assembly: 1 Note: GREASE NIPPLE; $5.98 $5.86 - + Add to cart
37	SPACER Part #: 64731-24200 Required per assembly: 1 Not Available
38	WASHER Part #: 08322-01087 Required per assembly: 3 Note: WASHER, FRONT WHEEL; Sold in multiples of 10 only $2.32 $2.09 - + Add to cart
39	NUT Part #: 08314-31088 Required per assembly: 3 Not Available
40	COTTER, PIN, ROD, END Part #: 04111-2020A Required per assembly: 3 Note: COTTER PIN; $1.53 $1.38 - + Add to cart
41	AXLE, REAR Part #: 64711-24303 Required per assembly: 1 Not Available
42	BEARING Part #: 09262-35032 Required per assembly: 2 Note: BEARING (35X62X14); $63.16 $53.99 - + Add to cart
43	SEAL, DUST Part #: 09283-42011 Required per assembly: 2 Note: OIL SEAL, FINAL DRIVEN, RH; $16.12 $14.51 - + Add to cart
44	DUST, SEAL, INNER Part #: 64729-24400 Required per assembly: 1 Not Available
45	DUST, SEAL, OUTER Part #: 64729-24410 Required per assembly: 1 Not Available
46	NUT, LH Part #: 09140-32001 Required per assembly: 2 Not Available
47	FLANGE, SPROCKET, MOUNTING Part #: 64611-24302 Required per assembly: 1 Not Available
49	SHOCK ABSORBER Part #: 64650-24400 Required per assembly: 4 Not Available
50	SPROCKET, REAR, (NT:49) Part #: 64511-24201 Required per assembly: 1 Not Available
51	BOLT Part #: 09100-10196 Required per assembly: 4 Not Available
52	WASHER Part #: 09169-10017 Required per assembly: 2 Not Available
53	PLATE, SPROCKET Part #: 64512-24300 Required per assembly: 1 Not Available
54	PLATE, SPROCKET Part #: 64513-24300 Required per assembly: 1 Not Available
55	BOLT Part #: 09101-06007 Required per assembly: 4 Not Available
56	LOCK WASHER Part #: 08321-01067 Required per assembly: 4 Note: Sold in multiples of 10 only $2.29 $2.06 - + Add to cart
57	WASHER Part #: 08322-01067 Required per assembly: 8 $2.25 $2.03 - + Add to cart
58	NUT Part #: 09141-06001 Required per assembly: 4 Not Available
59	COTTER PIN Part #: 04111-2015A Required per assembly: 4 $1.53 $1.38 - + Add to cart
61	VALVE, ASSEMBLY, WHEEL Part #: 43130-78030 Required per assembly: 2 Note: VALVE ASSY, WHEEL RIM (TR413); $11.76 $10.58 - + Add to cart
62	CAP, WHEEL, CENTER Part #: 54725-18A00 Required per assembly: 2 $13.28 $11.95 - + Add to cart
