Starter Clutch replacement parts for 1984 Yamaha VIRAGO 1000 (XV1000LC)

OEM Parts Yamaha 1984 Yamaha VIRAGO 1000 (XV1000LC) Starter Clutch

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	STARTER CLUTCH ASSEMBLY Part #: 5A8-15570-00-00 Required per assembly: 1 Not Available
002	CIRCLIP (55X) Part #: 99009-13400-00 Required per assembly: 1 $9.49 $5.72 - + Add to cart
003	SHAFT 1 Part #: 4X7-15521-00-00 Required per assembly: 1 Not Available
004	WHEEL, STARTER, (23T) Part #: 5A8-15524-00-00 Required per assembly: 1 Not Available
005	GEAR, IDLER, 1 Part #: 4X7-15512-00-00 Required per assembly: 1 Not Available
006	GEAR, IDLER, SET Part #: 3LP-W1551-00-00 Required per assembly: 1 Note: Kit replaces WHEEL, STARTER 5A8-15524-00-00 and does not use the spring $344.99 $310.72 - + Add to cart

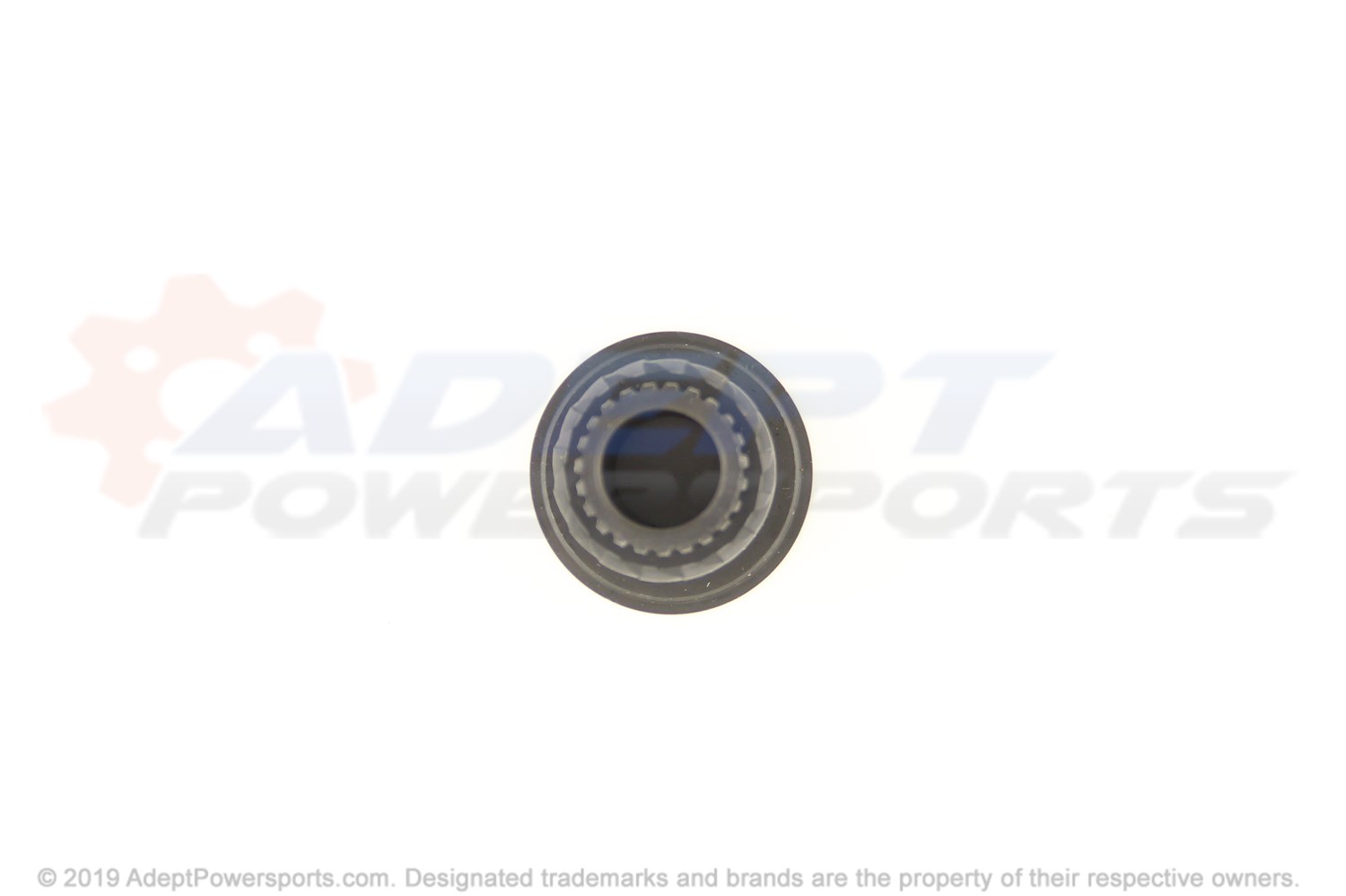

007	COLLAR Part #: 90387-172E5-00 Required per assembly: 2 $45.99 $36.36 - + Add to cart

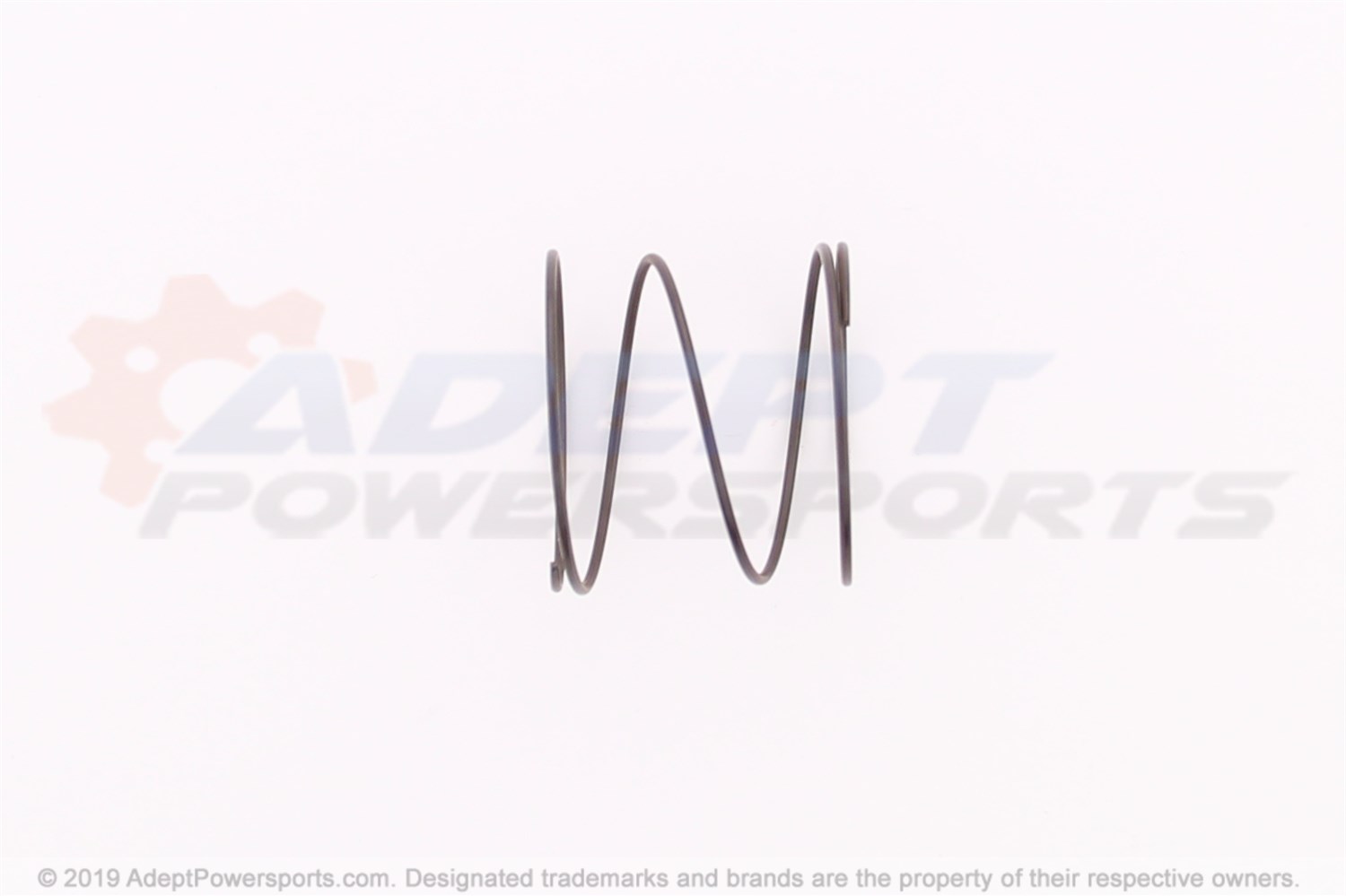

008	SPRING, COMPRESSION Part #: 90501-15636-00 Required per assembly: 1 $18.48 $15.12 - + Add to cart
009	COLLAR Part #: 90387-170E5-00 Required per assembly: 1 $17.48 $13.59 - + Add to cart
010	DRIVE LEVER ASSEMBLY Part #: 5A8-15550-00-00 Required per assembly: 1 Not Available
011	OIL, SEAL, SD-TYPE Part #: 93102-10247-00 Required per assembly: 1 $11.49 $8.94 - + Add to cart
012	LEVER, DRIVE Part #: 5A8-15556-00-00 Required per assembly: 1 Not Available
013	SCREW, COUNTERSUNK Part #: 90151-06013-00 Required per assembly: 1 $10.49 $6.79 - + Add to cart
014	LEVER, DRIVE Part #: 5A8-15556-00-00 Required per assembly: 1 Not Available
015	SPRING, TORSION Part #: 90508-26494-00 Required per assembly: 1 Not Available
016	SCREW, SPEC'L, SHAPE Part #: 90149-08166-00 Required per assembly: 1 $25.98 $19.97 - + Add to cart
017	GASKET Part #: 3EG-15568-00-00 Required per assembly: 1 $11.99 $9.75 - + Add to cart
018	NUT, FLANGE, (7NB) Part #: 95780-06500-00 Required per assembly: 5 $2.95 $1.87 - + Add to cart
